Basic Specifications
Type
Pharmaceutical Packaging Machinery
Computerized
Computerized
Professional Solutions
Why do we offer?
To solve the urgent demand for vaccines, the prefilled syringes labeling system has been upgraded with enhanced performance stability. The S400 model plays a vital role in the massive production of vaccines during special periods.
Range of Application

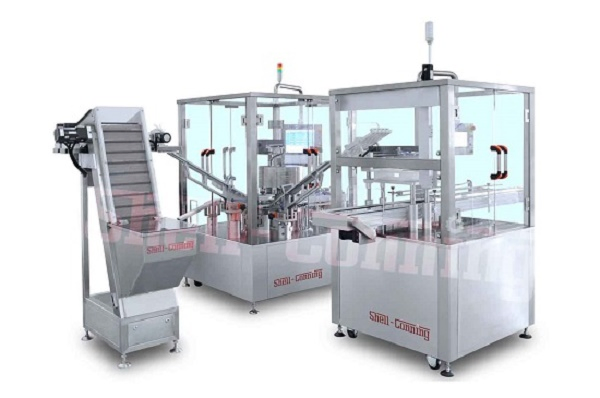

This sophisticated equipment is developed to connect with prefilled syringe systems and facilitate automatic labeling. When integrated with an automatic nest-remover and syringe rod trimmer, it completes:
✔ Needle tube nest-removing
✔ Push rod feeding
✔ Combination booster
✔ Combination torsion bar
✔ Outerwear and labeling
✔ Buffer platform
Control System: Equipped with top-ranking servo control and Germany PLC to ensure the rubber plug does not shift. Includes advanced intelligent visual detectors.
Model Characteristics
- ★ High stability: Production capacity reaches 400bpm.
- ★ Precision tolerance: 0.2~0.5ml gap control.
- ★ Sync functions: Nesting, feeding, screwing, and labeling performed synchronously.
- ★ Build Quality: Sophisticated materials with aviation grade craftwork.
- ★ Versatility: Supports stand-alone or connected operation with optional laser coding and automatic rejection.
Technical Specifications
| S/No. |
Item |
Parameters |
Remark |
| 1 |
Speed |
<=400 pieces per minute |
Related to size and feed speed |
| 2 |
Tube Size |
1-10ml syringe Ø6-20mm |
Parts replaceable for different diameters |
| 3 |
Labeling Accuracy |
±0.5mm |
Excluding paste/label error |
| 4 |
Label Sending Speed |
<=60 meters/minute |
- |
| 5 |
Label Roll |
ID:76mm, OD:350mm |
- |
| 6 |
Label Size |
(L)15-100 (W)10-80 mm |
- |
| 7 |
Power |
220V±5% 50/60Hz 1KW |
- |
| 8 |
Dimensions |
2600mm × 100mm × 1600mm |
For reference only |
Frequently Asked Questions
1. What is the maximum production speed of the S400?
The S400 labeling system can reach a stable production capacity of up to 400 pieces per minute (400bpm), depending on the bottle and label size.
2. What syringe sizes are compatible with this machine?
It is designed for 1-10ml syringes with diameters ranging from Ø6mm to 20mm. Specific parts can be replaced to accommodate different tube diameters.
3. How accurate is the labeling process?
The machine offers high precision with a labeling accuracy of ±0.5mm, ensuring professional packaging for pharmaceutical products.
4. Can the S400 be integrated into an existing production line?
Yes, it features a versatile combination design that allows it to be connected with automatic nest-removers and rod trimmers or used as a stand-alone unit.
5. What kind of control system does it use?
The system is equipped with top-ranking servo controls and a Germany-imported PLC system for maximum stability and intelligent monitoring.
6. Does it support coding or printing on labels?
Yes, there are optional units for spray coding, stamping coding, laser coding, and online label printing to meet various traceability requirements.
