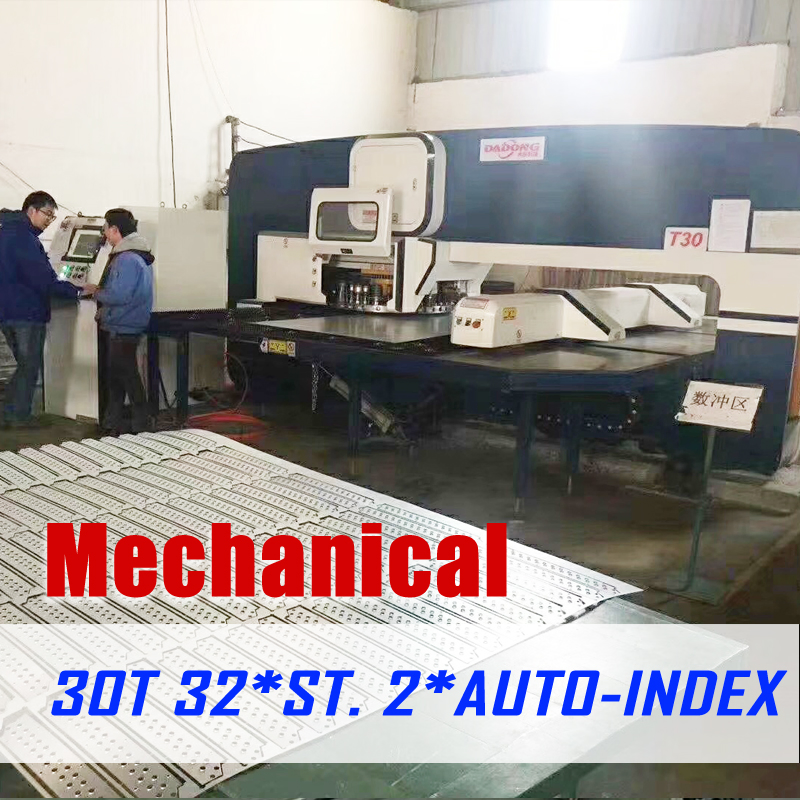

Automated mechanical CNC Turret Punch, Two Auto-Index Station

1 / 1

Automated mechanical CNC Turret Punch, Two Auto-Index Station

Customization:	Available
Type:	High-Speed Punching Machine
Punch Shape:	Closed Punch

Send Inquiry

Product Description

⚙️

Basic Info.

Model NO.

D-T30

Punch Force

30t

Controlling Mode

CNC

Slider Movement

Single Action

Precision

High Precision

Automatic Grade

Automatic

Max. Sheet Size

5000*1250mm

Station Quantity

16 / 24 / 32

Certification

CE, ISO 9001

Auto-Index

Yes

📊

Technical Specifications

Name	Unit	Specification
Frame Construction	/	O-Frame
Max. Punching Force	kn	300
Max. Sheet Thickness	mm	4
Standard Sheet Size	mm	2500 x 1250 / 1500 / 2000
Max. Sheet Size (Re-positioning)	mm	5000 x 1250 / 1500 / 2000
Max. Tool Diameter	mm	Φ88.9
Max. Punching Speed	hpm	260(30mm step) / 170(50mm step)
Auto-index Station	pcs	2
Processing Accuracy	mm	±0.10
Feeding Speed	m/min	80

💎

Main Characteristics

Protection Functions

Clamp stamping protection (automatic avoidance)
Tonnage overrun protection
Travel limit overrun protection
Automatic diagnostic program & alarm
Air pressure & Voltage protection
Automatic lubrication protection

Advanced Design

Seamless Worktable: Prevents collision during plate movement
Reversible Worktable: Cylinder control for easy tool changes
Excellent Turret Quality: Made of 40Cr with German mosaic roulette
Auto-index: Special worm turbine structure from Germany

Intelligent Control

Automatic tool selection & optimization
Real-time display of stamping time & die life
Carriage and beam integrated design for smoothness
Elimination of X, Y-axis dynamic offset

CNC System Features

International generic G code programming
Graphical simulation of stamping function
Nano-unit interpolation for high-speed precision
Pitch, backlash, and coordinate offset compensation
Automatic data saving during power off

💡 TIPS FOR INQUIRY

To confirm the optimal punching machine, please consider:

Machine Configuration:

Transmission method (mechanical or servo)
Tool station quantity (16/24/32)
Throat depth (1250/1500/2000mm)
Auto-index quantity (1/2)

Fabricating Requirements:

Sheet material & thickness
Maximum sheet size
Need for Rolling Shear/Rib/Offset

❓

Frequently Asked Questions

What is the maximum sheet size the D-T30 can process?

The D-T30 supports a standard sheet size up to 2500x1250mm, but with the re-positioning function, it can handle sheets up to 5000x1250mm.

What kind of accuracy can I expect from this CNC Turret Punch?

The machine offers high-precision processing with an accuracy of ±0.10 mm, supported by a Nano-unit interpolation system.

How many tool stations are available?

You can choose between 16, 24, or 32 stations depending on your specific fabrication needs.

Does the machine include safety protection for the clamps?

Yes, it features a clamp stamping protection function where the clamps automatically avoid the punching area to prevent collisions.

Is the turret quality durable for long-term use?

The turret is made of high-quality 40Cr steel and processed in large machining centers using a German mosaic roulette design for maximum durability.

What control system does the machine use?

It uses an advanced CNC system that supports international generic G code, RS232 interface, and features graphical simulation for easy operation.

Product Detail

Automated mechanical CNC Turret Punch, Two Auto-Index Station
