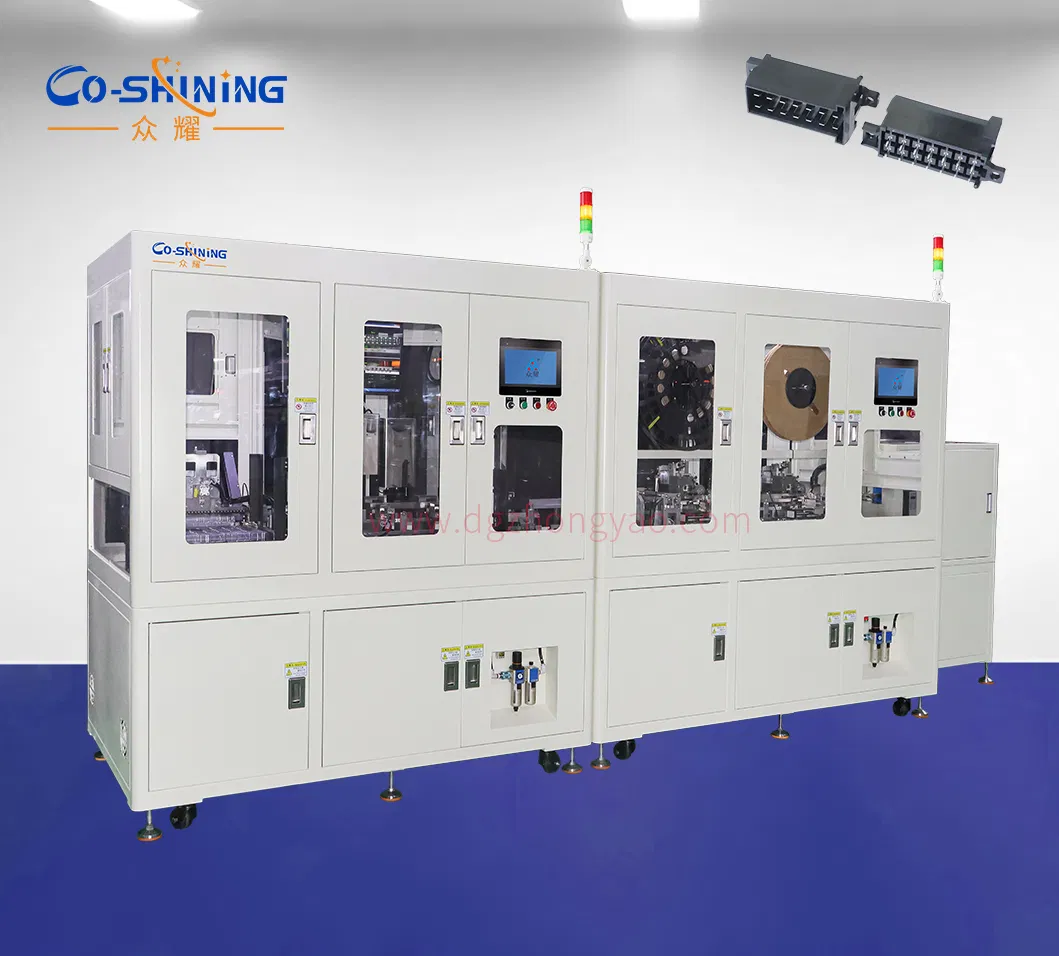

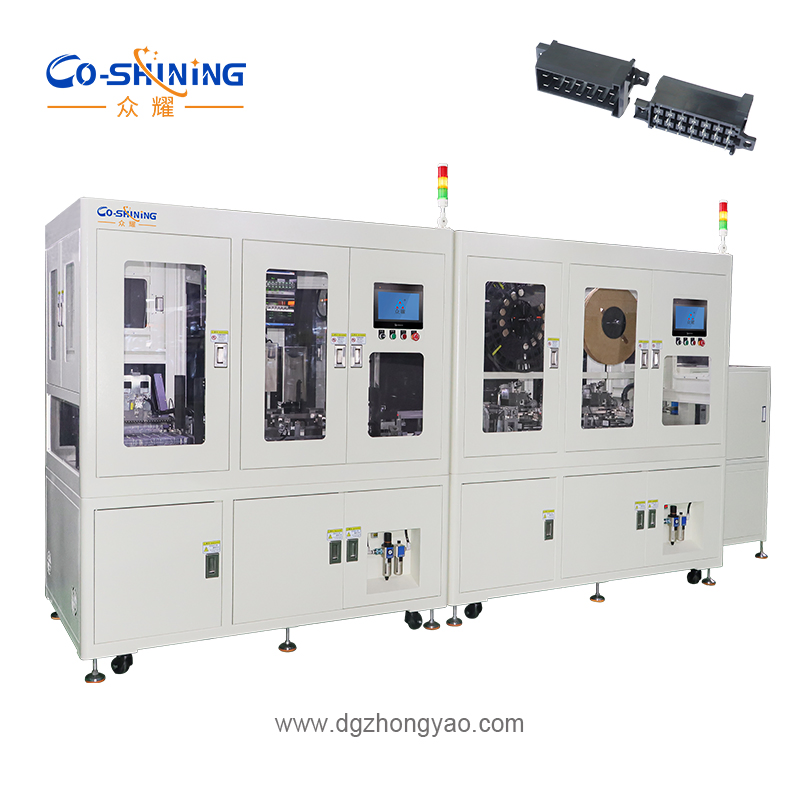

Connector Pin Bending Assembly Auto Production with High Voltage Efficiency

1 / 5

Connector Pin Bending Assembly Auto Production with High Voltage Efficiency

Customization:	Available
After-sales Service:	One-Year Warranty
Automatic Grade:	Automatic

Send Inquiry

Product Description

Basic Info

Model NO.ZY-ZDCZ

Driven TypeElectric

Warranty12 Months

Appearance7035 Industrial Gray Paint

Yield98%

VoltageAC220V

Weight95kg

ConditionNew

OriginChina

HS Code8479819000

Product Description

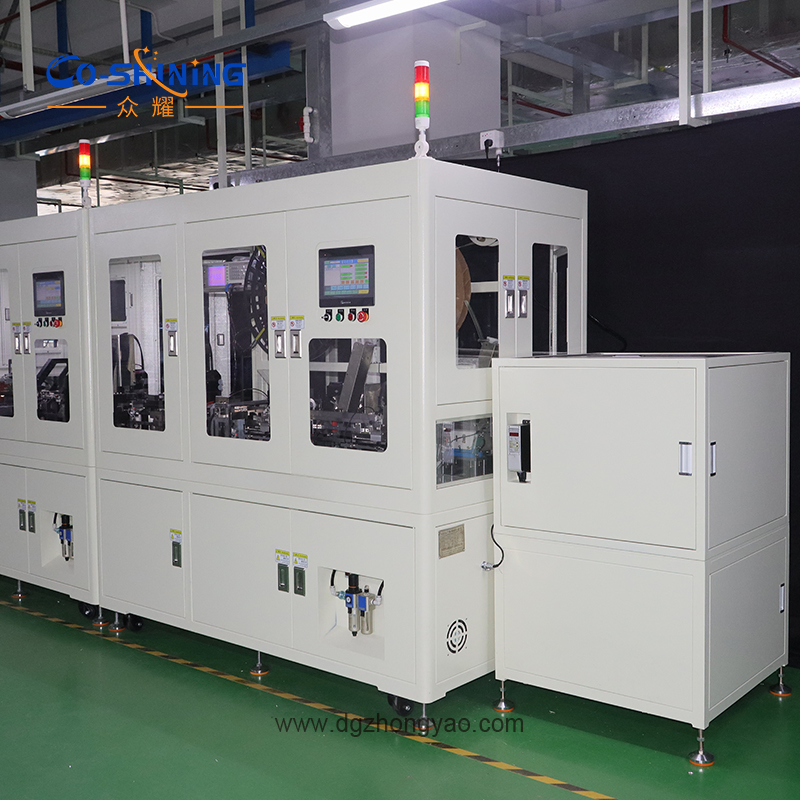

Customize the look of our Wire Harness Automation Equipment to fit your industrial design. The easy-control door mechanism ensures safe, convenient operation, seamlessly integrating into your environment. Our modular Institutional design offers reliability and stability, confirmed by rigorous testing. Inspection data integrates with our optional MES system for traceability and process optimization.

Our automated systems excel in wiring harness processing and connector assembly, including FAKRA, Ethernet, HSD, and new energy AC/DC. We provide standard and custom solutions for high-speed harnesses, ensuring precision in stripping, crimping, welding, assembly, and testing. In connector assembly, we lead in automated systems for electronics, industrial, automotive, and medical fields.

Specification

Work efficiency	1200PCS/H
Work yield	≥98%
Environment Temp	-10 degrees to 50 degrees
Air pressure	5-6KG (water-free and oil-free)

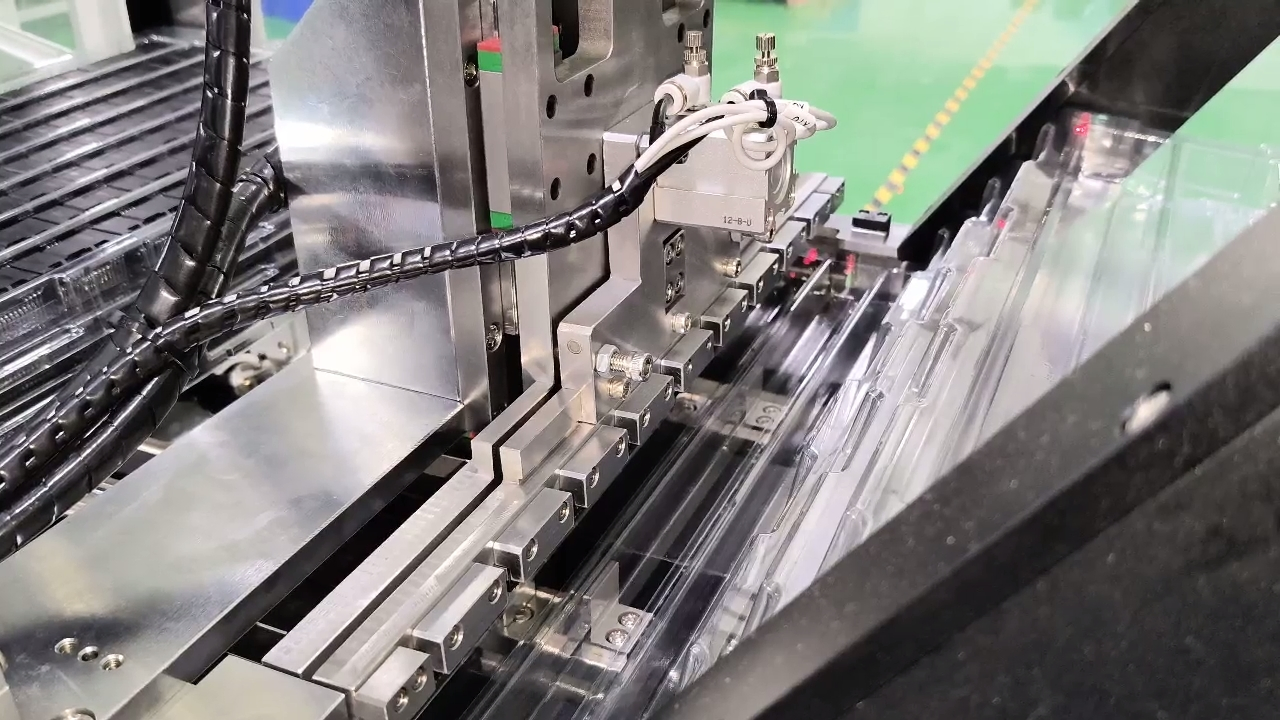

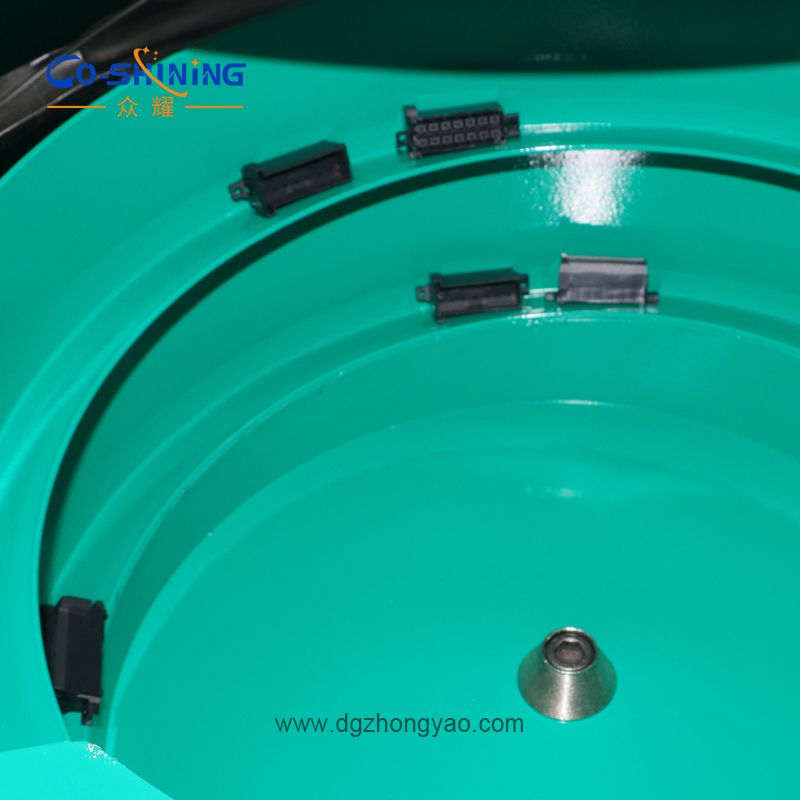

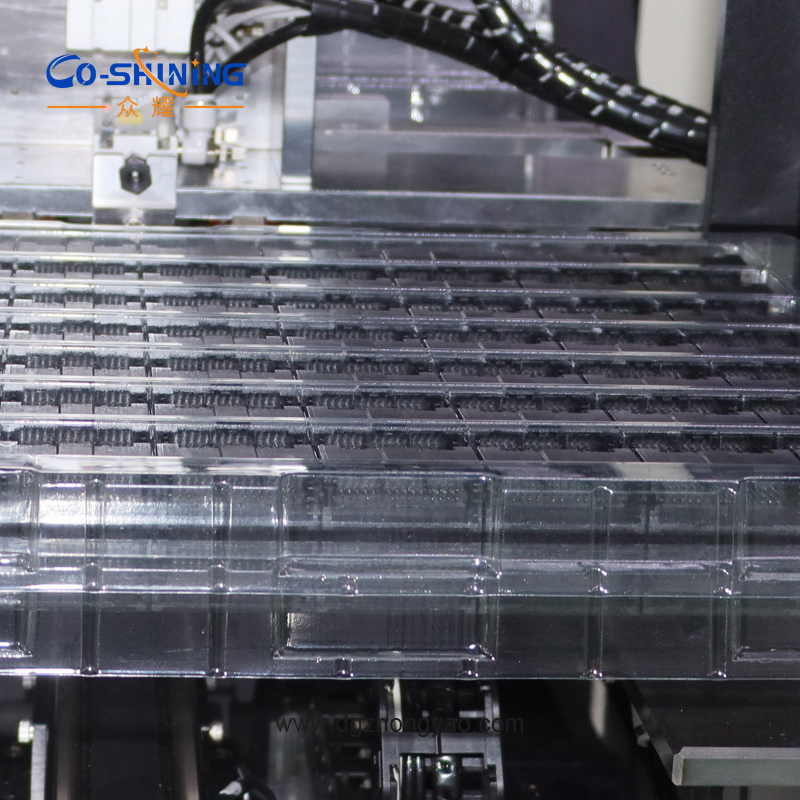

Device function	Vibrating plate supply, Servo transfer, Cam single plug (upper/lower), Servo pressure terminal, Suction/dust removal, Conductive voltage test, CCD shift detection (terminal/pin/needle length), Laser coding, Blister box packaging.
Voltage	AC 220V/50HZ
Dimensions	L15100mm / W1250mm / H2100mm
Security settings	Leak power protection, access control switch, emergency stop, alarm prompt

Packaging & Delivery

Package Size300.00cm * 220.00cm * 220.00cm

Gross Weight3500.000kg

TypeWooden Case

Industrial Application

FAQ

What is the production efficiency of this equipment?

The equipment features a high work efficiency of approximately 1200 PCS/H with a yield rate of ≥98%.

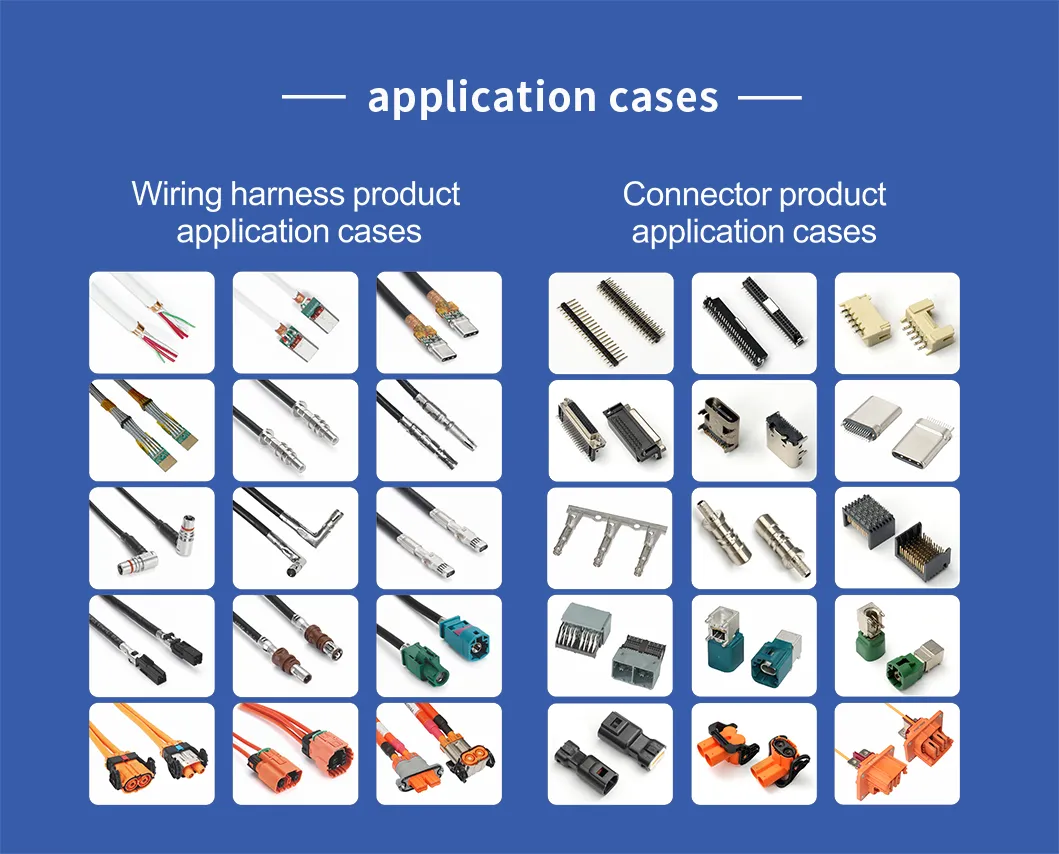

What kind of connectors can this machine handle?

It is designed for various high-speed and automotive harnesses, including FAKRA, Ethernet, HSD, and USB TYPE-C 2.0/3.1/4.0.

Does the equipment support data traceability?

Yes, the inspection data can be integrated with an optional MES (Manufacturing Execution System) for full process optimization and traceability.

What are the safety and security features?

It includes leak power protection, access control switches, emergency stop buttons, and automated alarm prompts for safe operation.

How is the equipment packaged for international shipping?

The machine is securely packed in a professional wooden case to ensure protection during transport, with a total package weight of approximately 3500kg.

What inspection methods are used in the production process?

The system utilizes multiple CCD visual inspections for terminal position, pin alignment, and needle length, along with conductive withstand voltage testing.
