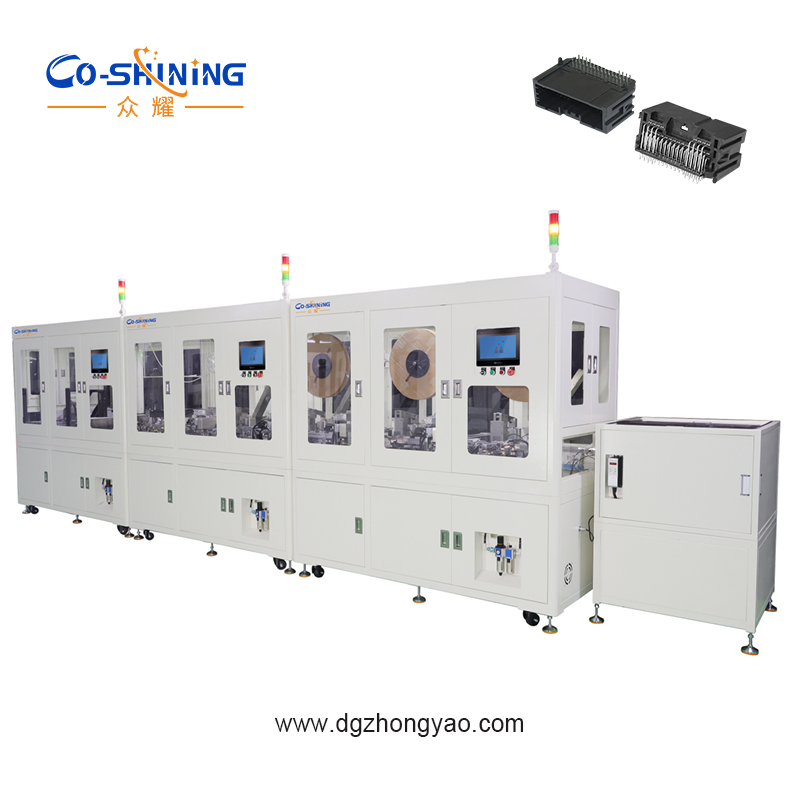

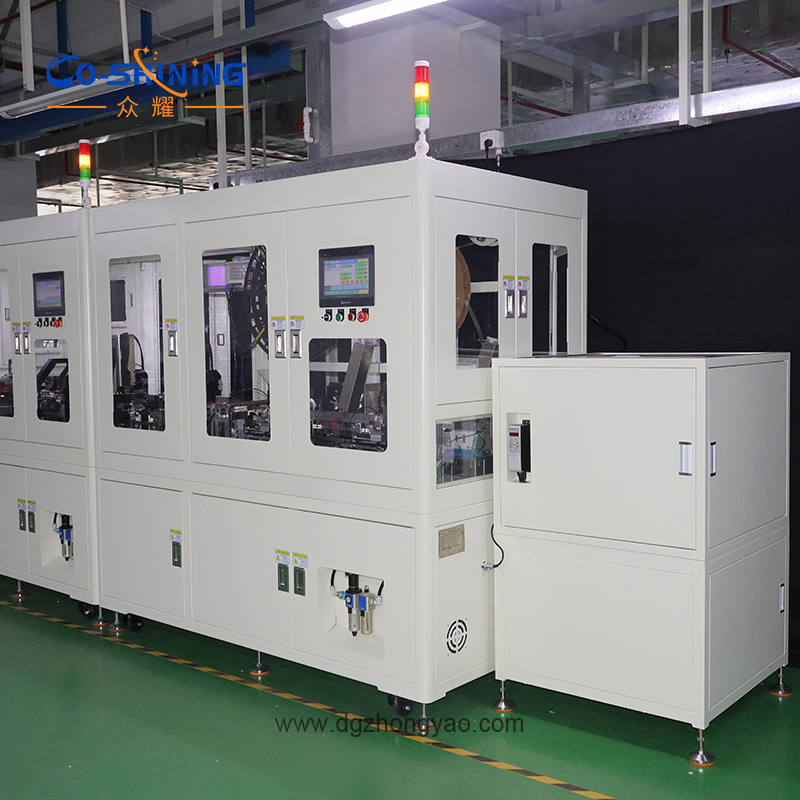

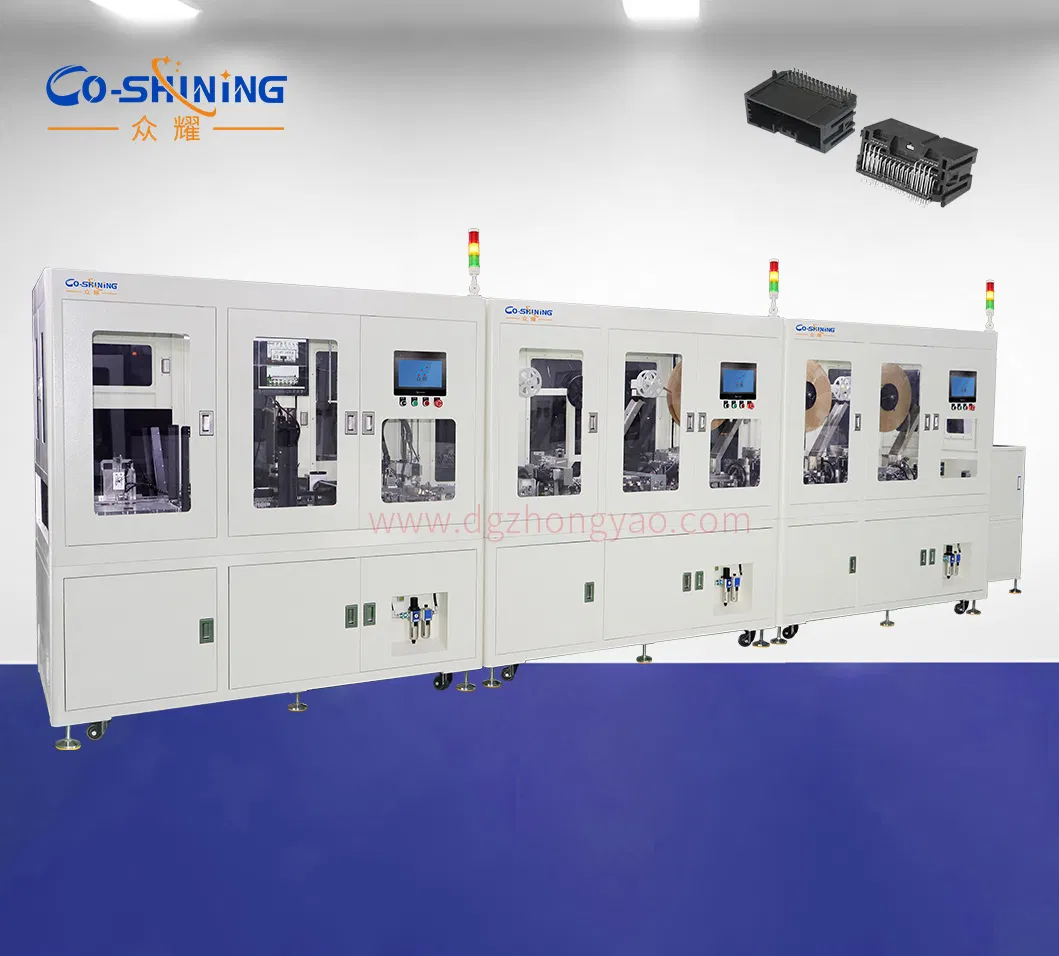

Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
1 / 5
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate
Connector Pin Bending Assembly Auto Production with High Yield Rate

Connector Pin Bending Assembly Auto Production with High Yield Rate

Customization: Available
After-sales Service: One-Year Warranty
Automatic Grade: Automatic
Send Inquiry

Product Description

🚀 Overview

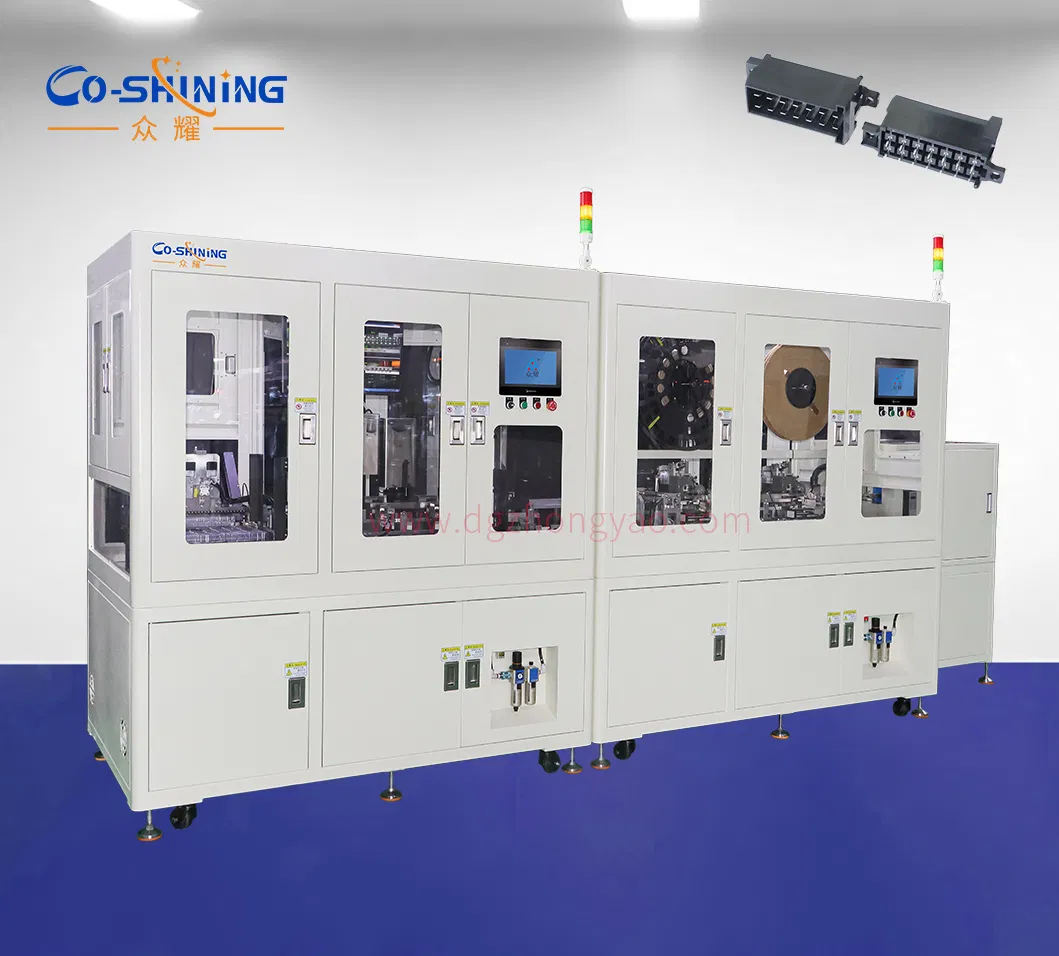

Product Image
Our Innovative Wire Harness Automation Equipment, customizable to your design needs, integrates beauty and safety into your environment. The cover with easy-control door ensures smooth operation, merging convenience with safety. Our institutional design, modular and standardized, provides a reliable, stable system verified by rigorous testing. Production data can integrate with our optional MES system for traceability and optimization.

📋 Basic Information

Model NO.
ZY-ZDCZ
Driven Type
Electric
Warranty
12 Months
Appearance
7035 Industrial Gray Paint
Yield
98%
Voltage
AC220V
Weight
95kg
Condition
New
HS Code
8479819000
Capacity
1000 Units

⚙️ Specification

Work Efficiency1200PCS/H
Work Yield≥98%
Working Temperature-10 to 50 degrees
Working Air Pressure5-6KG (water-free and oil-free)

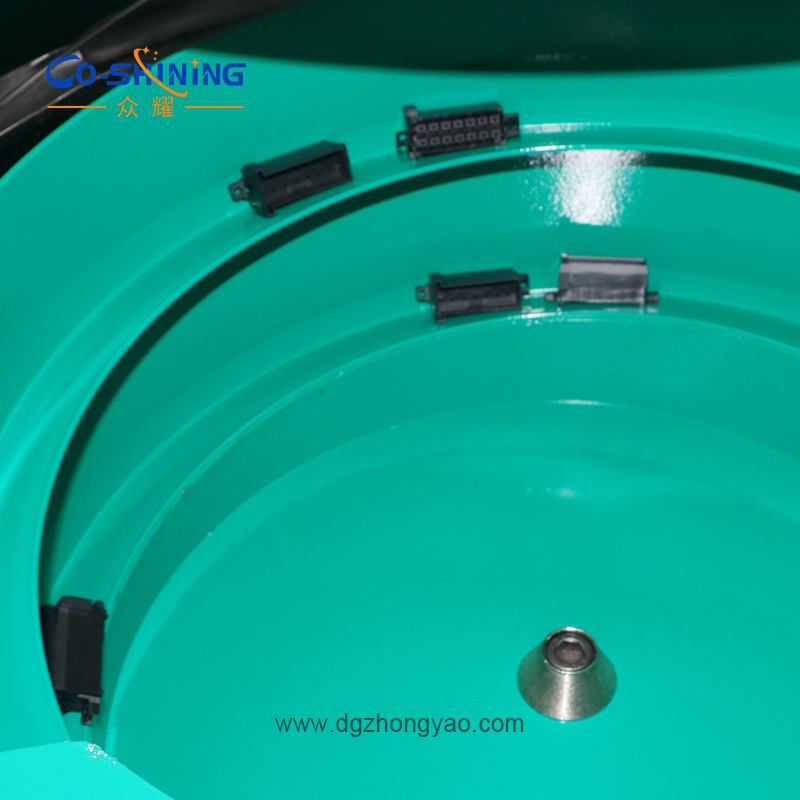

Device Function • Vibrating plate for rubber core supply
• Servo transfer and cam single plug
• Suction and dust removal
• Conductive withstand voltage test
• Triple CCD detection (terminal position, pin position, needle length)

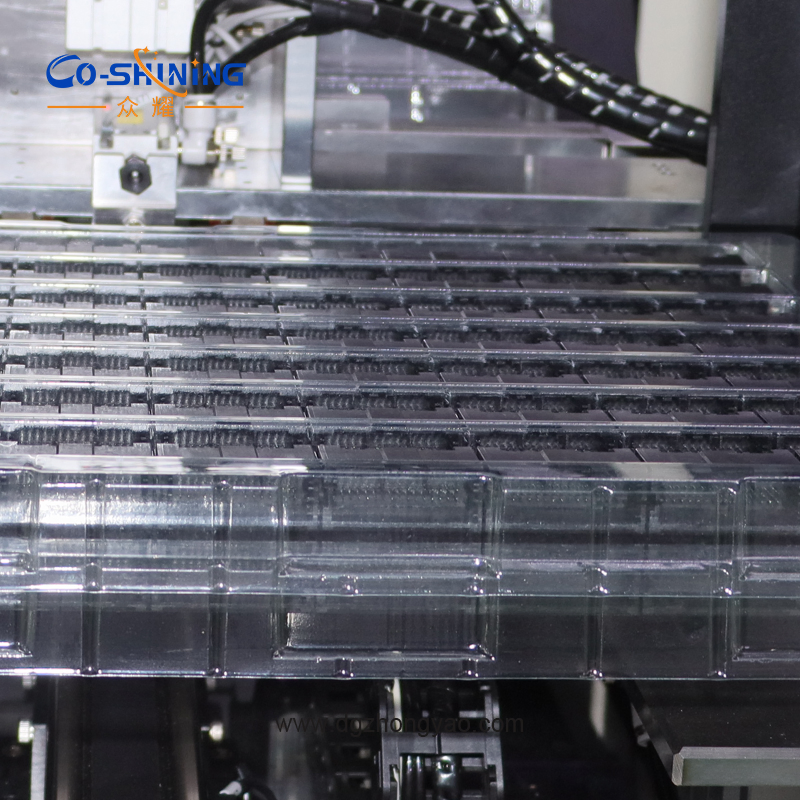

• Laser coding and Blister box packaging
DimensionsL15100mm / W1250mm / H2100mm
Security SettingsLeak power protection, access control switch, emergency stop, alarm prompt

📸 Product Details & Display

Specializing in high-tech automation equipment R&D, we excel in wiring harness processing and connector assembly/testing. Our solutions cater to FAKRA, Ethernet, HSD, new energy AC/DC, and USB TYPE-C applications.
Packing 1
Packing 2
Detail 1
Detail 2
Detail 3
Process 1
Process 2

📦 Packing & Delivery

Package Size
300.00cm * 220.00cm * 220.00cm
Gross Weight
3500.000kg
Transport
Wooden Case

❓ FAQ

What is the production efficiency of the ZY-ZDCZ model?
The equipment has a high work efficiency of 1200 PCS/H with a yield rate of ≥98%.
What safety features are integrated into the machine?
The system includes leak power protection, access control switches, emergency stop buttons, and automated alarm prompts.
Can the production data be tracked?
Yes, the equipment supports integration with an optional MES system for complete data traceability and production optimization.
What kind of maintenance is required for the air pressure system?
The machine requires a stable working air pressure of 5-6KG, and it is essential that the air source is water-free and oil-free to ensure longevity.
Does the equipment support visual inspection?
Yes, it features a 3-axis CCD detection system for shift detection, terminal pin positioning, and needle length tilt detection.
What is the warranty period for this automation equipment?
We provide a standard 12-month warranty for the equipment to ensure reliable operation and peace of mind.
