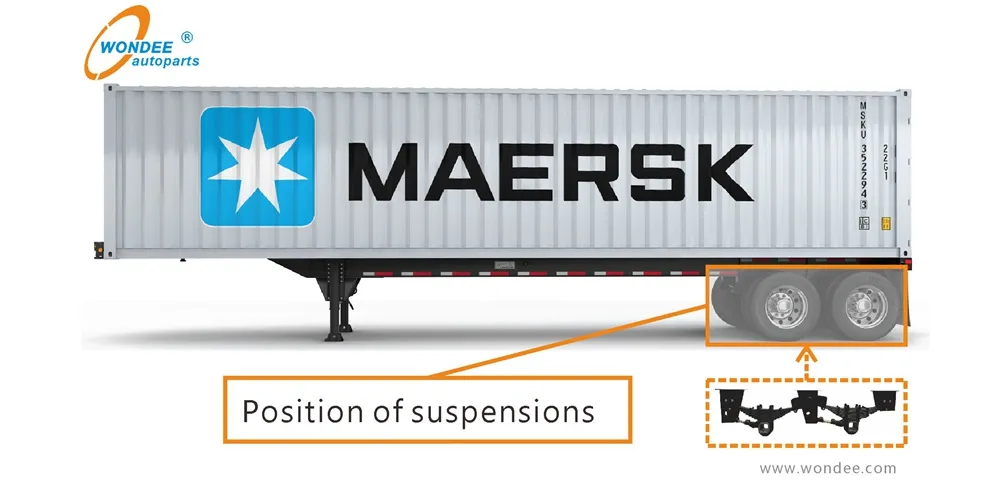

A semi-trailer suspension is a critical component connecting the traveling device to the frame. It transmits all forces between the road and the vehicle, reducing the impact of harsh terrains, providing shock absorption, and significantly improving ride comfort.
These suspensions are widely applied to skeletal trailers, lowbed trailers, flatbed trailers, dump trailers, oil tank trailers, and more. Our range includes German series, American series, bogie suspensions, air suspensions, and rigid suspension series.
| Management System | Standard / Detail |
|---|---|
| QC Management System | Implementing IATF 16949-2016 |
| Services Quality | Implementing ISO 9001-2015 |
| Warranty | 18 months since shipping date |
| Raw Material | Q235 high-grade steel for longer life |

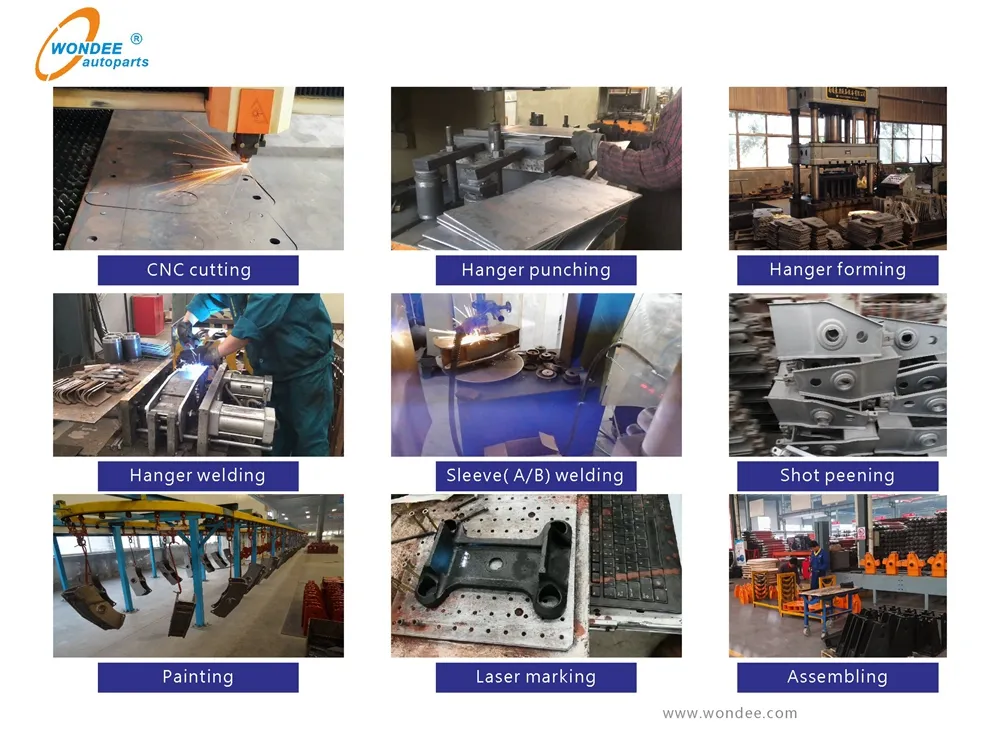

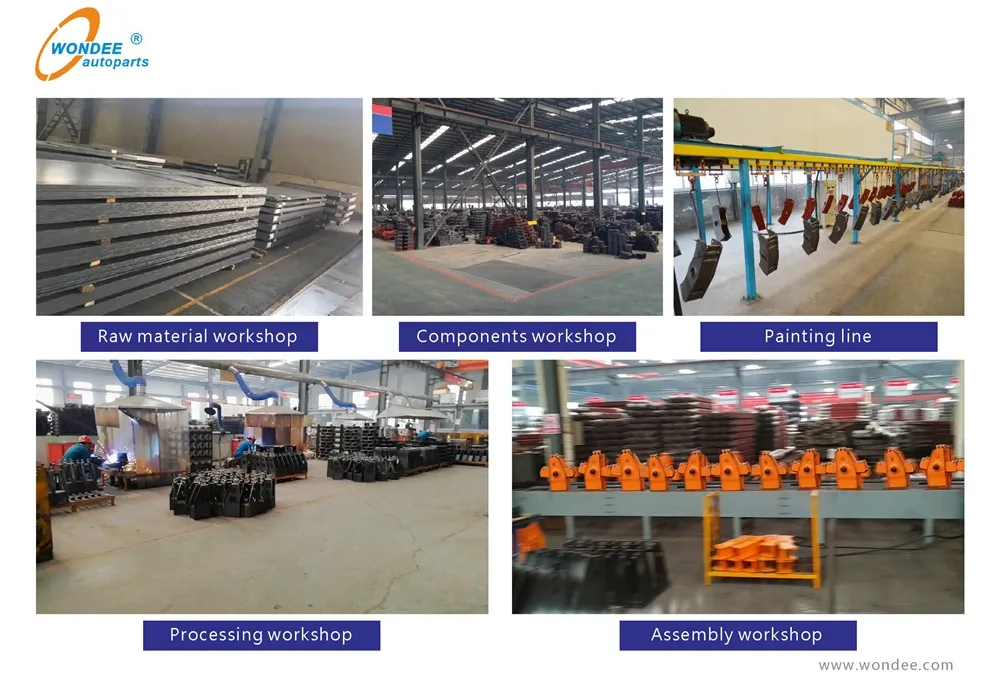

| Processing | CNC Plasma Cutting & Hydraulic Pressing |
| Welding | Automatic CNC welding robots |
| Surface Treatment | Shot-peening & Automatic coating line |

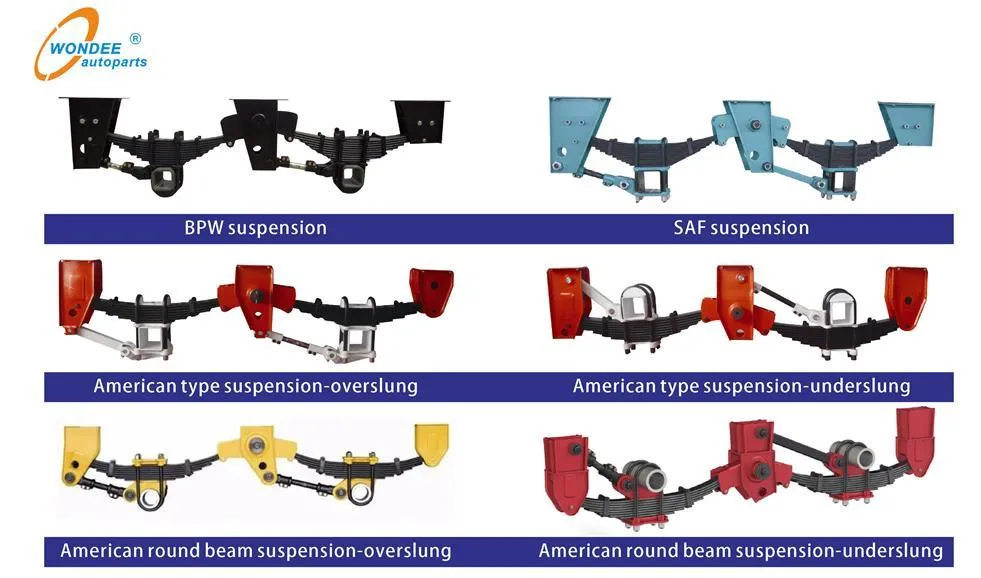

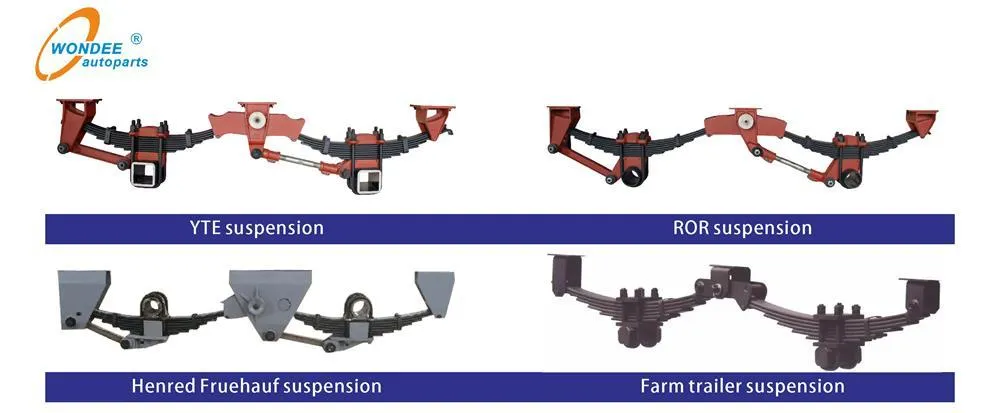

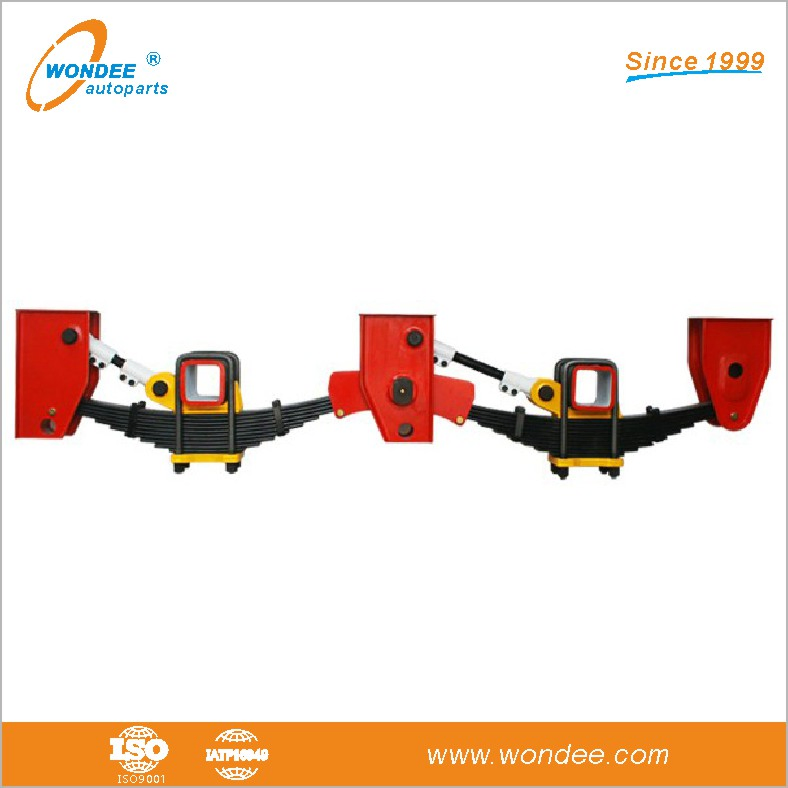

| Suspension Types | German, American, Bogie, Air, Rigid, YORK, ROR, HENRED series |
| Interchangeability | BPW, FUWA, YORK, ROR, HENRED components |
| Axle Configuration | 1-axle, 2-axle, 3-axle, 4-axle options |
| Installation | Overslung & Underslung suspensions |
| Bushings | Natural rubber or durable powdered metal |
| Capacity | Annual output 50,000+ sets |

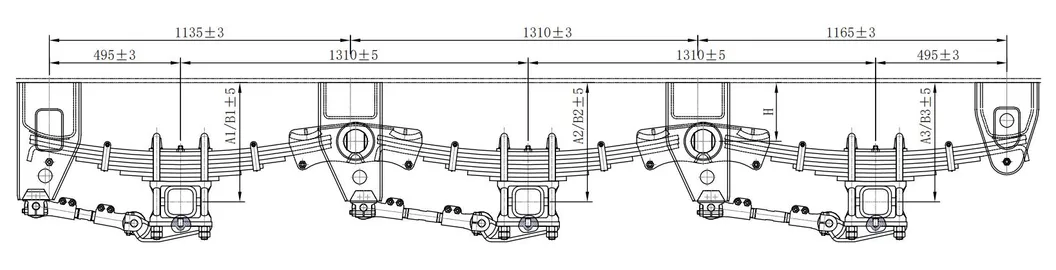

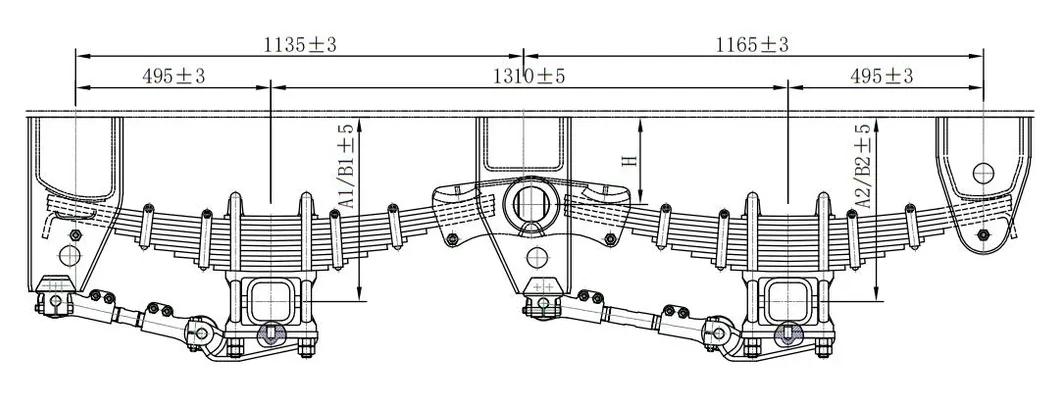

| Model | Towing Plate (mm) | H (mm) | Axle Loading (kg) | Replacement |
|---|---|---|---|---|
| WDA2183908801 | 1180 | 183 | 13,000 * 2 | FW880201A |
| WDA2223908801 | 1220 | 223 | 13,000 * 2 | FW880202A |
| WDA2253908801 | 1250 | 253 | 13,000 * 2 | FW880203A |
| Model | H (mm) | Axle Loading (kg) | Replacement |
|---|---|---|---|
| WDA2183908601 | 183 | 16,000 * 2 | FW860201A |
| WDA2223908601 | 223 | 16,000 * 2 | FW860202A |

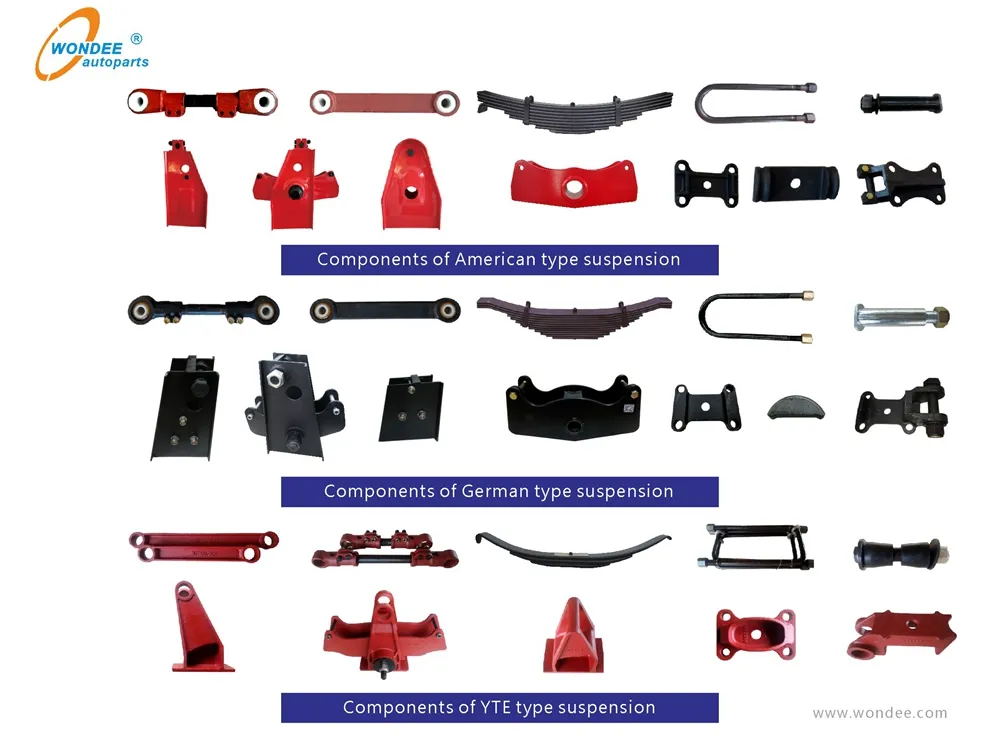

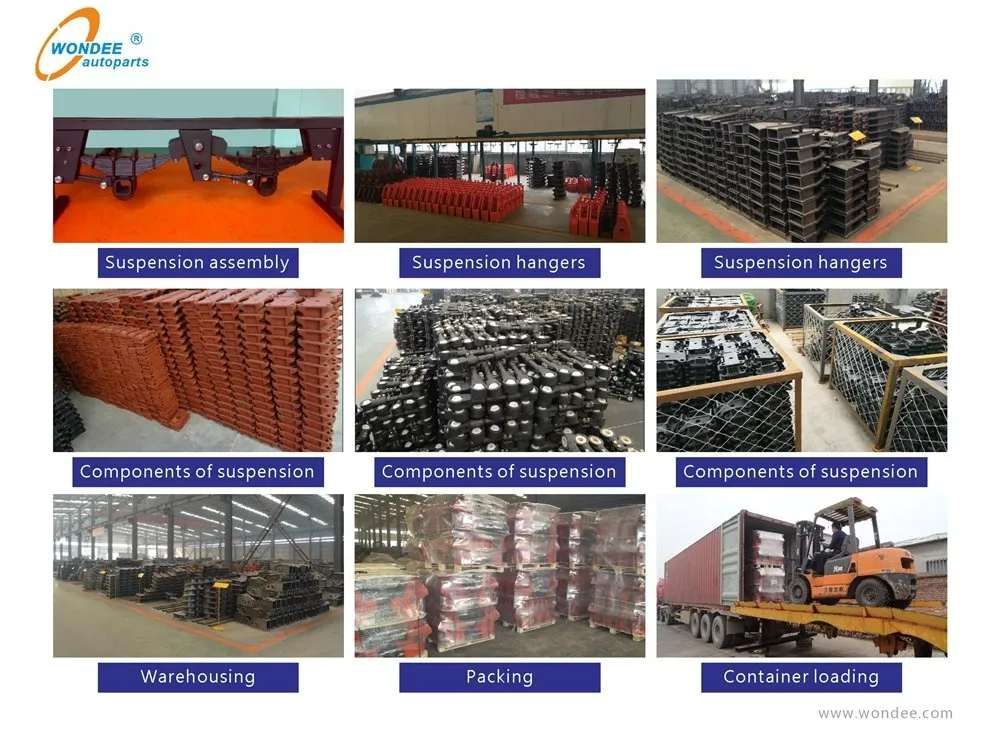

Available spare parts include: Front hangers, Middle hangers, Rear hangers, Suspension equalizers, Equalizer pins, Leaf springs, Fix torques, Adjustable torques, U-bolts, and more.
