Home > High Precision Auto & Medical Parts > High Speed GMP Standard Pre-Filled Syringes Sticker Labeling Plunger Torsion Assembly Auto De-Nesting

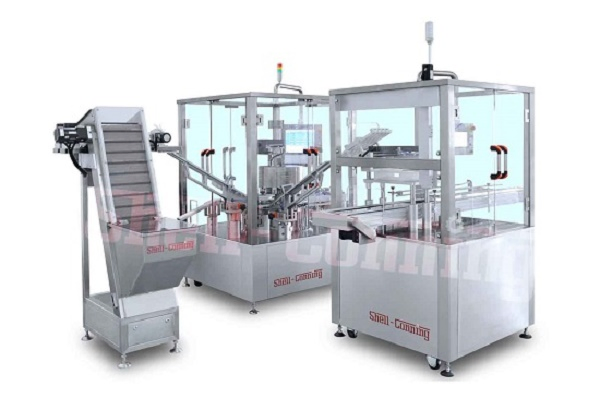

High Speed GMP Standard Pre-Filled Syringes Sticker Labeling Plunger Torsion Assembly Auto De-Nesting
1 / 1
High Speed GMP Standard Pre-Filled Syringes Sticker Labeling Plunger Torsion Assembly Auto De-Nesting

High Speed GMP Standard Pre-Filled Syringes Sticker Labeling Plunger Torsion Assembly Auto De-Nesting

Customization: Available
Warranty: 2 Year
Type: Pharmaceutical Packaging Machinery
Send Inquiry

Product Description

Basic Specifications

Model NO.
S400
Finished Dosage Form
Liquid
Precision
High Precision
Certification
CE, GMP, ISO
Voltage
220V
Computerized
Computerized
Customized
Customized
Condition
New
Transport Package
Plywood Box
Specification
SET
Production Capacity
1000

Product Description

🛡️
Why do we offer?
To solve the urgent demand for vaccine production, the upgraded technology of the prefilled syringes labeling system has enhanced performance stability. The S400 model plays a crucial role in massive vaccine production during special periods.
⚙️
Range of Application:
This sophisticated equipment is developed to connect with prefilled syringe systems. When integrated with an automatic nest-remover and syringe rod trimmer, it completes:
  • Needle tube nest-removing
  • Push rod feeding
  • Combination booster & torsion bar
  • Outerwear assembly and labeling
  • Syringe labeling & buffer platform
Equipped with top-ranking servo control and high-end PLC to ensure rubber plugs remain stable during assembly. Visual detectors monitor push rod placement and tightness.
⭐
Model Characteristics:
High Capacity
Stable production capacity reaching up to 400bpm.
Precision Engineering
Tolerance range: 0.2~0.5ml between push rod and rubber plug.
Versatile Integration
Aviation-grade craftwork. Supports standalone or connected operation with optional coding units (Laser/Spray/Stamping).

Technical Specifications

S/No. Item Parameters Remark
1 Speed ≤400 pieces per minute Depends on size & feed speed
2 Tube Size 1-10ml syringe Ø6-20mm Parts replaceable for different diameters
3 Labeling Accuracy ±0.5mm Excludes label material error
4 Label Sending Speed ≤60 meters/minute -
5 Label Roll ID: 76mm, OD: 350mm -
6 Label Size (L)15-100 (W)10-80 mm -
7 Power 220V±5% 50/60Hz 1KW -
8 Dimensions Approx. 2600 × 1000 × 1600 mm For reference only

Frequently Asked Questions

Q1: What is the maximum production speed of the S400? A: The system can achieve a stable production speed of up to 400 pieces per minute, depending on the syringe and label specifications.
Q2: Which syringe sizes are compatible with this machine? A: It is designed for 1-10ml syringes with diameters ranging from 6mm to 20mm. Corresponding parts can be replaced for different sizes.
Q3: How accurate is the labeling process? A: The labeling accuracy is within ±0.5mm, ensuring high-quality presentation for medical products.
Q4: Can this machine handle push rod assembly? A: Yes, it synchronously performs multiple functions including nest-removing, pusher feeding, screwing the rod, and labeling.
Q5: What certifications does the equipment have? A: The equipment complies with CE, GMP, and ISO standards, making it suitable for pharmaceutical and vaccine production environments.
Q6: Does it support online printing or coding? A: Yes, optional units for spray coding, stamping coding, or laser coding can be integrated for online label printing.
