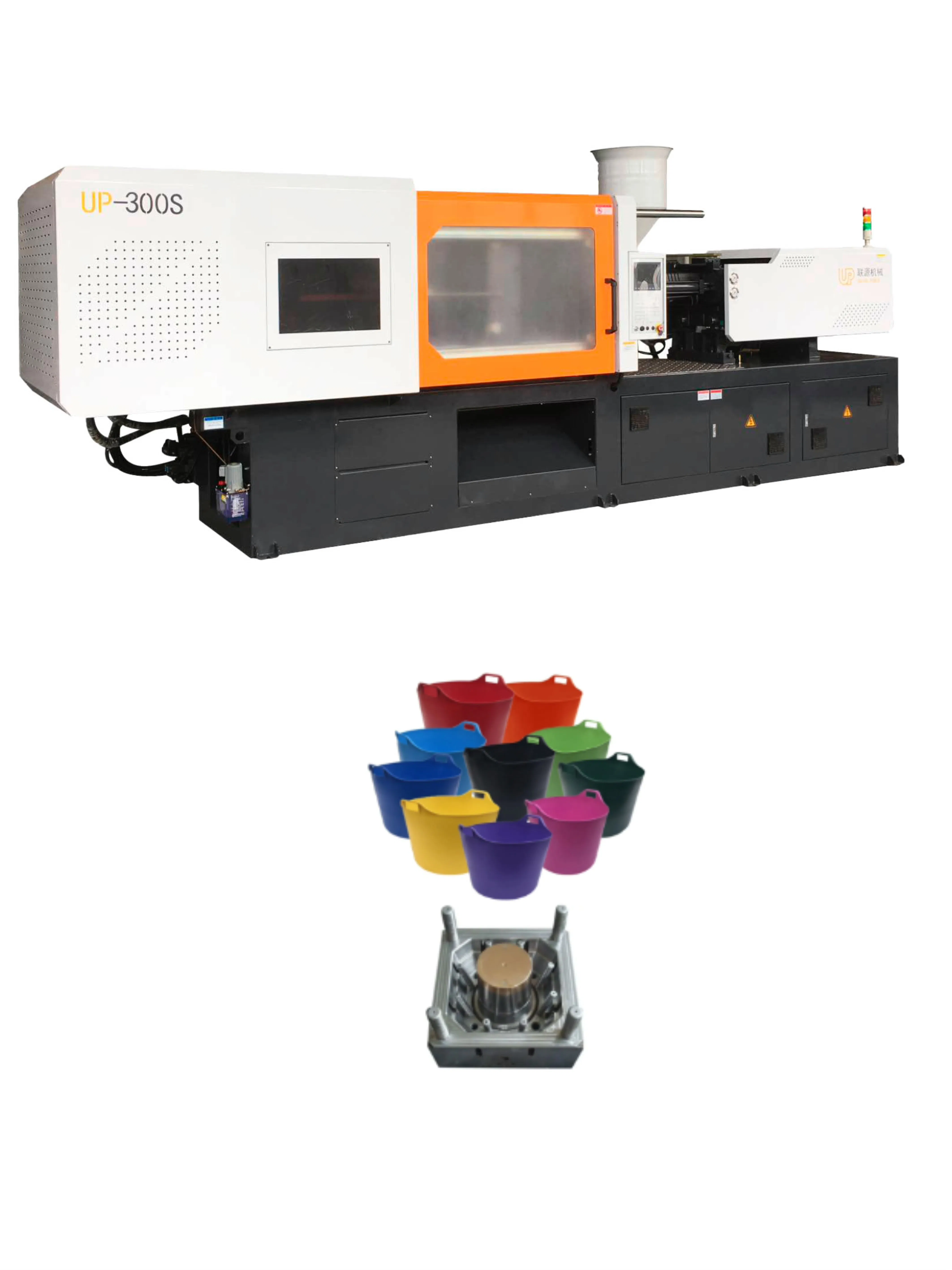

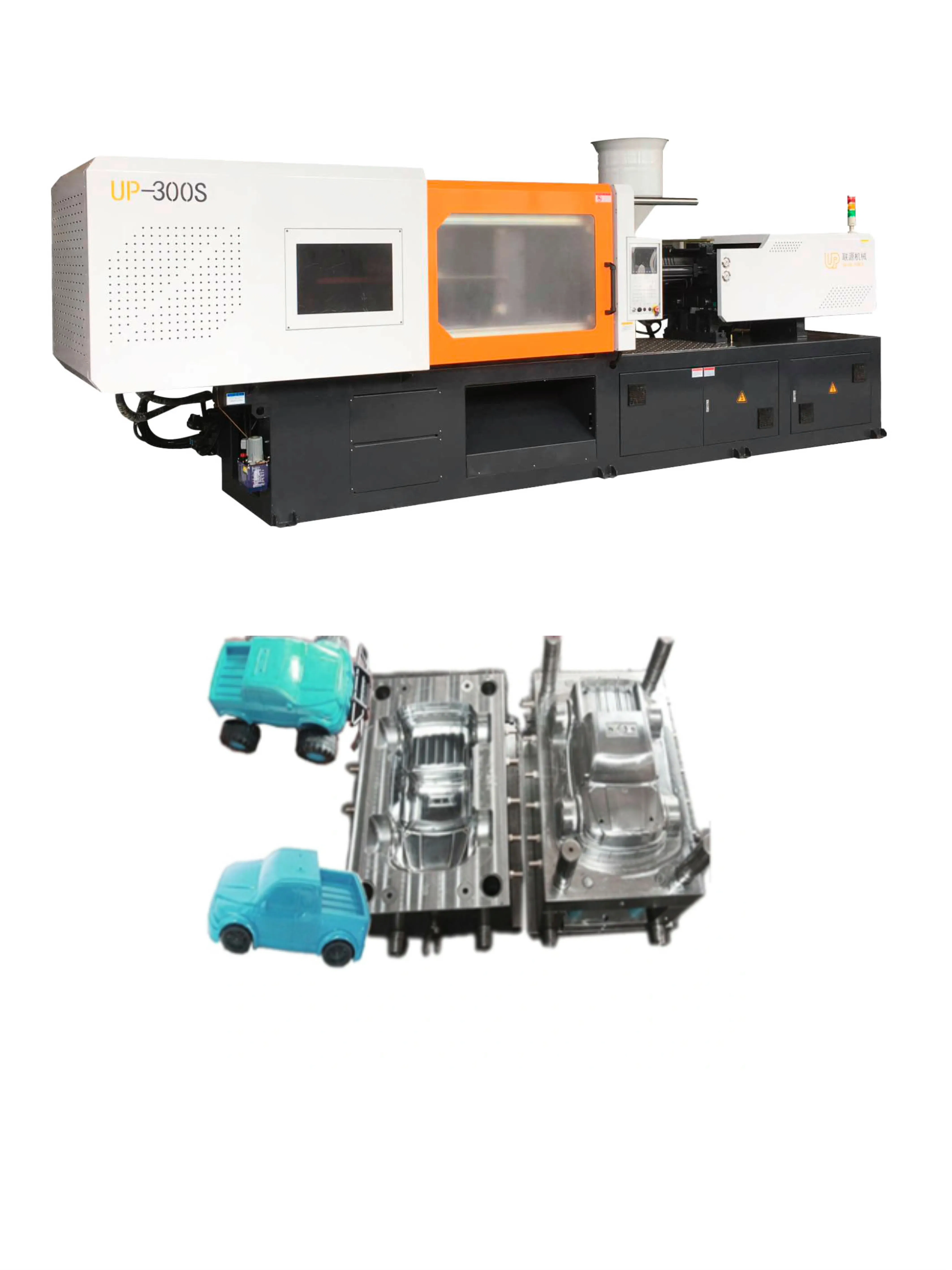

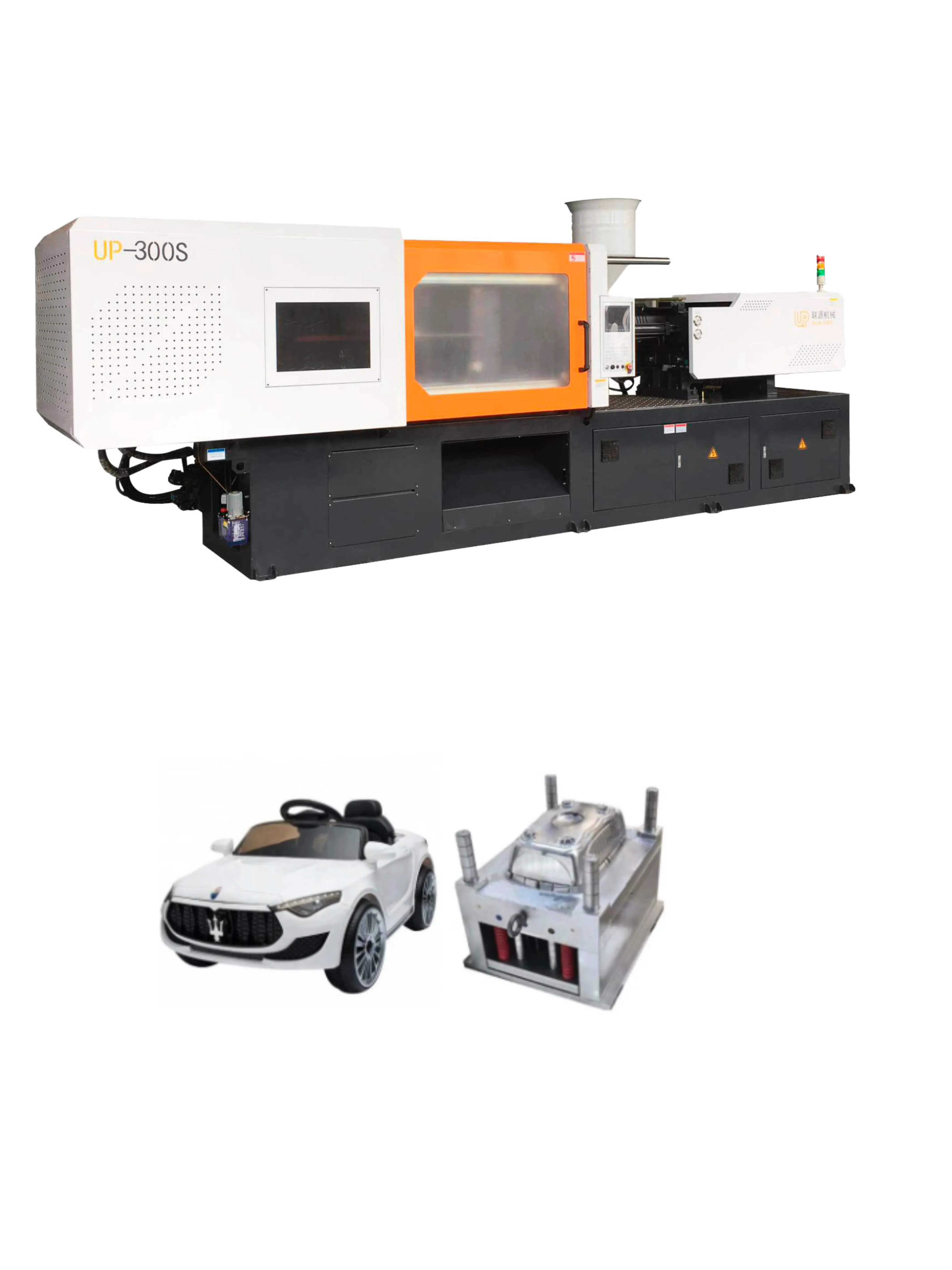

Small Injection Parts for Household Plastic

1 / 5

Small Injection Parts for Household Plastic

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

UP-300T

Type

Tube Head Injection

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Heating Power

16kw

Machine Weight

18.5t

Tank Volume

400L

System Pressure

16MPa

Specification

6.3*1.75*2.37

Origin

China

Production Capacity

500sets Per Year

Product Description

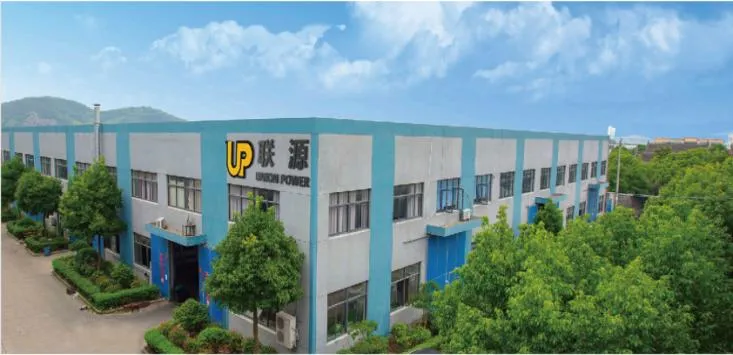

Our factory specializes in manufacturing high-precision injection molding machines, molds, and auxiliary equipment. The machine range covers 50 to 3000 tons with a tensile resistance capacity of up to 40,000 g.

Available Machine Models:

Standard injection molding machine
PVC injection molding machine
PET injection molding machine
Two-color ejector system
Fully hydraulic injection molding machine
All-electric injection molding machine
China servo injection molding machine

Key Features:

A. Modulus of Capacitance: Guide pillar specifications including position, size, and maximum allowable modulus of capacitance.

B. Nozzle Parameters: Precision nozzle details covering spherical diameter, aperture, outer diameter, and extension length.

C. Code Mold Parameters: Standardized mold hole and slot size specifications for various requirements.

D. Ejection Mechanism: Adjustable ejection point position, rod diameter, force, and stroke details.

E. Mold Opening: Efficient mold opening stroke and maximum opening distance information.

Technical Parameters

Technical Parameters	Model UP-300T
Injection Unit	A	B	C
Screw diameter (mm)	60	65	70
Shot Volume (cm3)	806	946	1096
Injection weight (g)	725	851	987
Injection pressure (Mpa)	170	145	107
Screw speed (rmp)	220
Clamping Unit
Clamping force (KN)	3000
Open stroke (mm)	600
Max Mold height (mm)	620
Min Mold height (mm)	200
Space between tie bars (mm)	620*620
Ejector force (KN)	70
Others
Motor/driving power (KW)	30(29)
Heating power (KW)	18.5
Machine dimension (M)	6.31.752.37

Frequently Asked Questions

Q: What is the maximum clamping force of the UP-300T?

A: The UP-300T model provides a maximum clamping force of 3000 KN, suitable for a wide range of thermoplastic injection molding applications.

Q: Are different screw diameters available for the injection unit?

A: Yes, we offer three screw options (A, B, and C) with diameters of 60mm, 65mm, and 70mm respectively to meet different injection weight and pressure requirements.

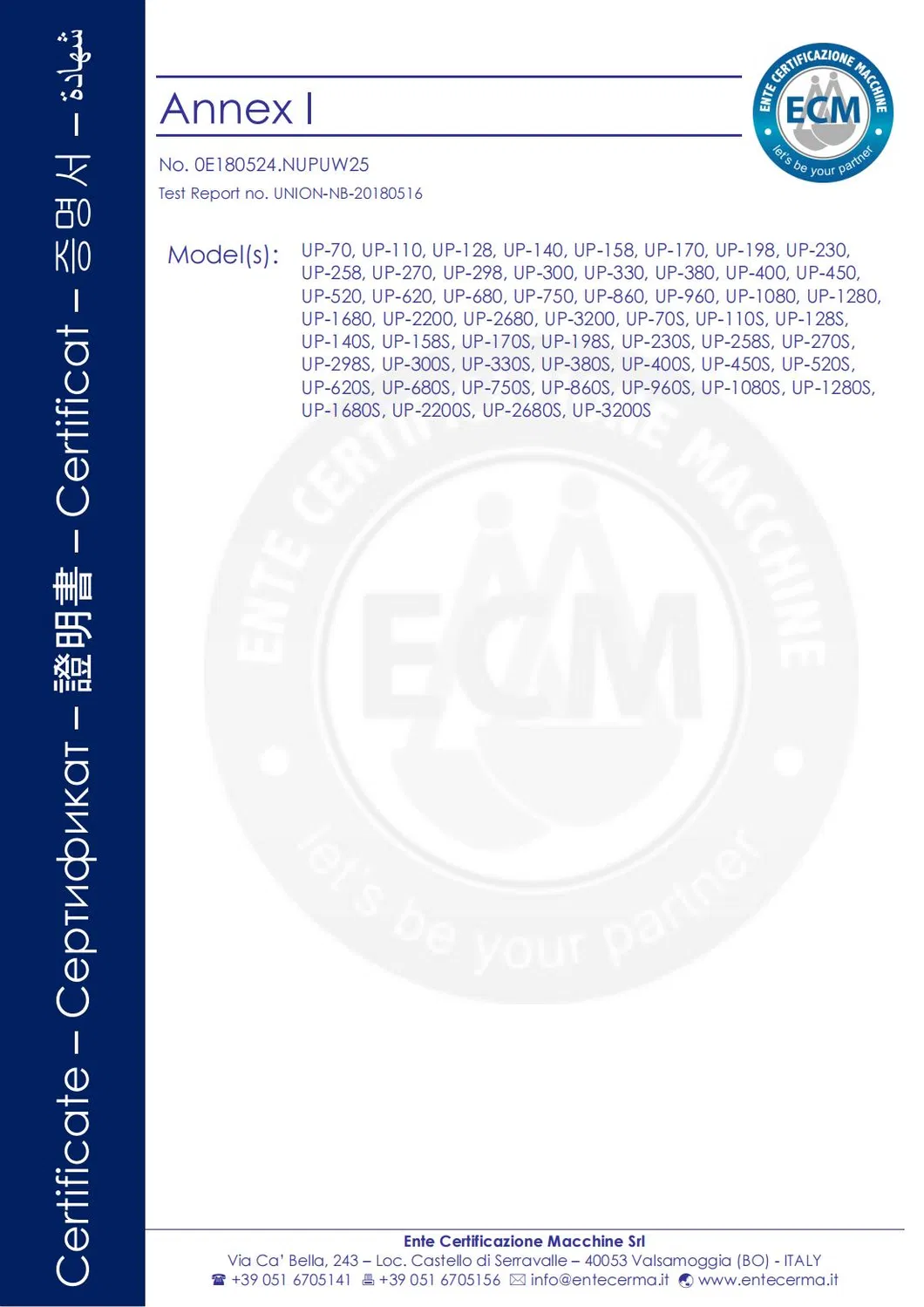

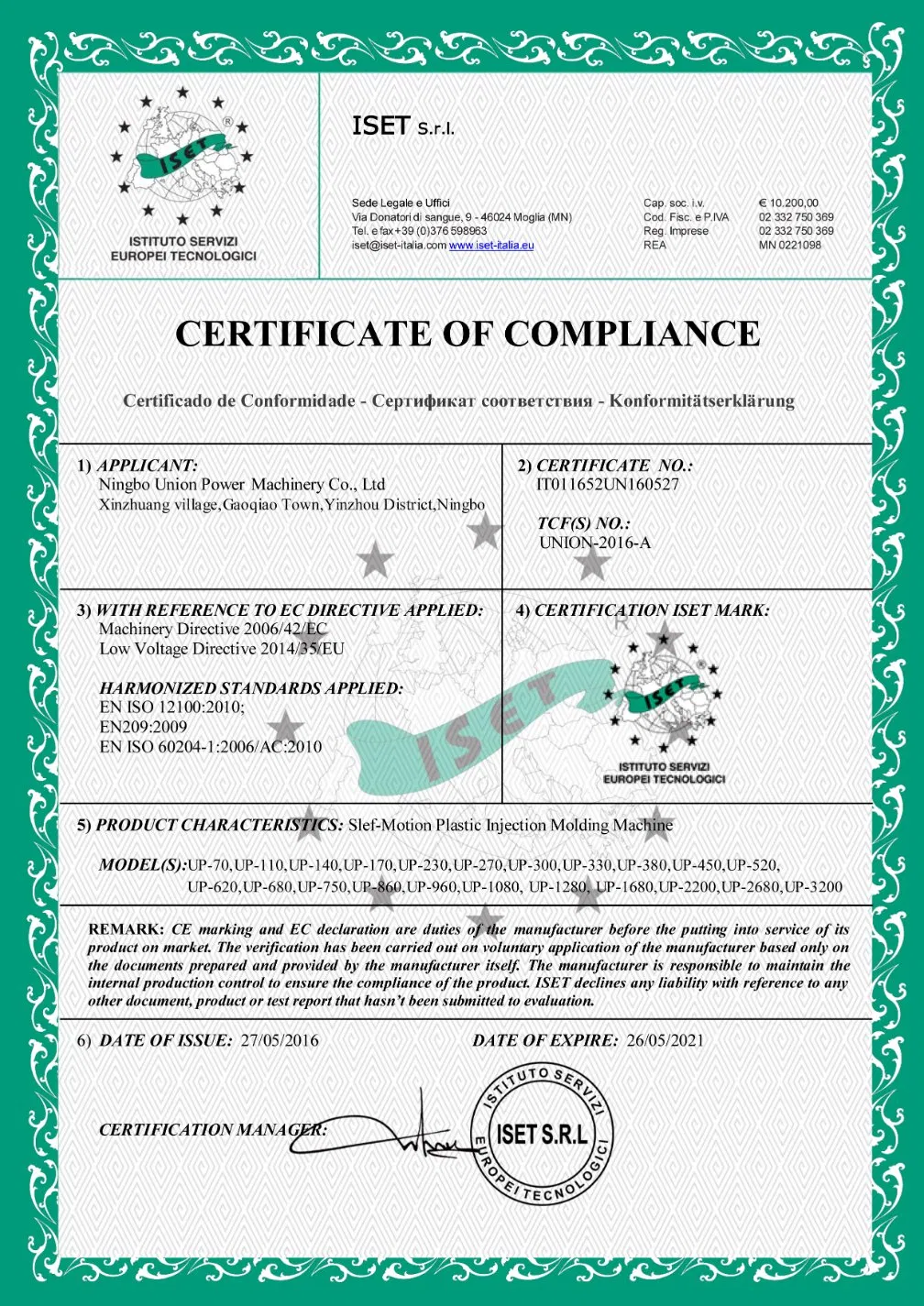

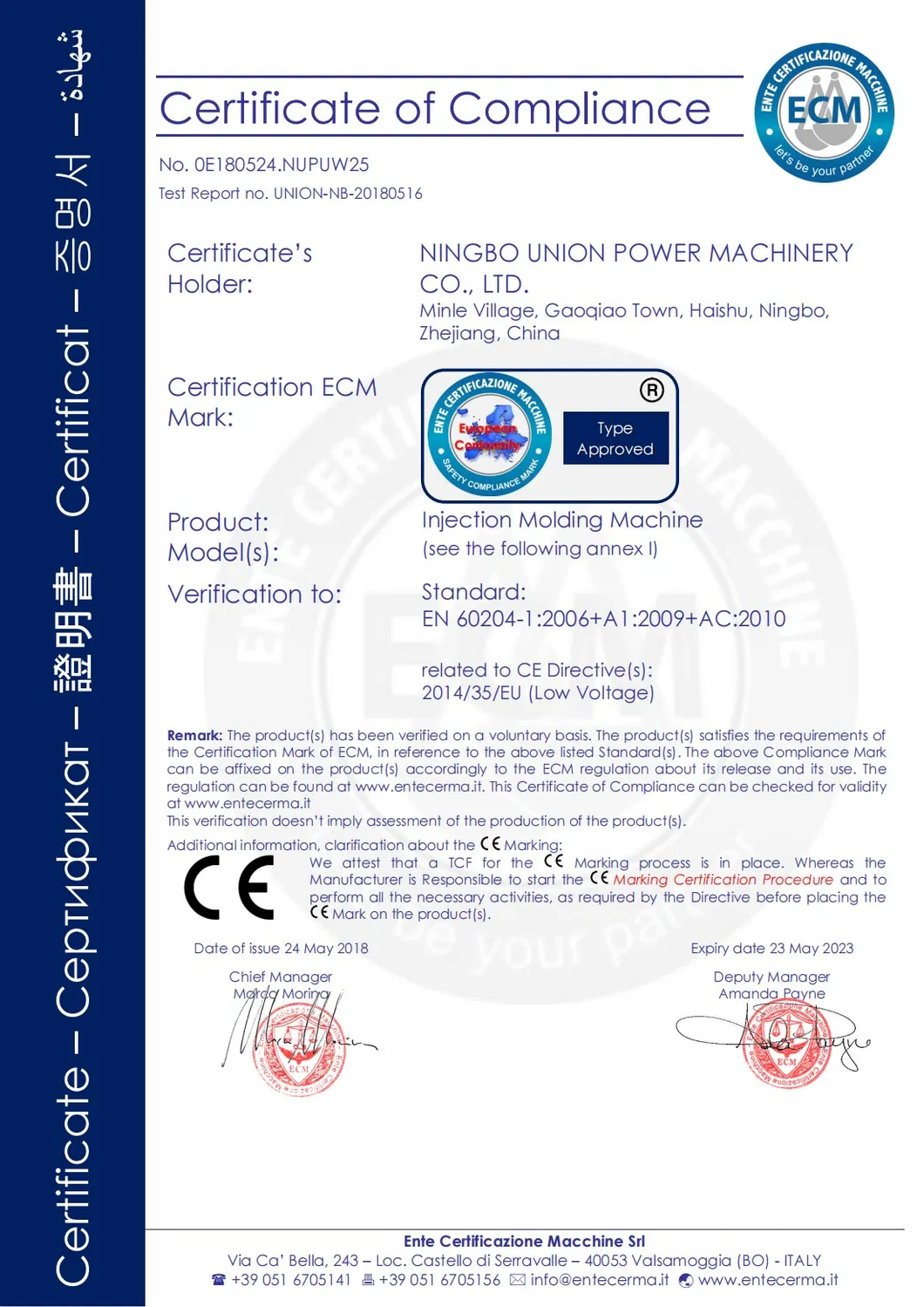

Q: What certifications do these machines have?

A: Our injection molding machines are manufactured under strict quality standards and hold CE and ISO9001:2008 certifications.

Q: Can the machine handle PVC and PET materials?

A: Yes, our machine family includes specialized versions specifically designed for PVC and PET injection molding, in addition to standard thermoplastic models.

Q: What is the automation level of the UP-300T?

A: The UP-300T is a fully automatic, computerized horizontal injection molding machine designed for high efficiency and precision.

Q: What is the required tank volume and system pressure?

A: The system operates at a pressure of 16MPa and features a 400L oil tank volume for stable hydraulic performance.
