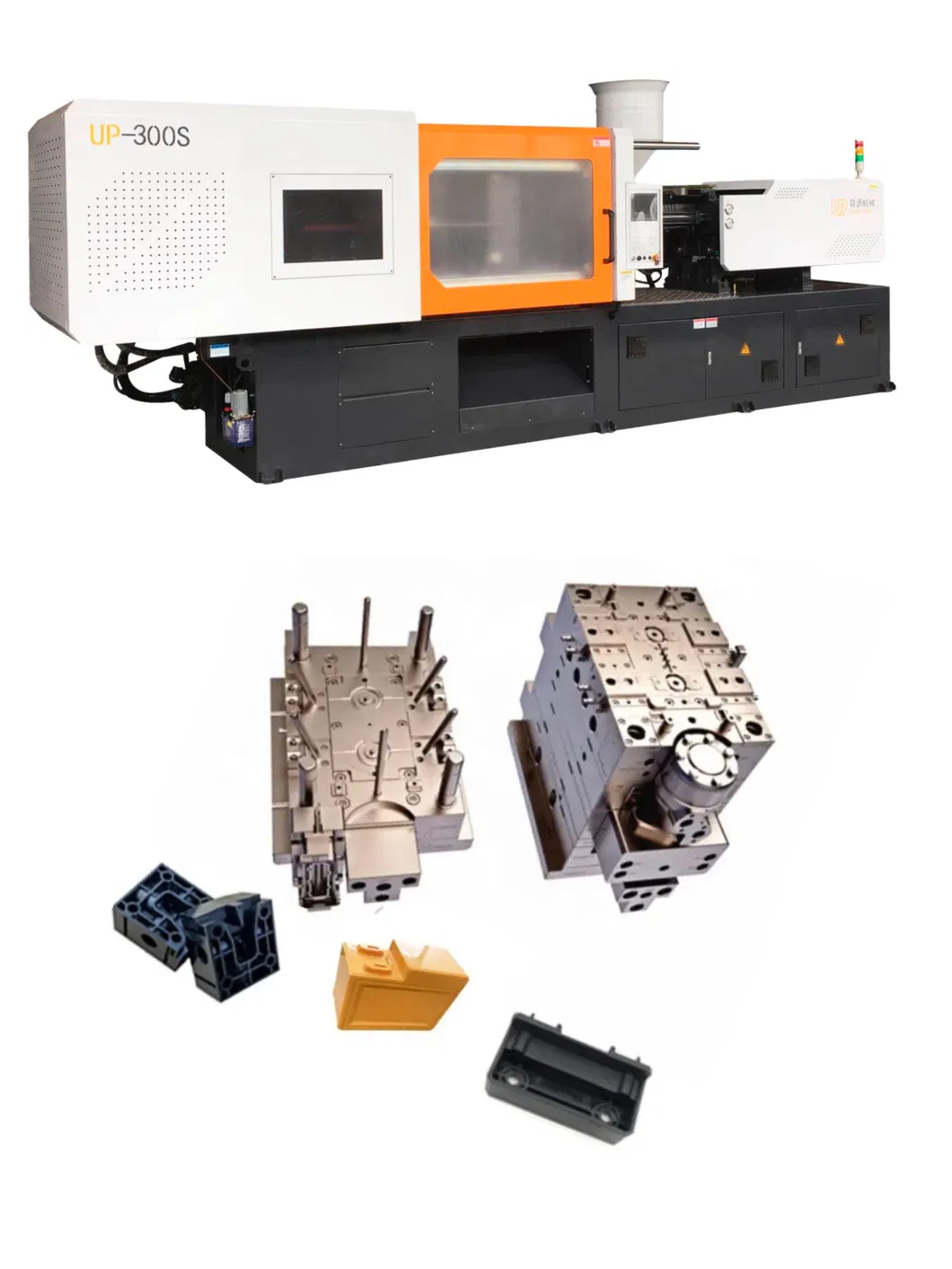

Specializing in manufacturing high-performance injection molding machines, molds, and auxiliary equipment. Our machinery range covers clamping forces from 50 to 3000 tons, designed for diverse industrial applications.
Machine Family Includes:

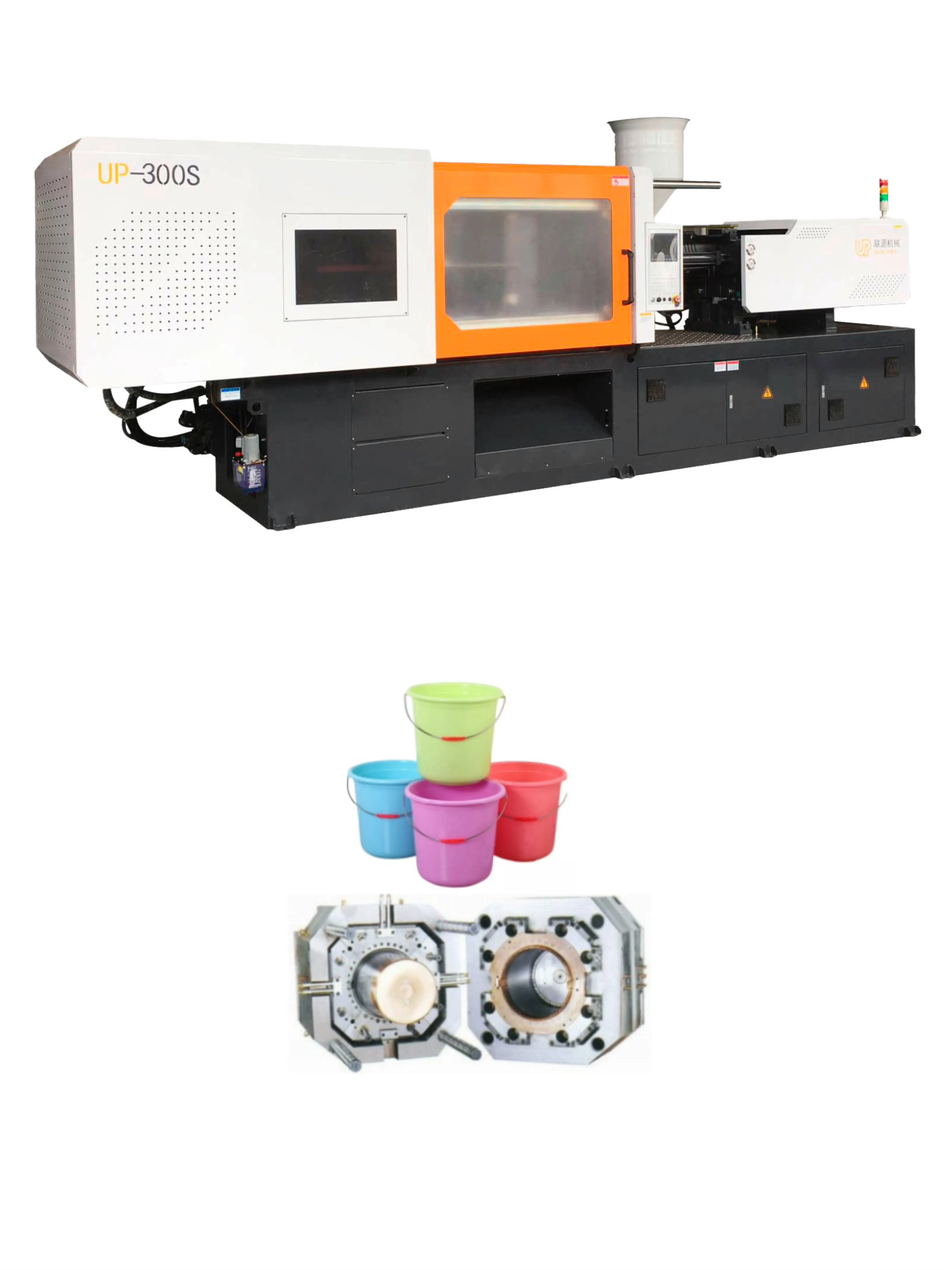

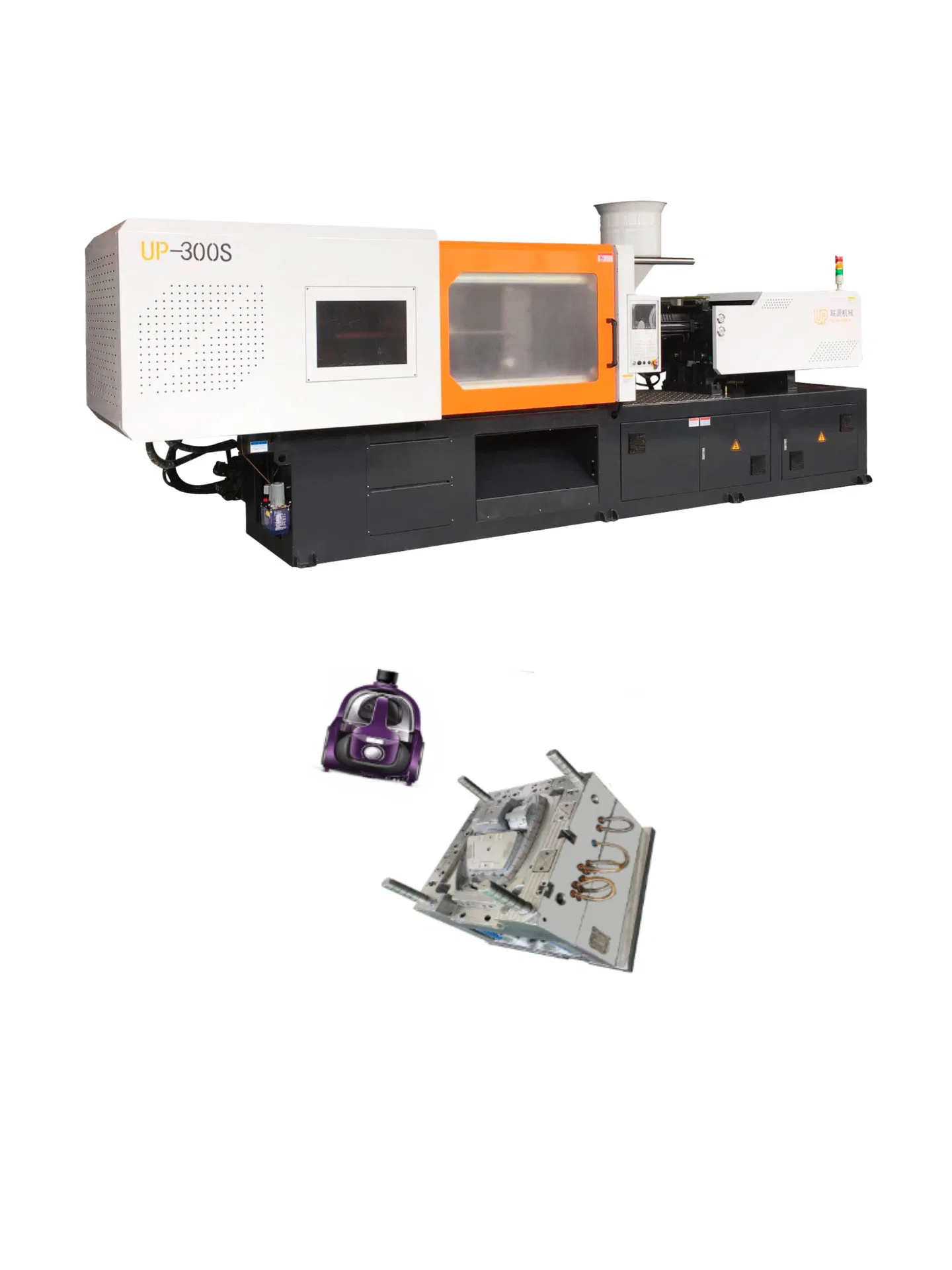

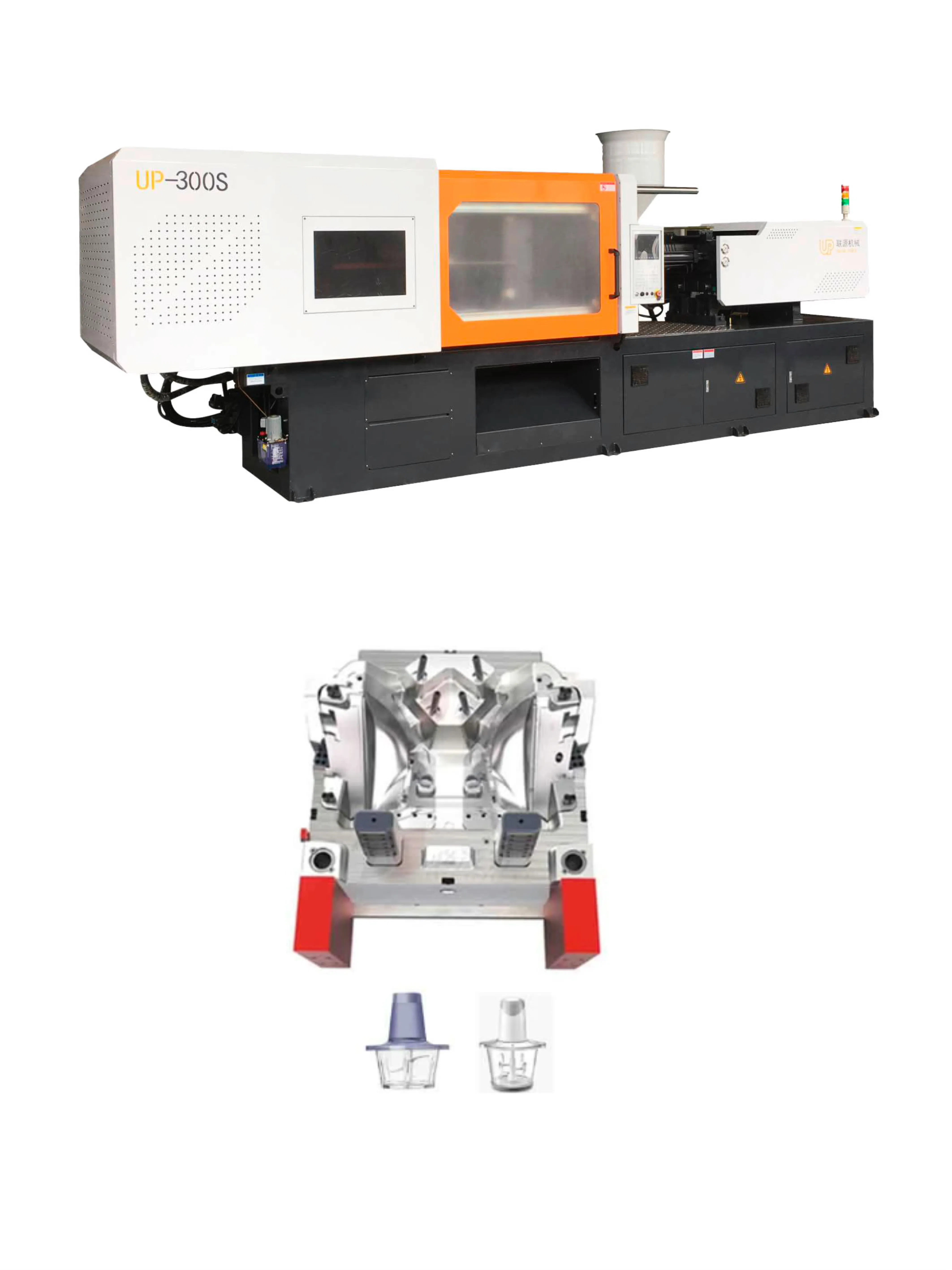

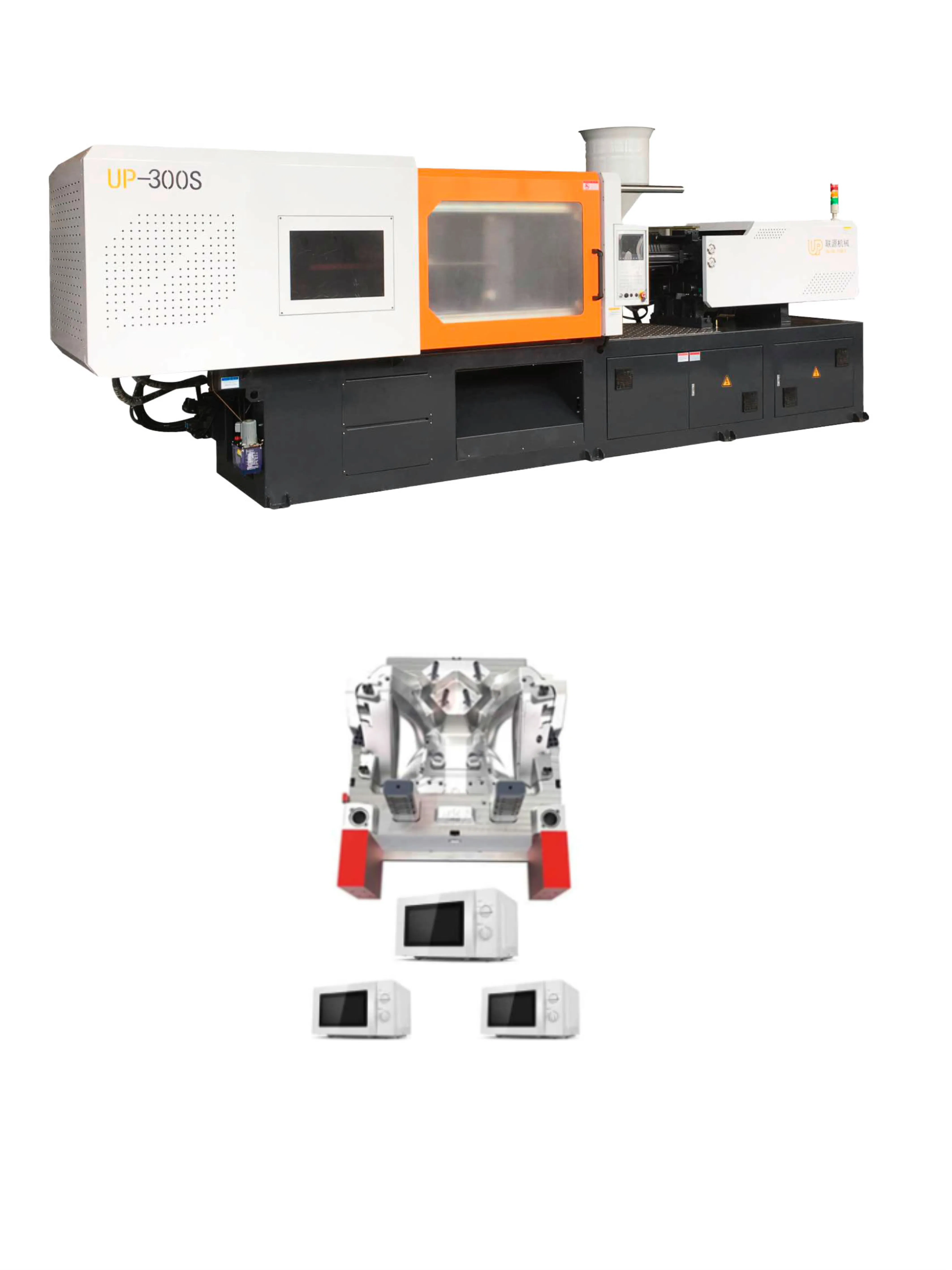

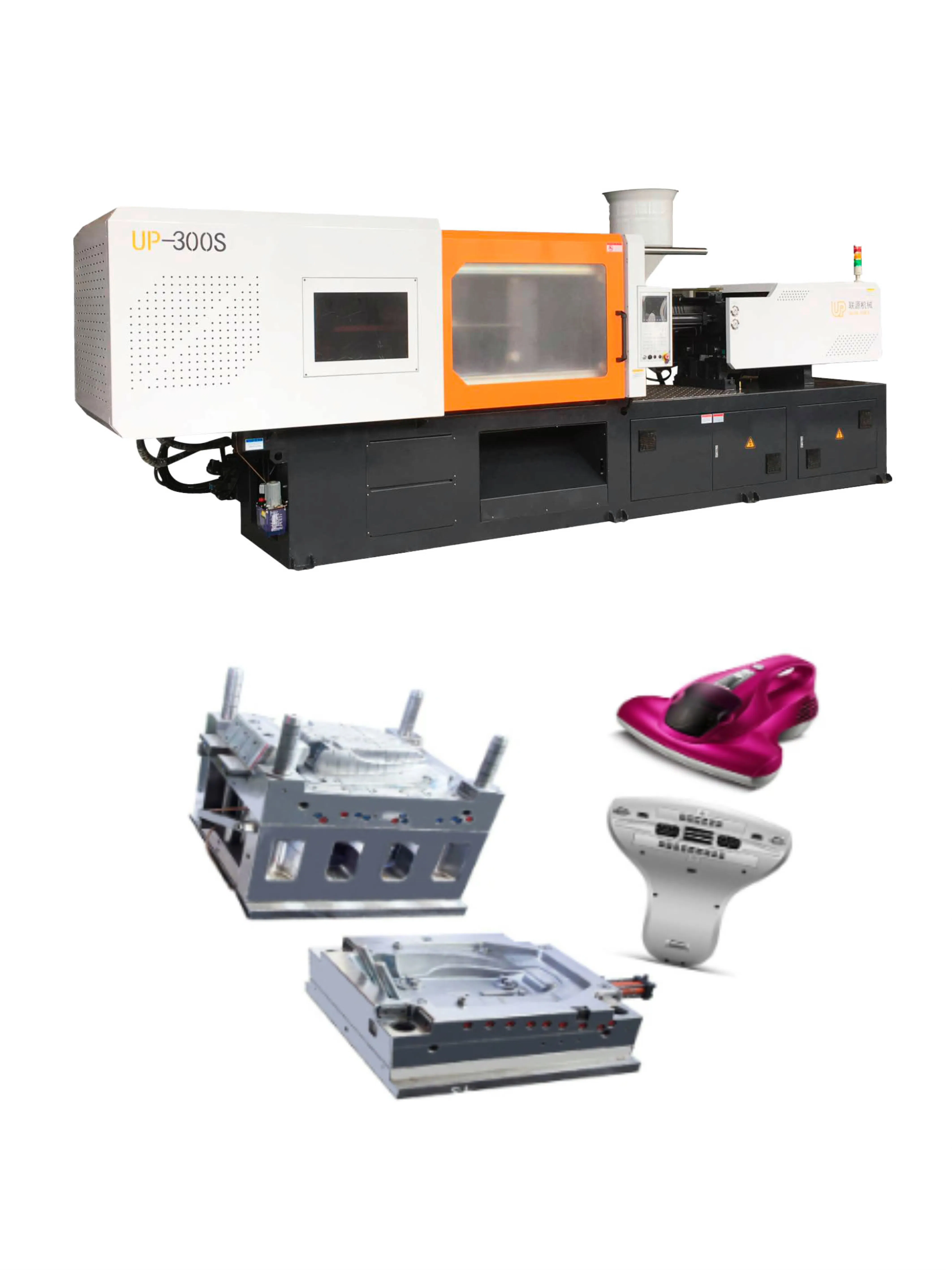

| Technical Parameters | Model UP-300T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection pressure (Mpa) | 170 | 145 | 107 |
| Clamping Unit | |||
| Clamping force (KN) | 3000 | ||
| Open stroke (mm) | 600 | ||
| Max Mold height (mm) | 620 | ||
| Space between tie bars (mm) | 620*620 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor power (KW) | 30(29) | ||
| Machine weight (T) | 9.3 | ||
A1: The model UP-300T provides a robust clamping force of 3000 KN.
A2: This machine is specifically designed for thermoplastic materials using a horizontal screw-type plasticizing method.

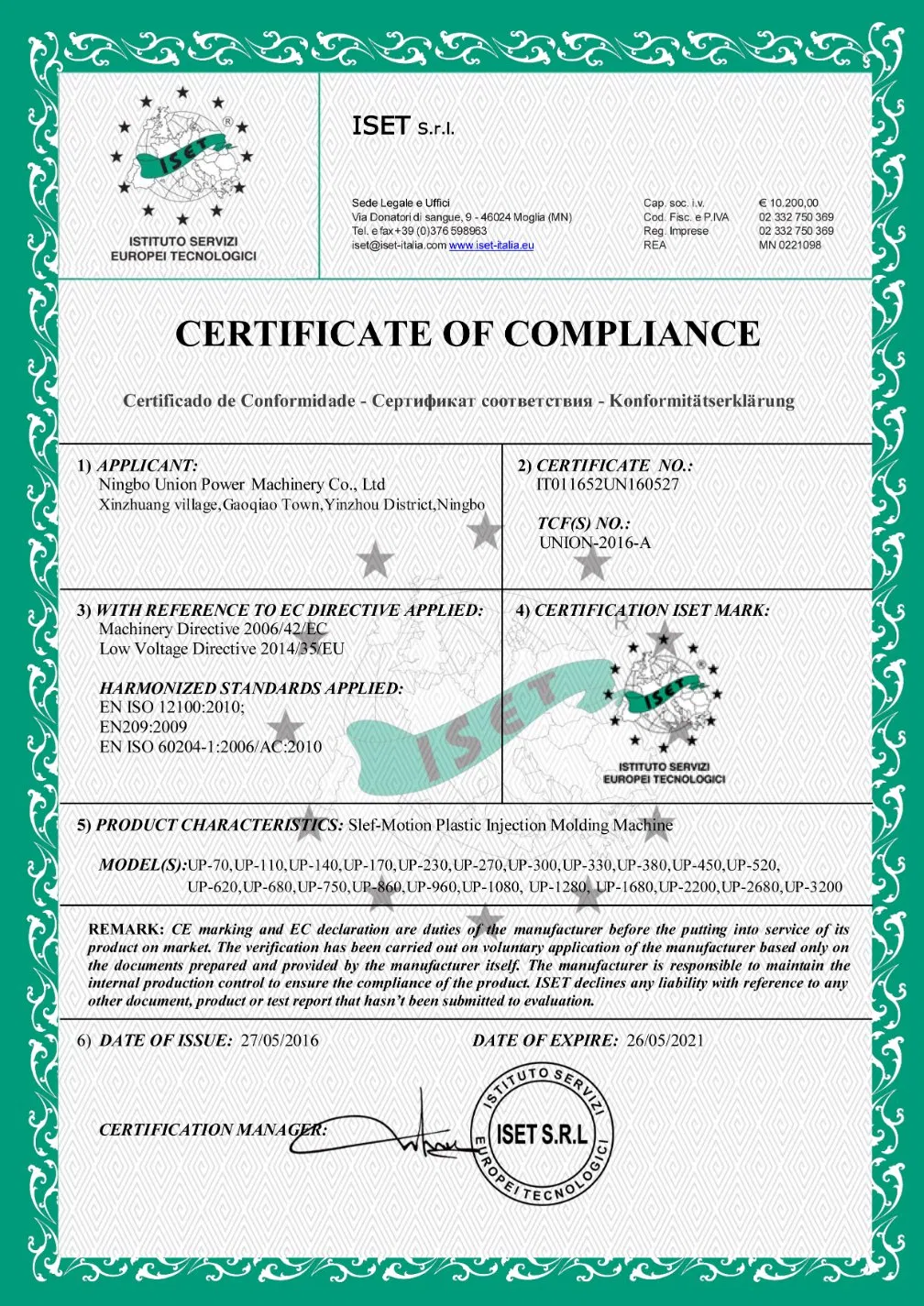

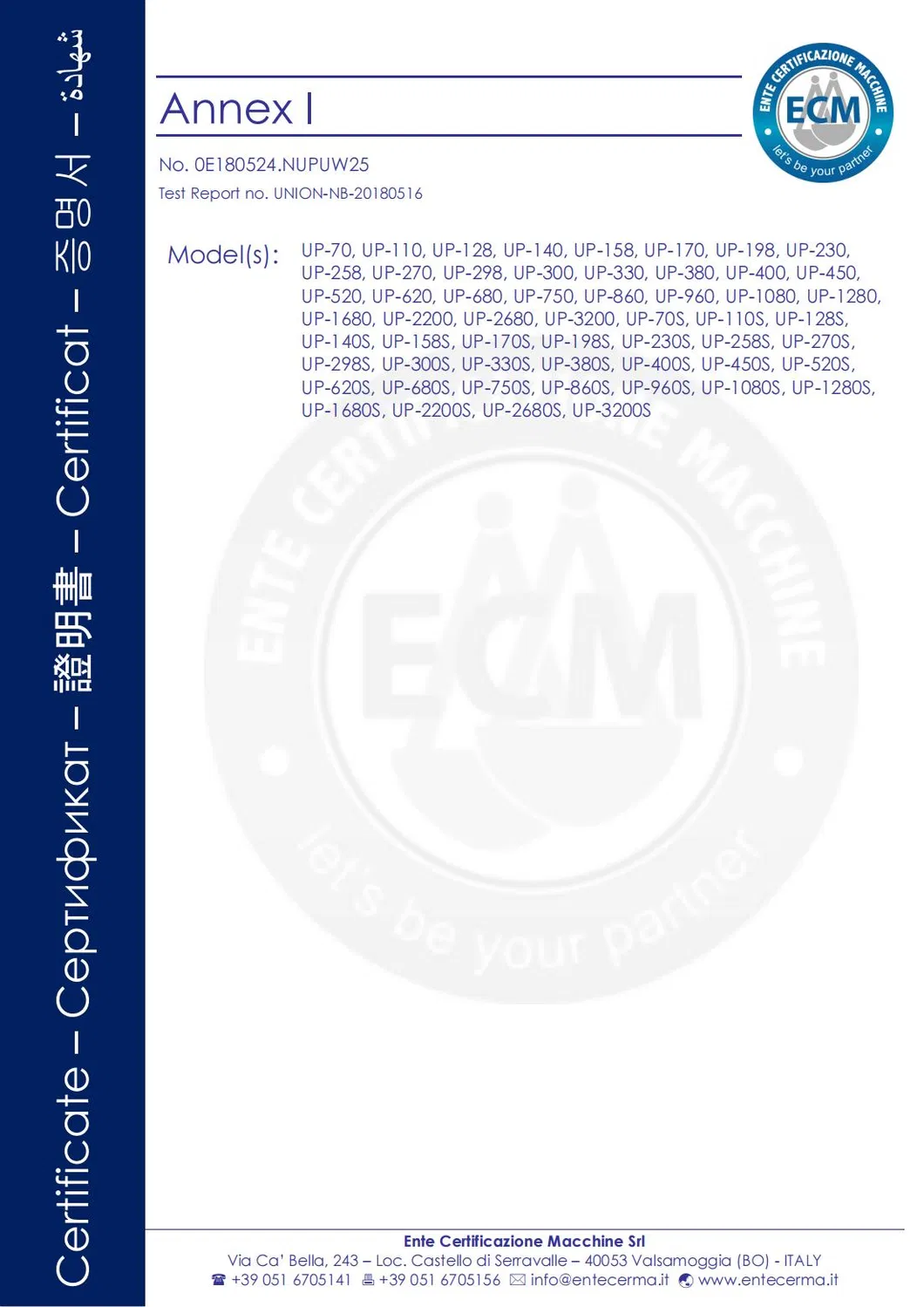

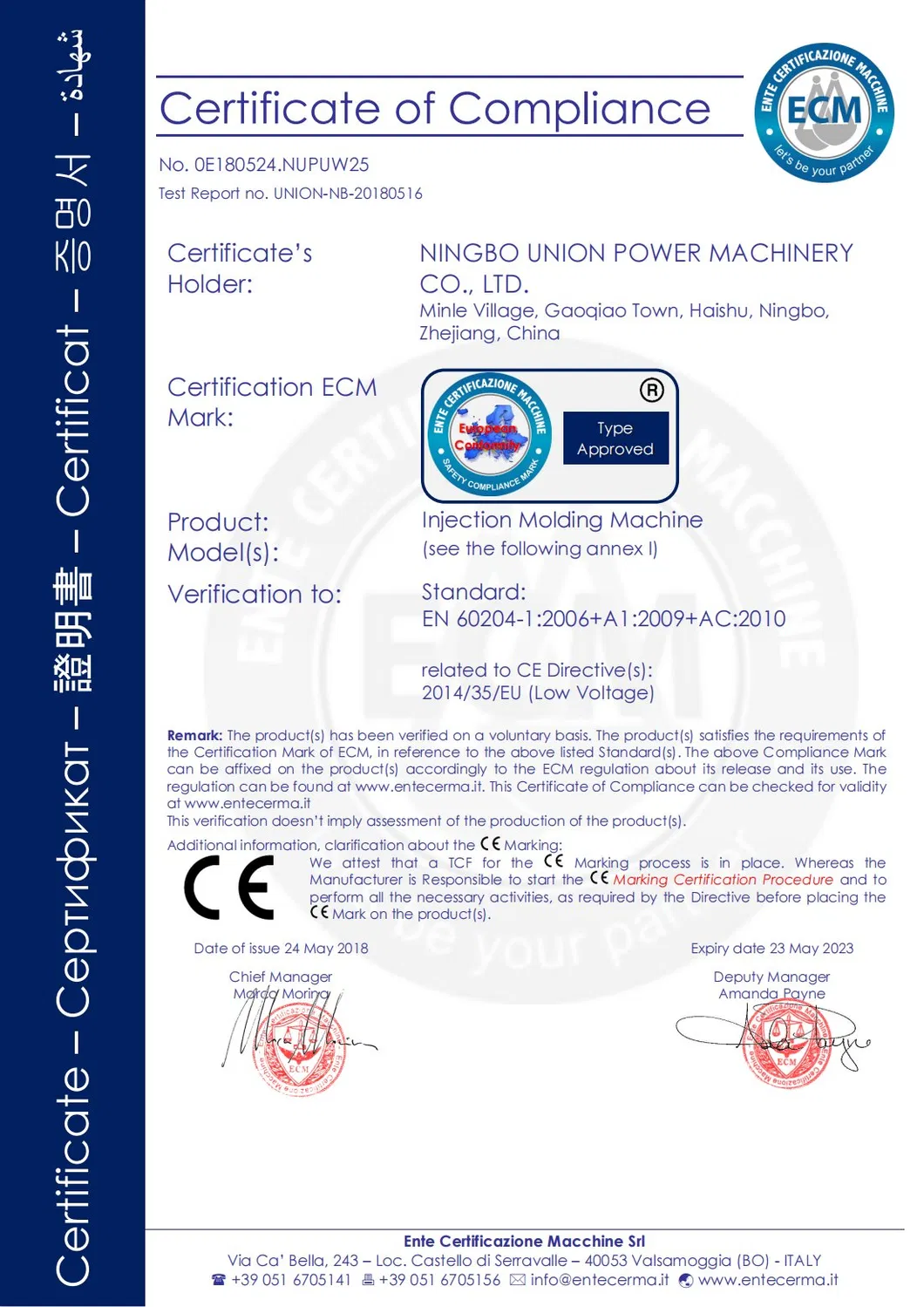

A3: Yes, our equipment is fully certified with CE and ISO9001:2008 standards to ensure quality and safety.
A4: Yes, the machine is fully automatic and computerized, providing precision and efficiency in production.
A5: The machine dimensions are approximately 6.3m x 1.75m x 2.37m, and it requires a stable foundation for its 18.5t weight.
A6: We offer several specialized types including PVC and PET injection machines, Two-Color ejectors, and fully electric or servo-driven models.
