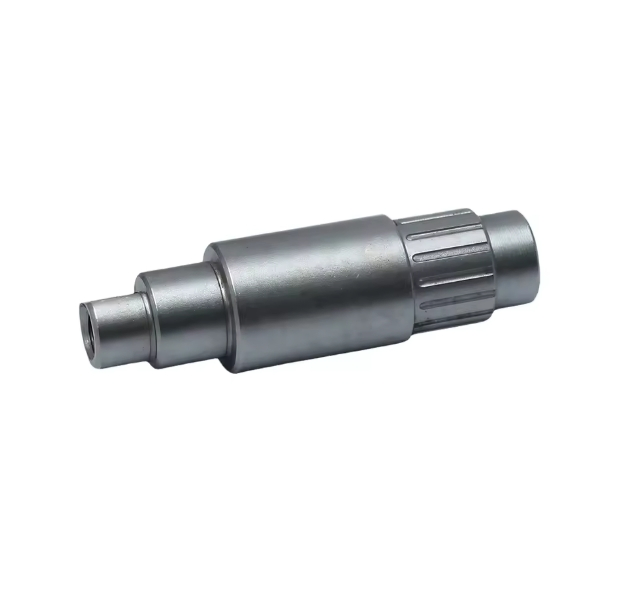

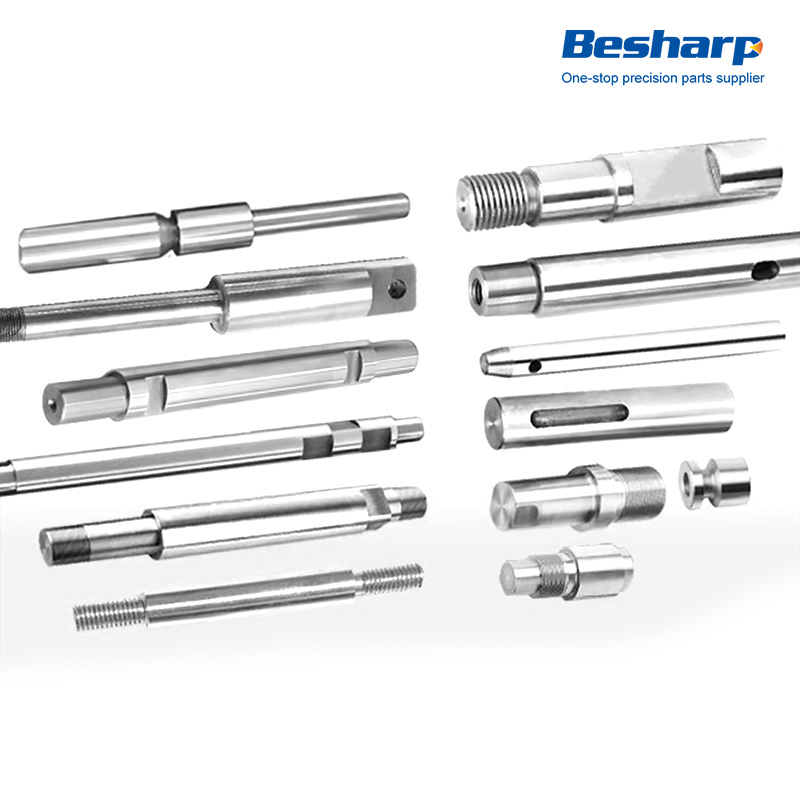

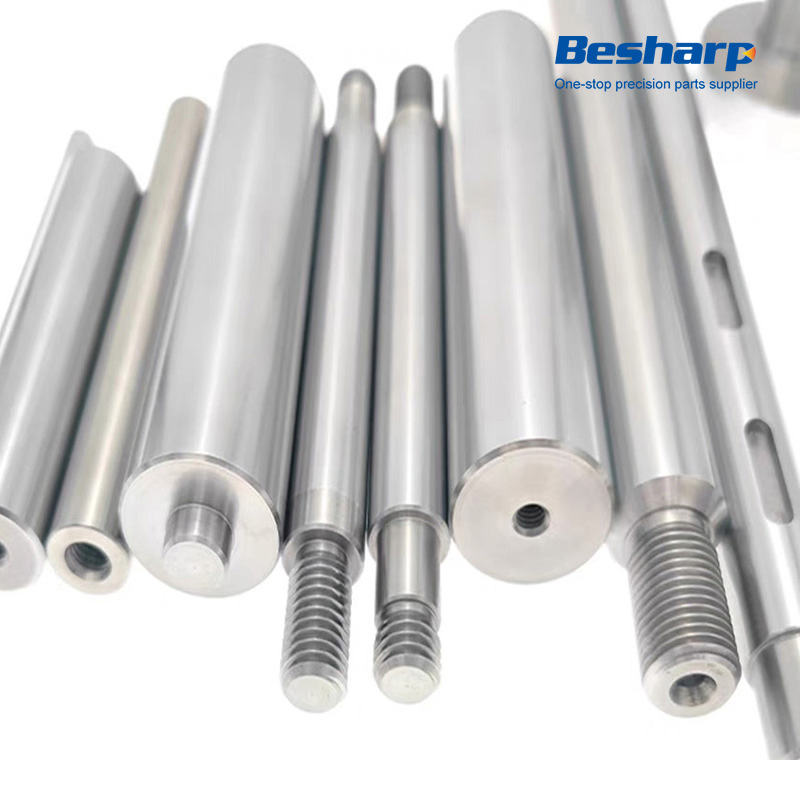

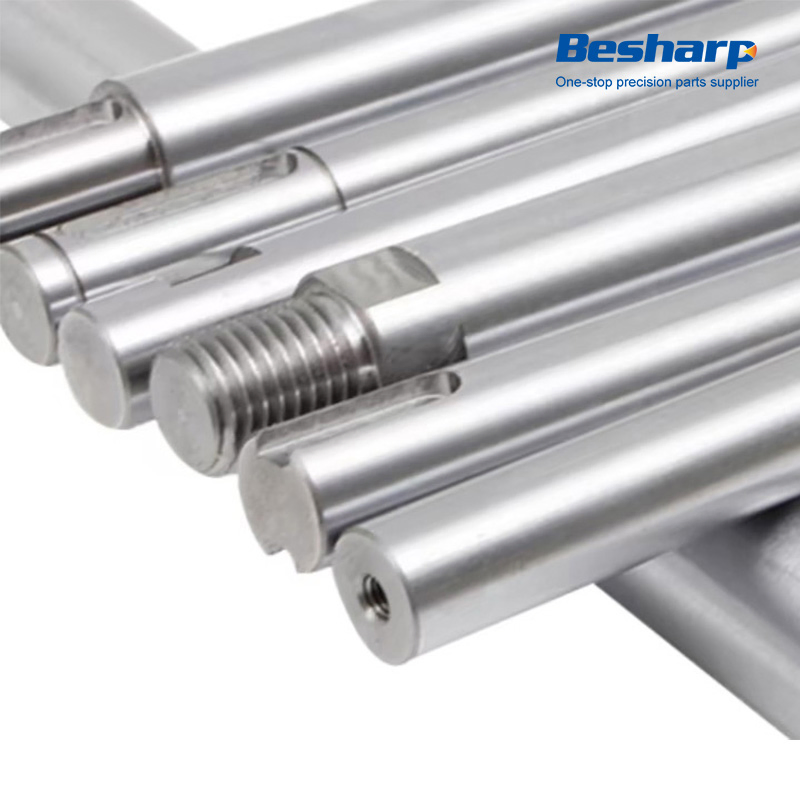

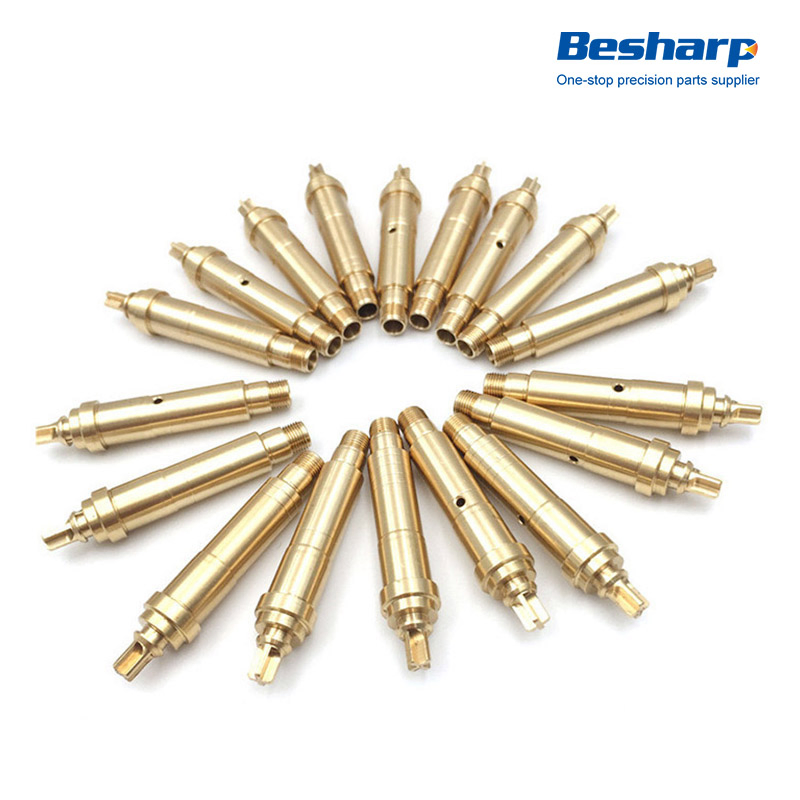

Durable Auto Components for Motorcycles and Heavy-Duty Applications

Still deciding? Get samples of $ !
Order Sample

Product Description

📋Product Overview
Model NO.
JLT-SF040001
Accuracy
IT01-IT5
Roughness
0.63-0.16μm
Tolerance
0.005mm
Process
CNC Machining
Material
Alloy Steel
Axis Shape
Straight / Stepped
Capacity
100,000 PCS/Month
Transmission Shaft Banner
📈Product Gallery

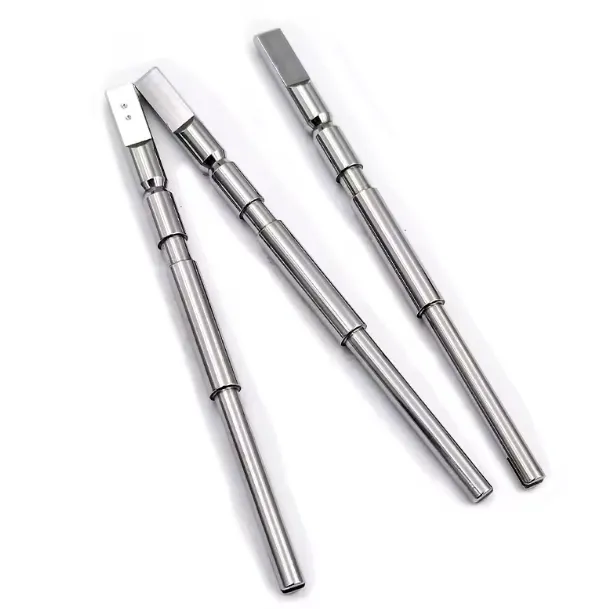

Shaft Component 1

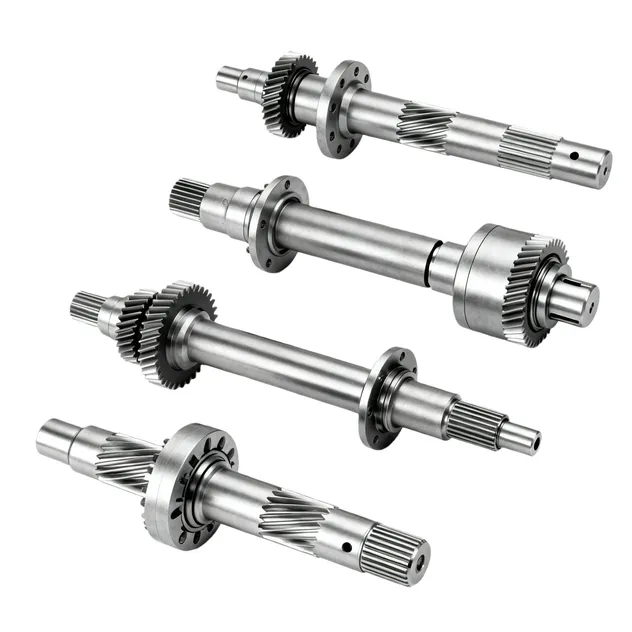

Shaft Component 2

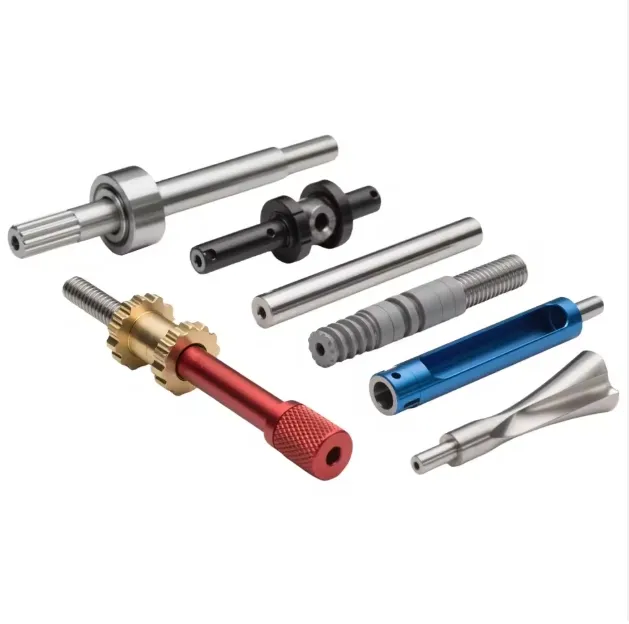

Shaft Component 3
📝Technical Specifications
Materials Carbon steel (10#, 45#, etc.), Alloy Steel (42CrMo, 4140, SCM440), Stainless Steel (304, 316L, 17-4PH), Brass, Aluminum
Diameter Range Ø0.3 - Ø125 mm
Precision Tolerance 0.002mm
Roundness 0.005mm
Straightness 0.005mm
Length 2mm - 1000mm
Heat Treatment Oil Quenching, High frequency quenching, Carburization, Vacuum Heat treatment
Surface Finish Nickel/Zinc/Chrome plating, Passivation, Anodizing, Black coating
🔥Popular Solutions

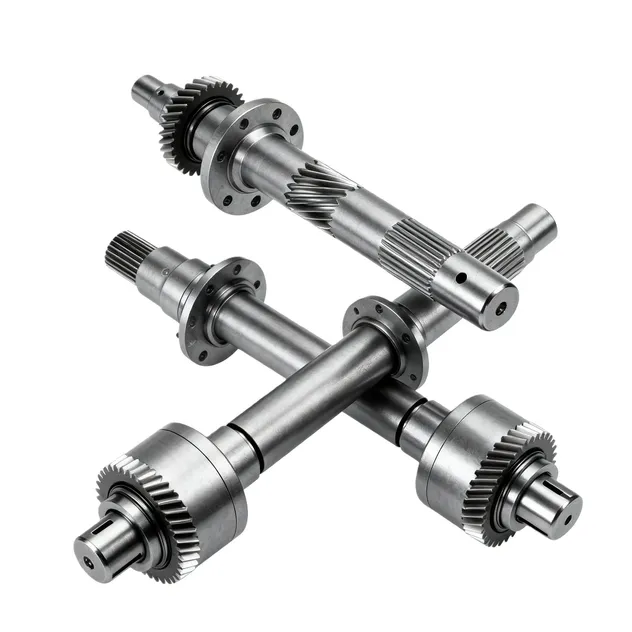

Hot Sale Shaft 1

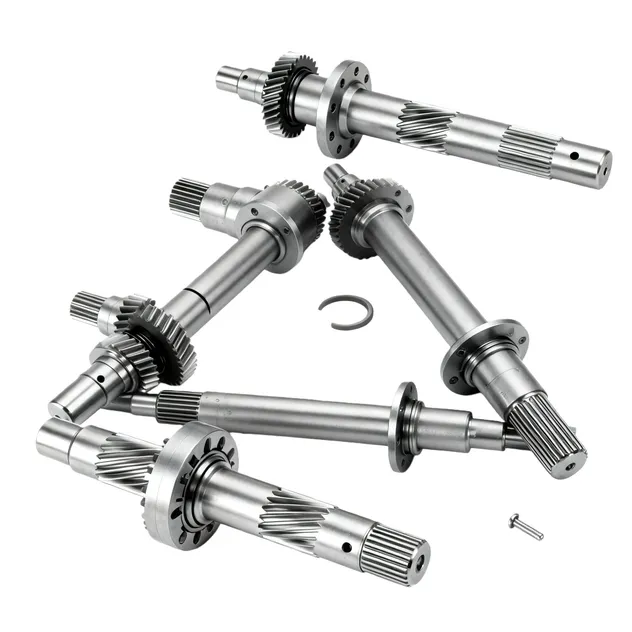

Hot Sale Shaft 2

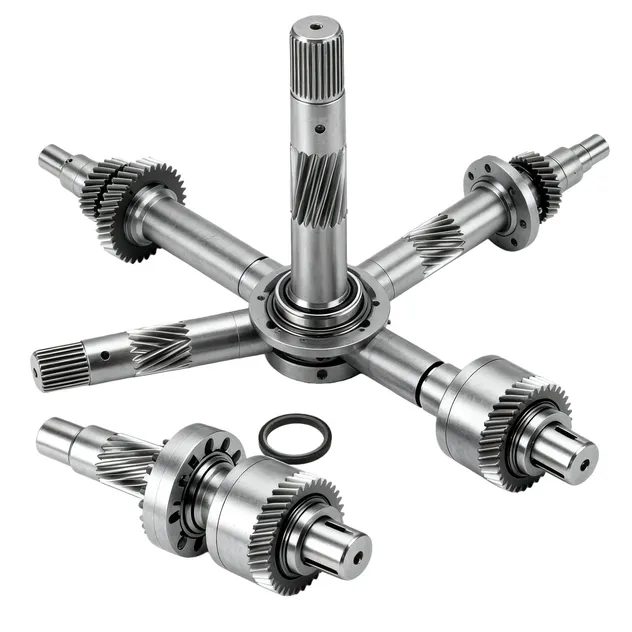

Hot Sale Shaft 3
📦Packaging & Logistics
Packaging Detail 1
Packaging Detail 2

Our packaging is engineered for maximum protection. We use high-quality cardboard boxes and sturdy wooden crates for fragile or heavy items. Internal cushioning includes foam, bubble wrap, or air cushions to prevent transit damage. Each package is clearly labeled with specifications and quantity for easy identification.

🏭Manufacturing Capabilities

We provide precision component machining and tailored technical solutions across industries including Defense, Automotive, Medical Devices, and Industrial Machinery. Our expertise covers CNC Machining, Stamping, and Powder Metallurgy, ensuring cost-effective production from concept to volume.

  • Quality: Full inspection with CMM and optical equipment.
  • Compliance: 100% adherence to technical drawings.
  • Services: Comprehensive OEM & ODM solutions.

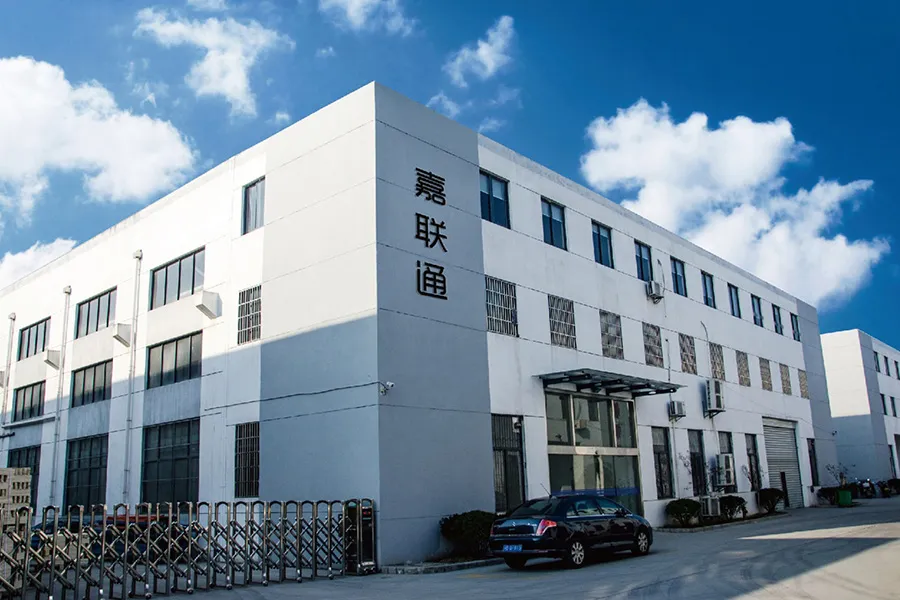

Manufacturing Facility

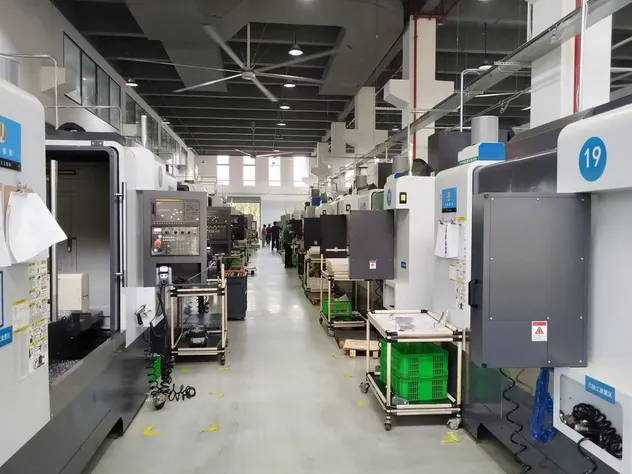

Facility 1

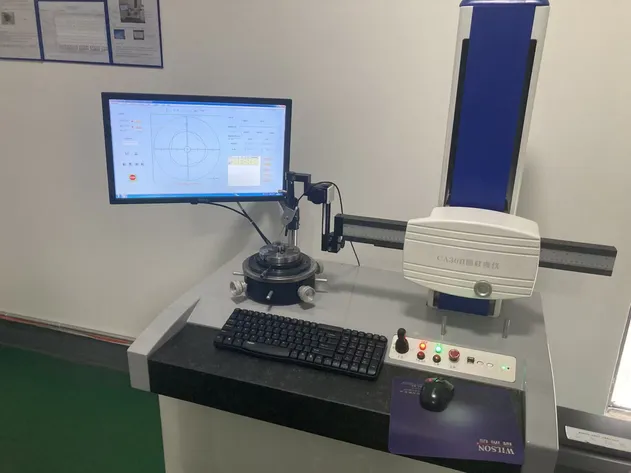

Facility 2

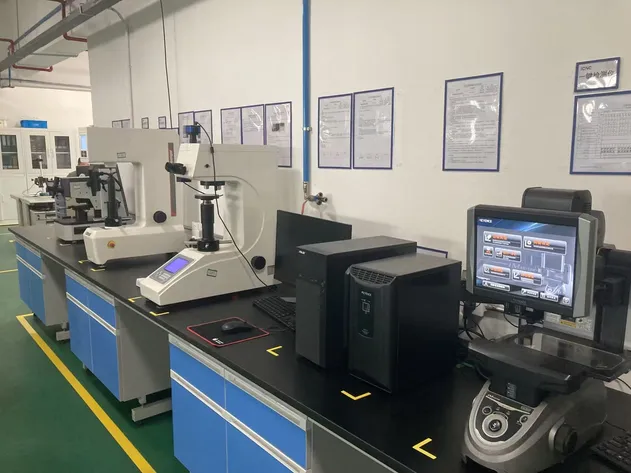

Facility 3
💬Global Recognition

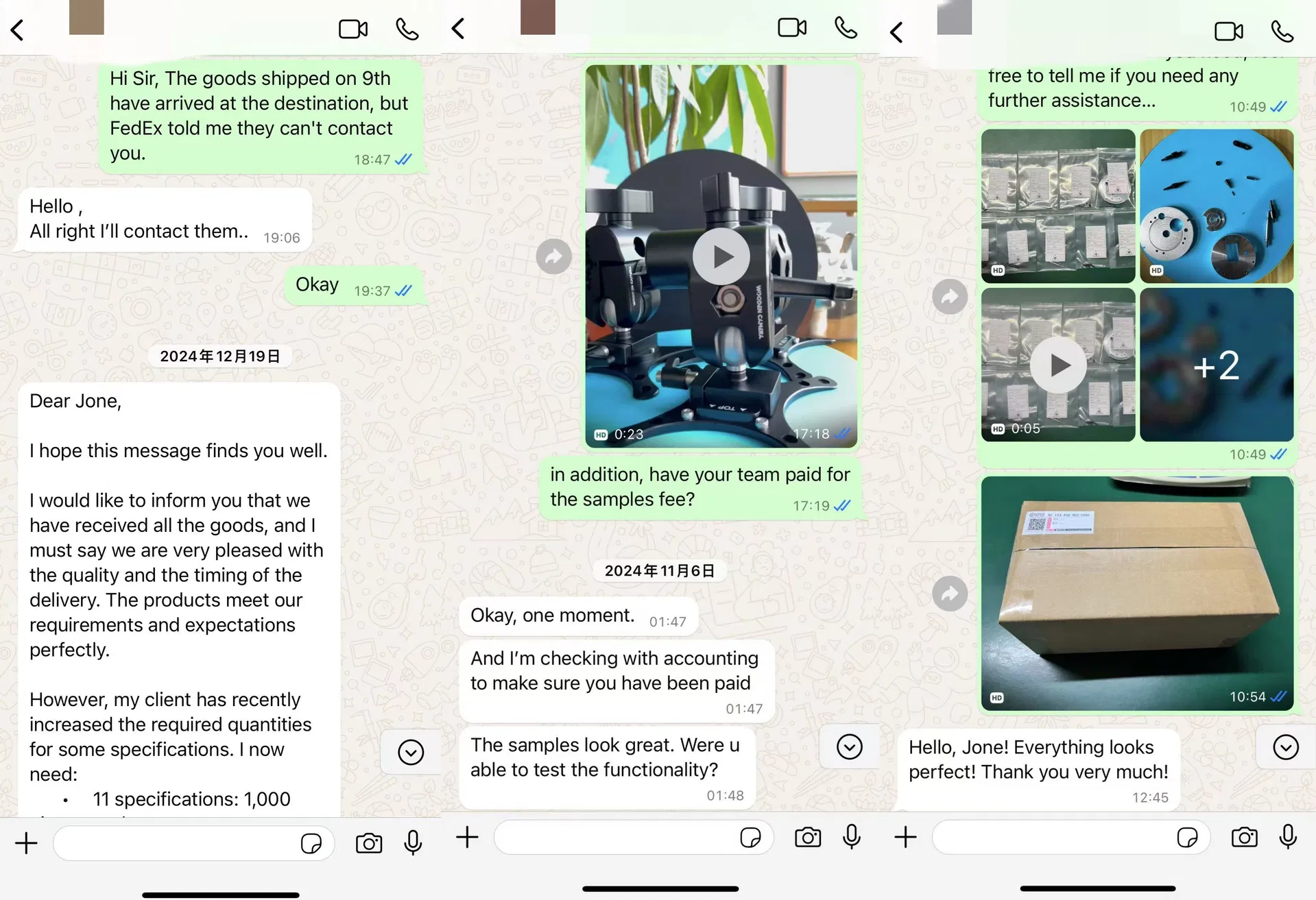

Customer Feedback Map
Frequently Asked Questions
What core information is needed for custom shafts?
Please provide 3D models (STP/IGS), 2D CAD drawings, material specifications (e.g., 42CrMo/17-4PH), tolerance requirements (IT5-IT7), and any DFM requirements.
What is the typical precision range for your shafts?
We achieve a shaft diameter precision of +0.005-0.01mm and concentricity ≤0.003mm using advanced CNC grinding and CMM calibration.
Which materials are best for high-performance shafts?
High-performance shafts often utilize 42CrMo alloy steel, 304/316L stainless steel, titanium alloys, or nitride steel for superior wear resistance.
How do you ensure the precision of shaft keyways?
We use broaching or wire EDM for keyway machining, controlling width tolerance to +0.015mm and parallelism to ≤0.01mm.
What post-processing treatments do you offer?
We provide heat treatments (carburizing/nitriding), surface grinding, and dynamic balancing (up to G2.5 grade for high-speed applications).
How is the quality of the shafts verified?
Quality is verified using CMM for dimensional inspection, ultrasonic flaw detection (UT) for internal defects, and Rockwell/Brinell hardness testing.
