CE Certified CNC for Composite Diagnostic Equipment Parts

Customization:	Available
After-sales Service:	Life Time
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

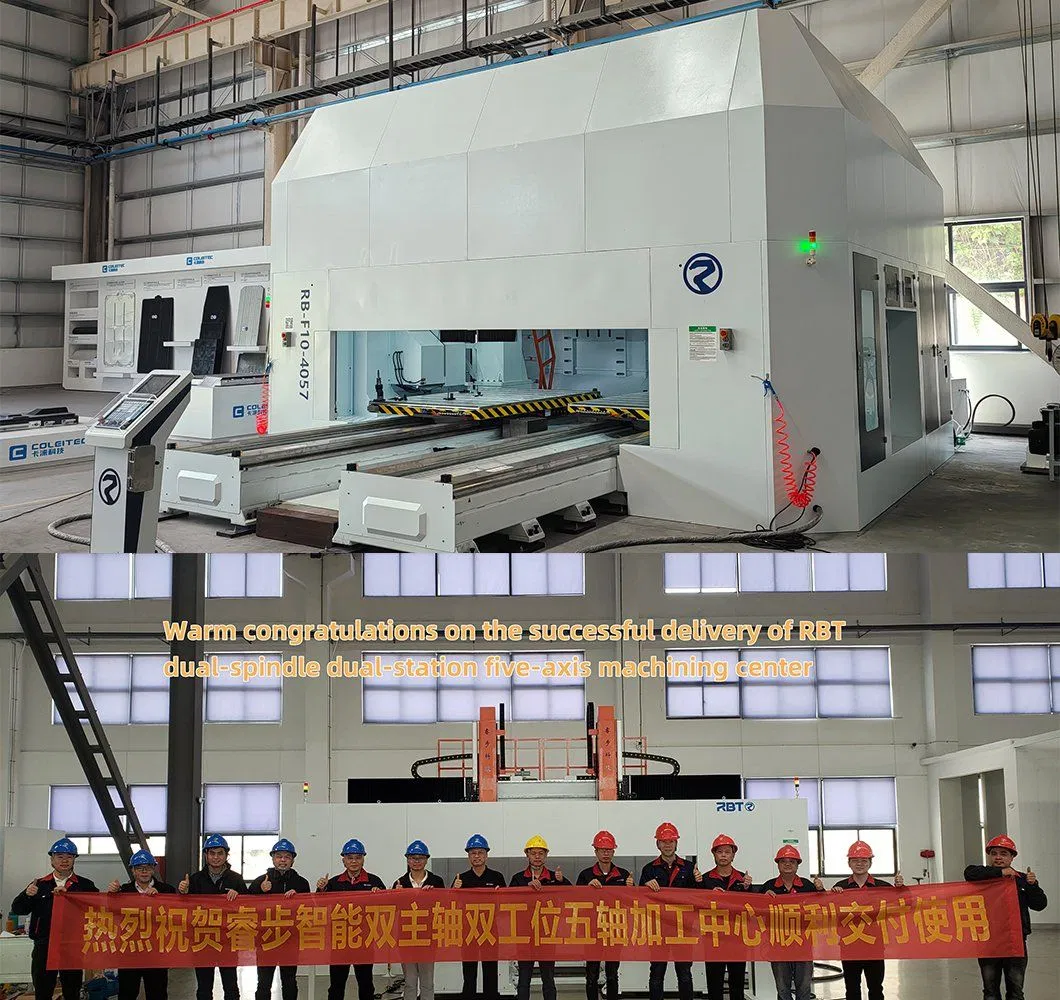

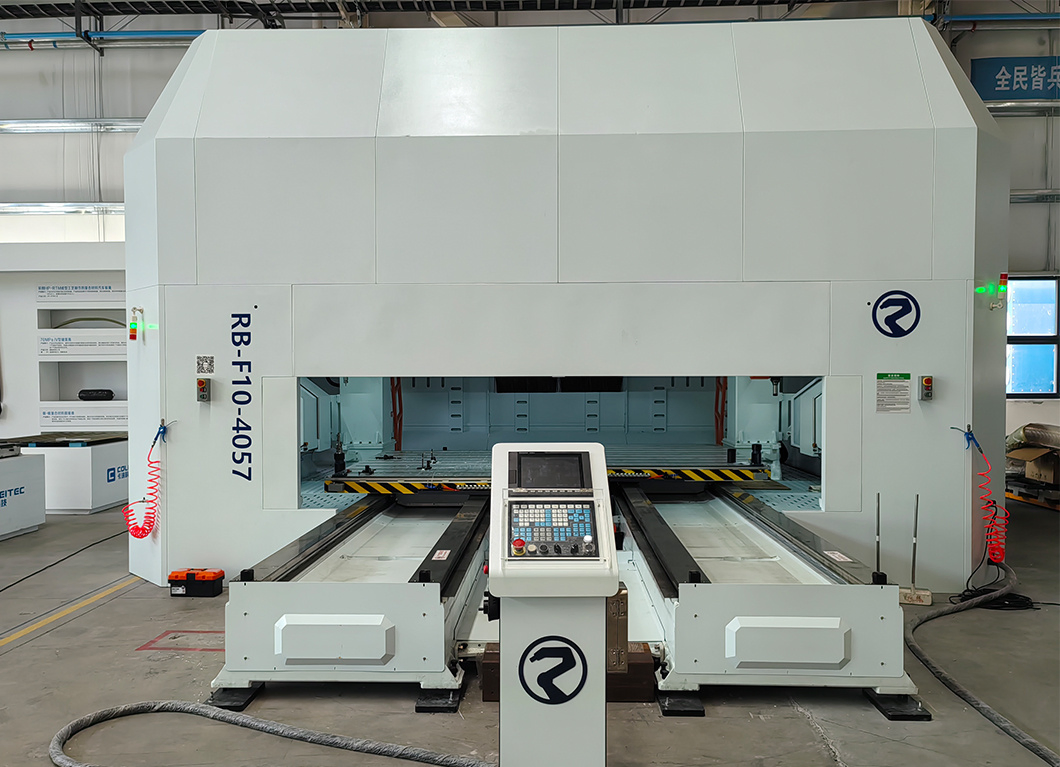

Model NO.RB-F10-4057-Z09

ApplicationNon-Metal

Xyz Travel4000*5700*900mm

Precision0.01~0.02(mm)

CertificationCE, ISO 9001

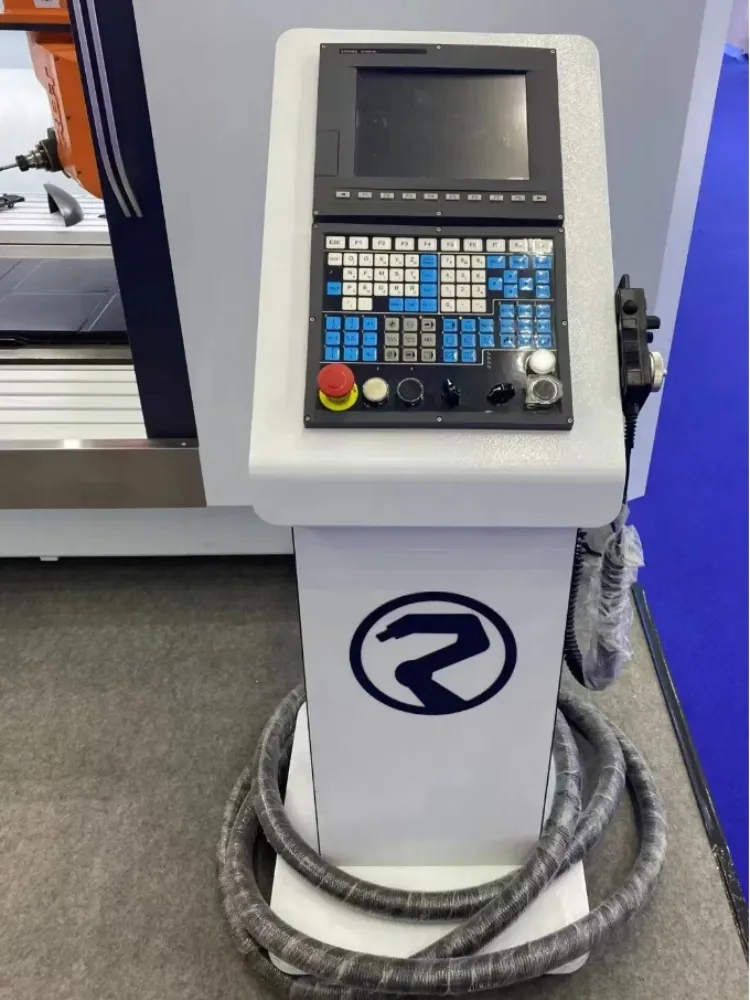

Control SystemTaiwan Syntec

AutomationAutomatic

Spindle Power8.5kw~20kw

★

Product Highlights

SYNTEC five-axis linkage CNC system for complex surface processing.
Easy workpiece clamping without specialized fixtures.
C, B-axis rotary processing reduces dead angles for complex parts.
High processing precision with efficient and accurate positioning.

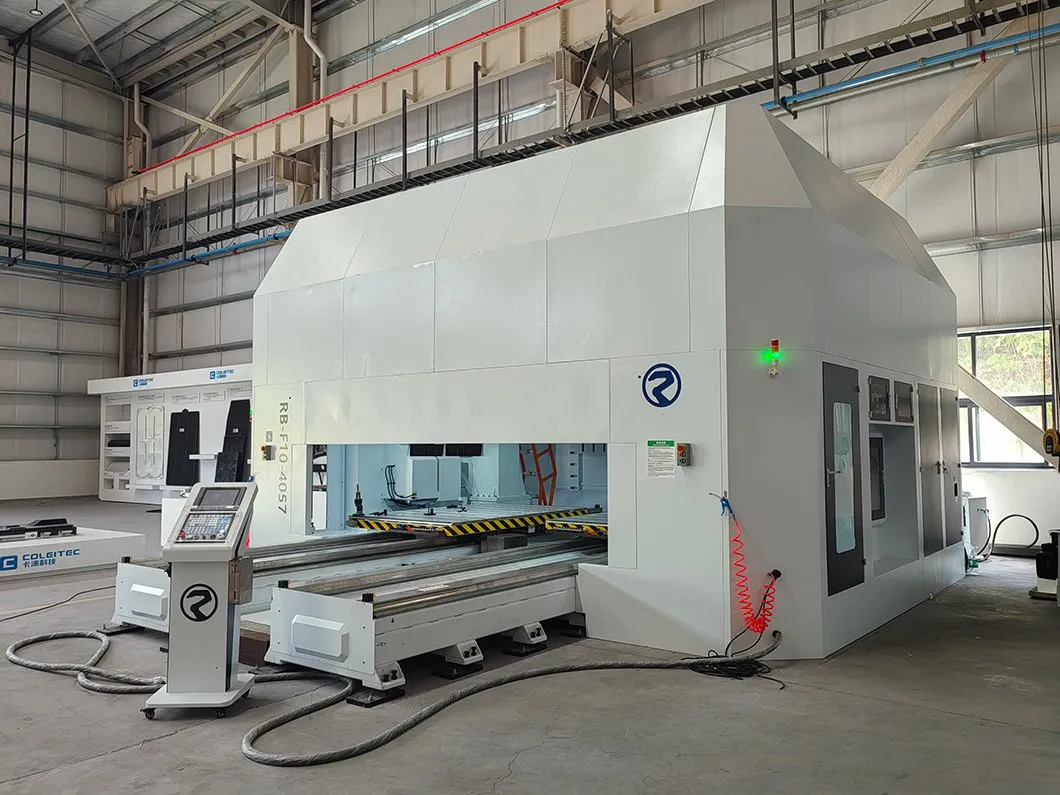

Equipped with dust collection, automatic tool change, and RTCP functions.

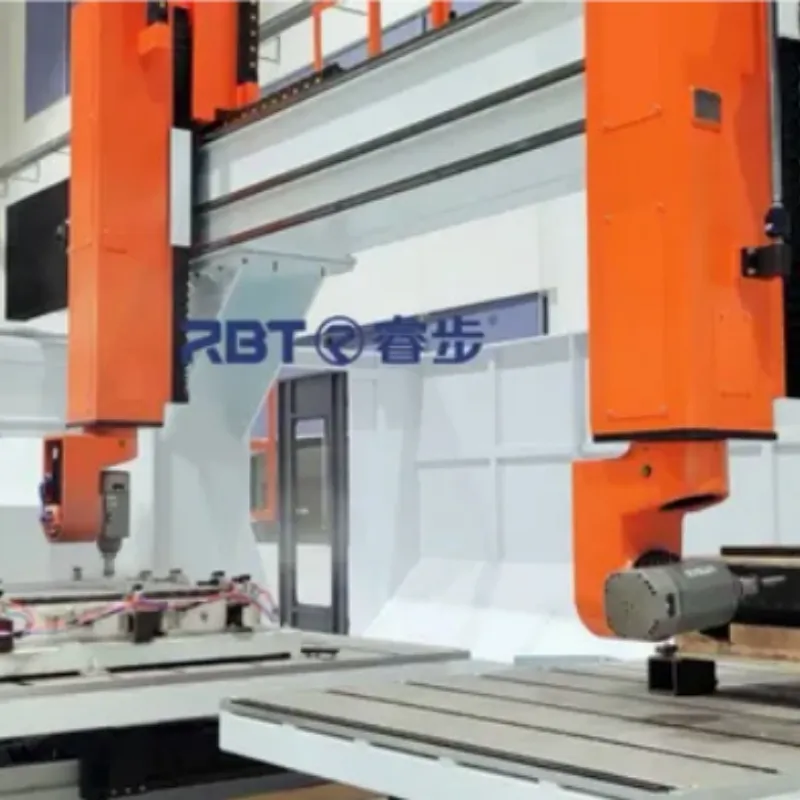

Dual independent cutting platforms for continuous workflow or large workpiece processing.

📷

Product Gallery

⚙

Technical Parameters

Component	Specifications

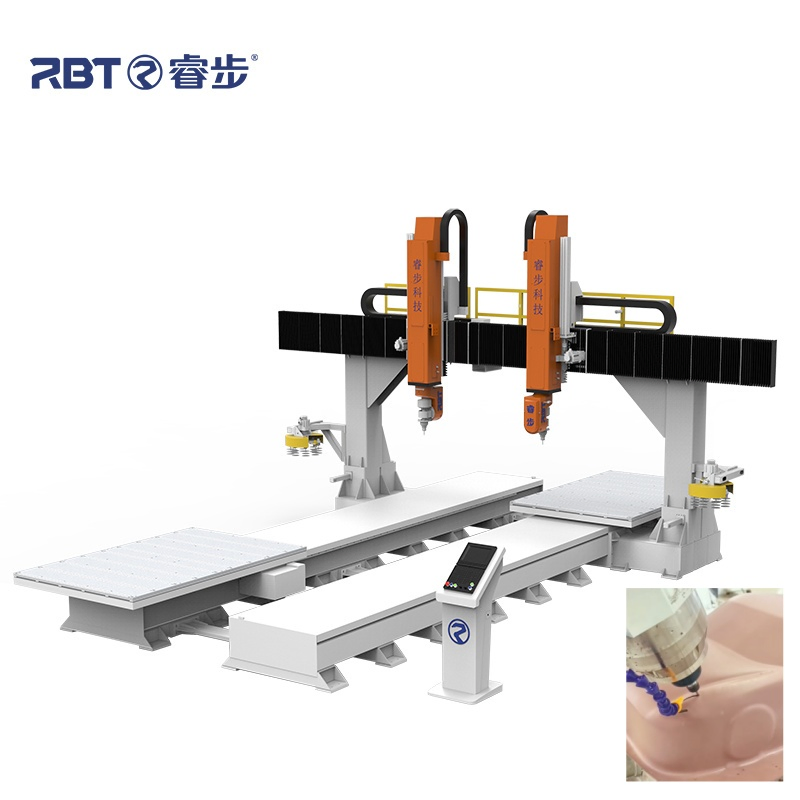

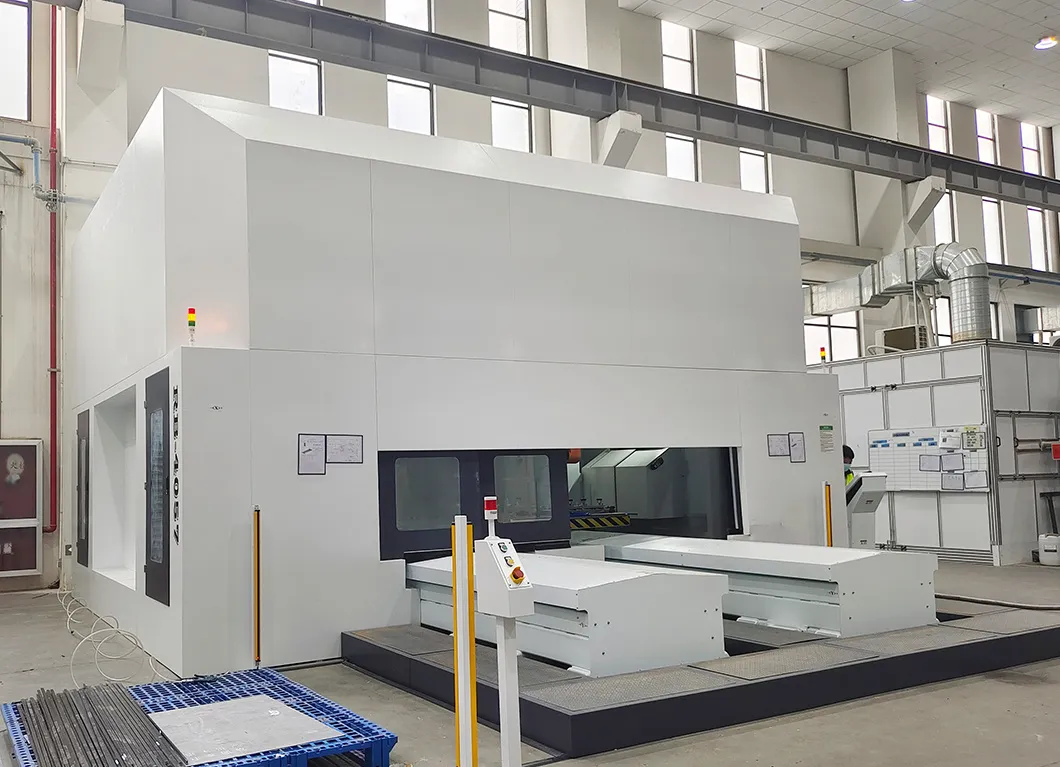

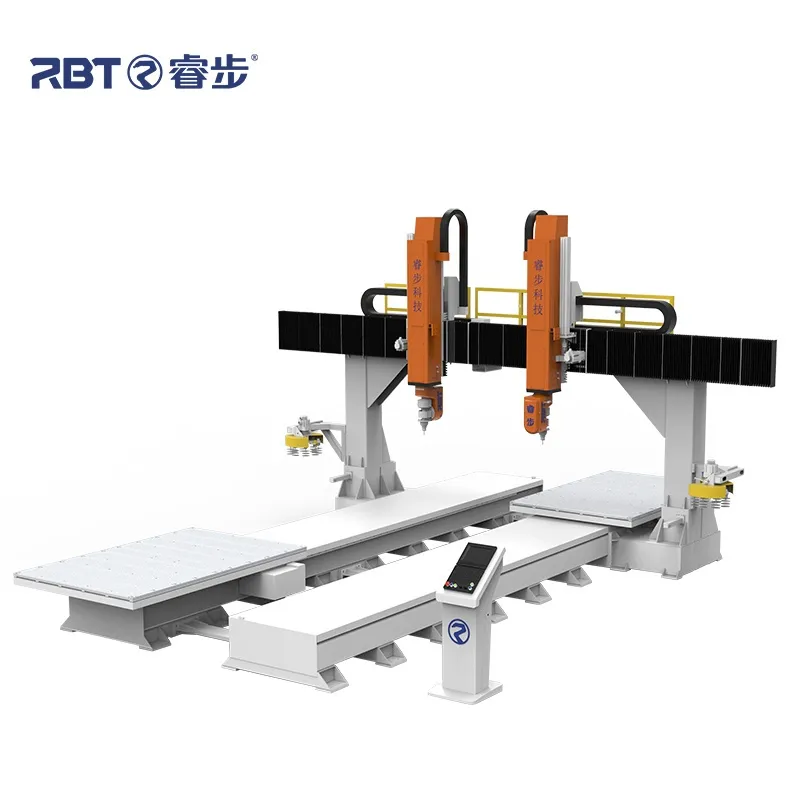

Product Name	Non-metal two head 5 axis machining center
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance
Electrical components	France Sch_neider

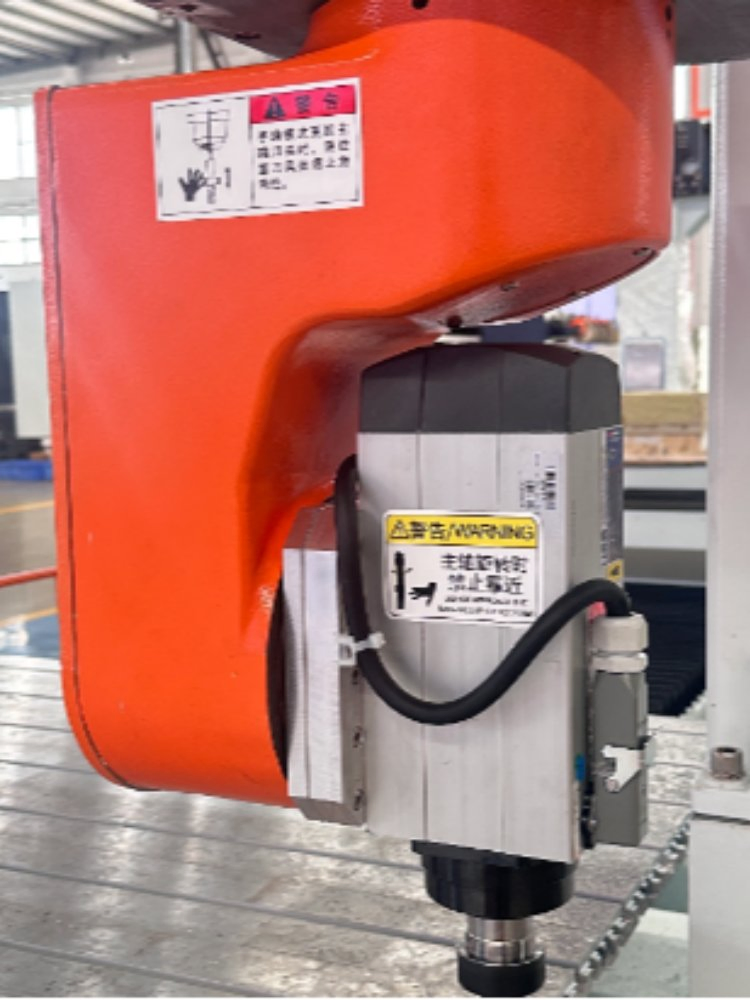

Spindle power	8.5KW/24000rpm/water cooling
B-axis rotation angle	±120°
C-axis rotation angle	±540°
Repeatability	±0.05mm
Total power	19.5-31KW
Weight	15000KG

✔

Certifications

⚒

Application Industries

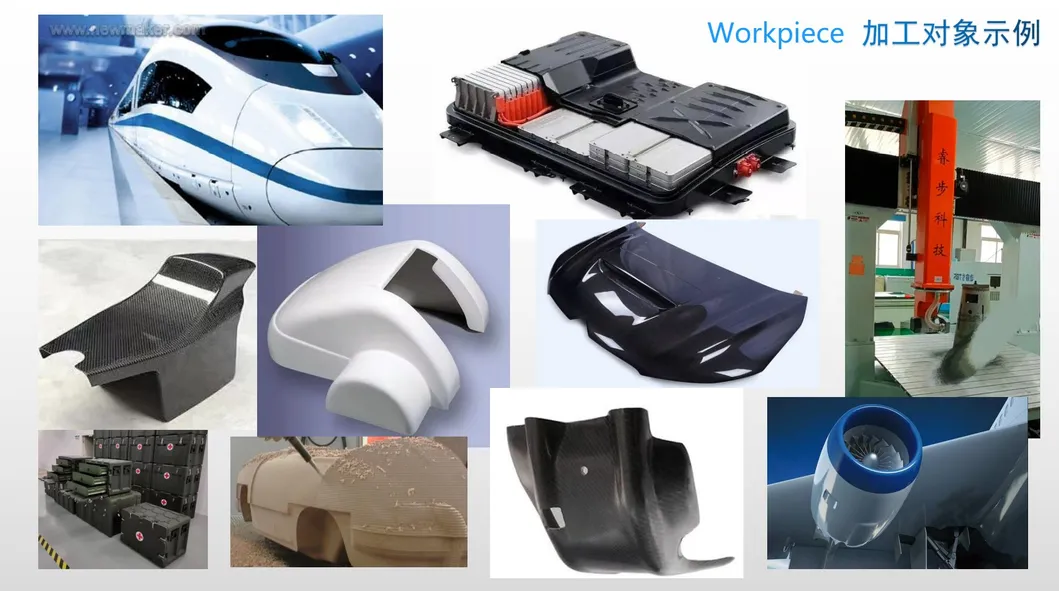

Widely used in mold manufacturing, composite material processing, and thick sheet thermoforming in industries such as aerospace, rail transit, automotive interior and exterior, sporting goods, medical beauty, and sanitary ware.

Frequently Asked Questions

When was your factory established?

We have specialized in R&D and manufacturing of CNC Machining solutions since 2000, focusing on plastic, composite parts, and soft metals.

What is the warranty policy for this machine?

The quality assurance period is 12 months from the arrival date. We provide accessories free of charge for non-man-made damage during this period.

How do you provide installation and training?

We provide training videos and English user manuals for installation, operation, and maintenance. Technical guidance is available via email and Messenger.

How is the after-sales service handled?

Our strong technical team communicates in English to solve problems efficiently. Engineers can be arranged for on-site support if necessary.

Do you offer wholesale pricing?

Yes, if you are a wholesaler, distributor, or agent, please contact us for specialized wholesale pricing.

What are the packaging and shipping options?

Machines are packed in plastic film and placed in plywood wooden cases. Shipping is typically handled via container transport.
