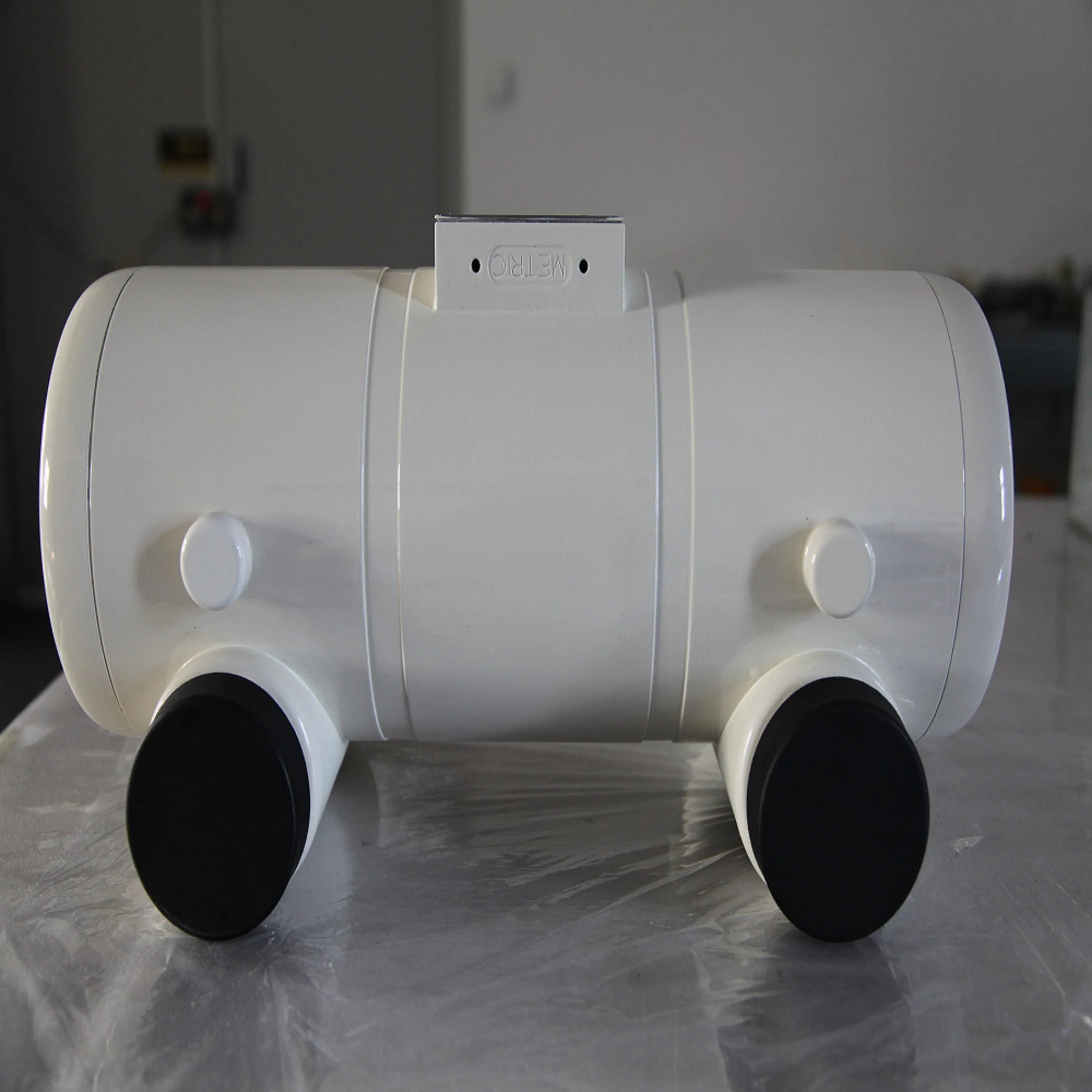

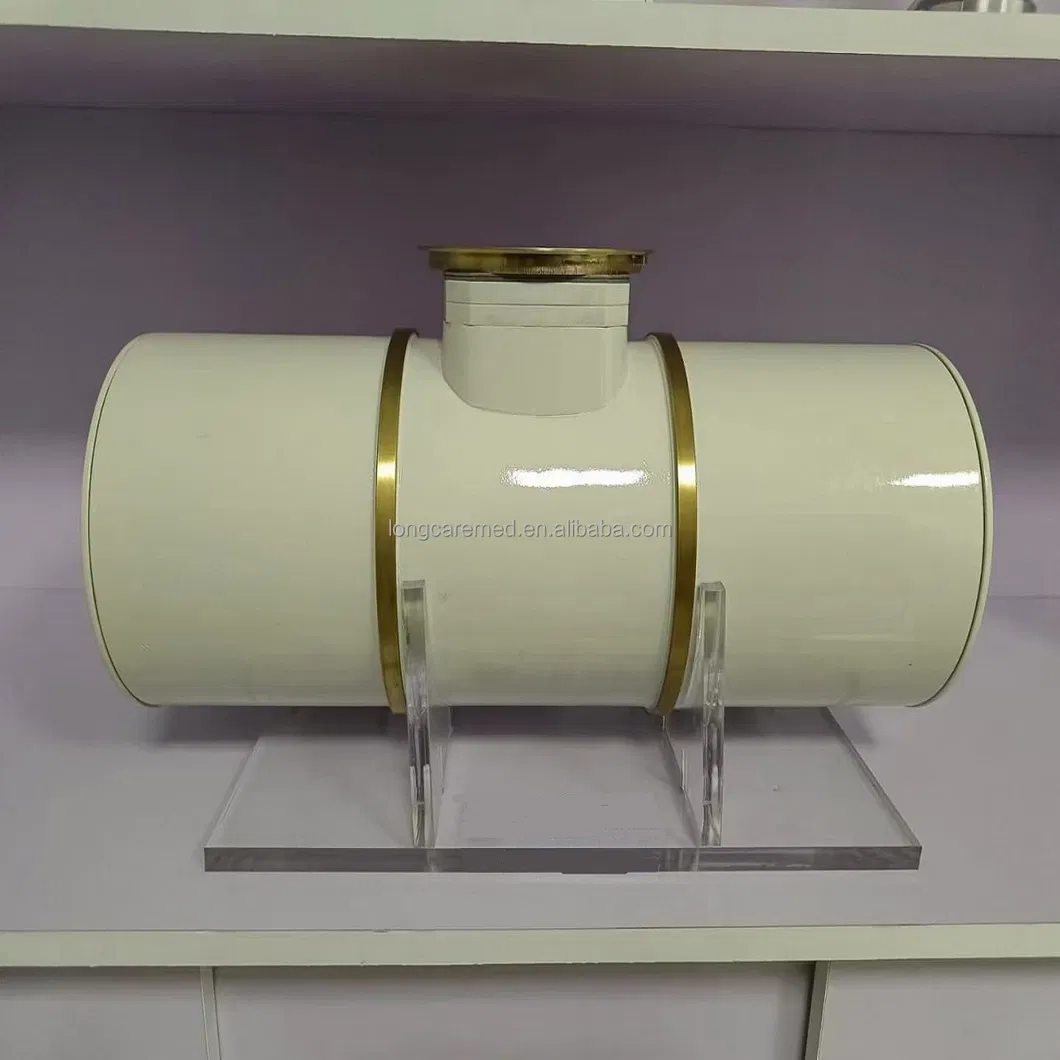

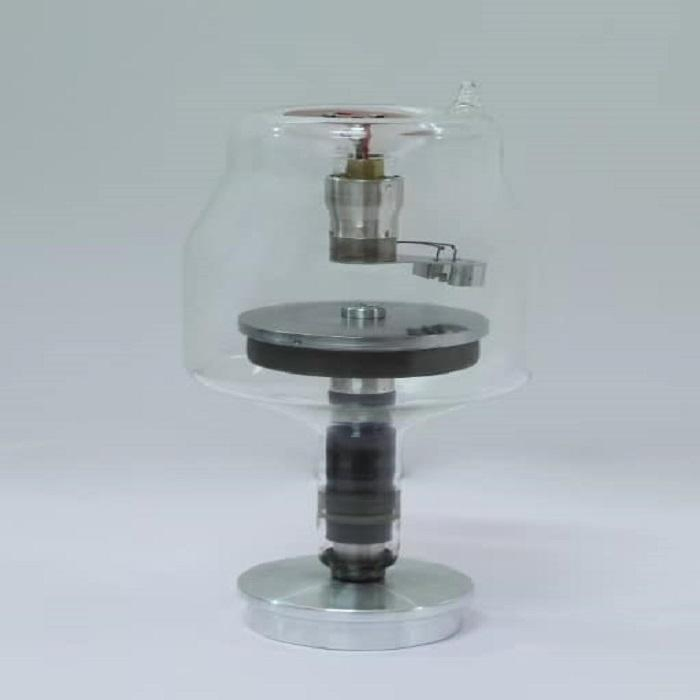

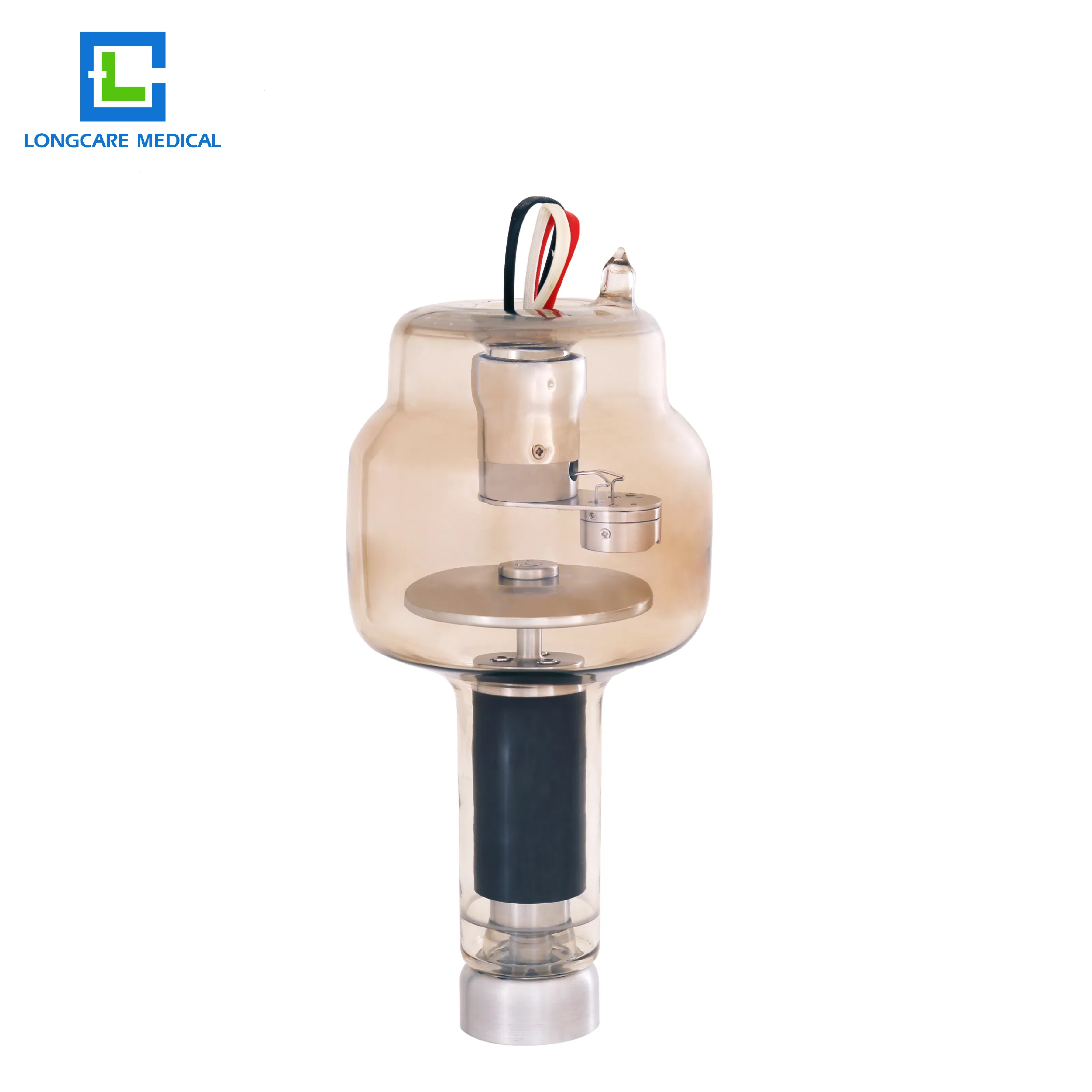

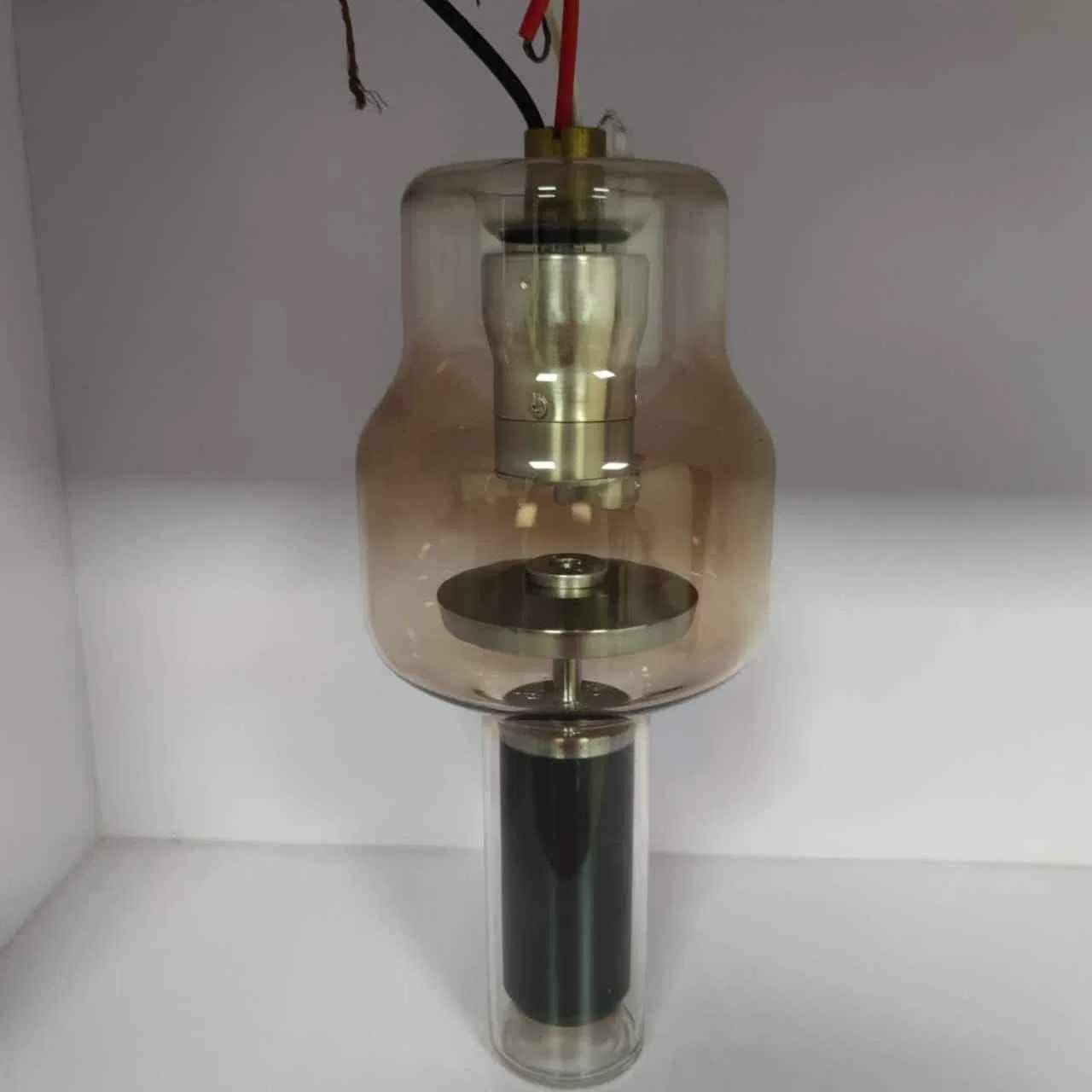

X Ray Tube Generator 160kv 200 Kv X Ray Scanner Spare Part

Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment
Certification:	CE

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

CP100/40/80

Group

Middle-aged and Old

Tube Voltage Kv

150

Matching Model

Sg-796b /Optitop150/40/80c

Usage

Warranty

1 Year

Filament Voltage V

10.6-13.2 18.3-22.4

Power Source

Machinery

Quality Certification

CCC

Material

Metal

Maximum Filament Current a

5.2/5.2

After-Sale Service

Online Technical Support

Instrument Classification

Class I

Target Disc Diameter mm

100

Nominal Value of Focus mm

0.6/1.0

Target Angle

Anode Heat Capacity Kj/Khu

445/600

Transport Package

Carton

Specification

Medium

Origin

China

Production Capacity

50 Piece/Pieces Per Month

🔍

Product Description

It is widely used in X-ray imaging equipment for fixed, mobile and portable image inspection and diagnosis.

📏

Specification

Power supply	AC110/220V 60/50HZ
Power input	650VA
Operating environment temperature	20ºC-30ºC
Operating environment humidity	30%-75%
Operating environment air velocity of flow	<0.3 m/s
Air temperature control range	25ºC -37ºC, 37.1ºC -38ºC
Temperature fluctuation	+/-0.5ºC
Uniformity of mattress temperature	≤0.8ºC
Warm-up time (from 25ºC)	≤30 min
Internal noise level	<50 dB(A)
Infant bed tilt angle	+/-10º
Mattress size	65*37cm
Trough Capacity	1200ml
Air filter	0.5μm

❓

Frequently Asked Questions

What equipment is this X-ray tube compatible with?

It is widely used in fixed, mobile, and portable X-ray imaging equipment for diagnostic inspection. Specific matching models include Sg-796b and Optitop150/40/80c.

What is the maximum tube voltage and anode heat capacity?

The maximum tube voltage is 150kV, and the anode heat capacity is rated at 445/600 Kj/Khu.

What type of warranty is provided for this product?

This product comes with a 1-year warranty along with online technical support for after-sale service.

Does the product meet quality standards?

Yes, the product holds CCC quality certification and is classified as a Class I instrument.

What are the environmental requirements for operation?

The optimal operating temperature is between 20ºC and 30ºC, with humidity levels between 30% and 75%.

What is the nominal focus value and target angle?

The nominal focus value is 0.6/1.0 mm, and the target angle is 12 degrees.
