Tension and torsion combined static bearing servo actuator is a high-precision device that outputs tensile force and torsional force in electro-hydraulic servo systems. As a key component of dynamic loading, it is widely utilized in the fields of dynamic, static, and fatigue testing. The system integrates a servo linear cylinder, servo swing cylinder, displacement sensor, and angle sensor to achieve sophisticated closed-loop control.
Max Static Tensile Force300kN
Max Dynamic Force240kN
Piston Rod DiameterΦ125mm
Effective Tension Stroke150mm
Max Torsional Static Force1000Nm
Effective Torsion Angle90°
Linear Working Frequency0.01Hz-100Hz
Compound Working Frequency0.01Hz-10Hz

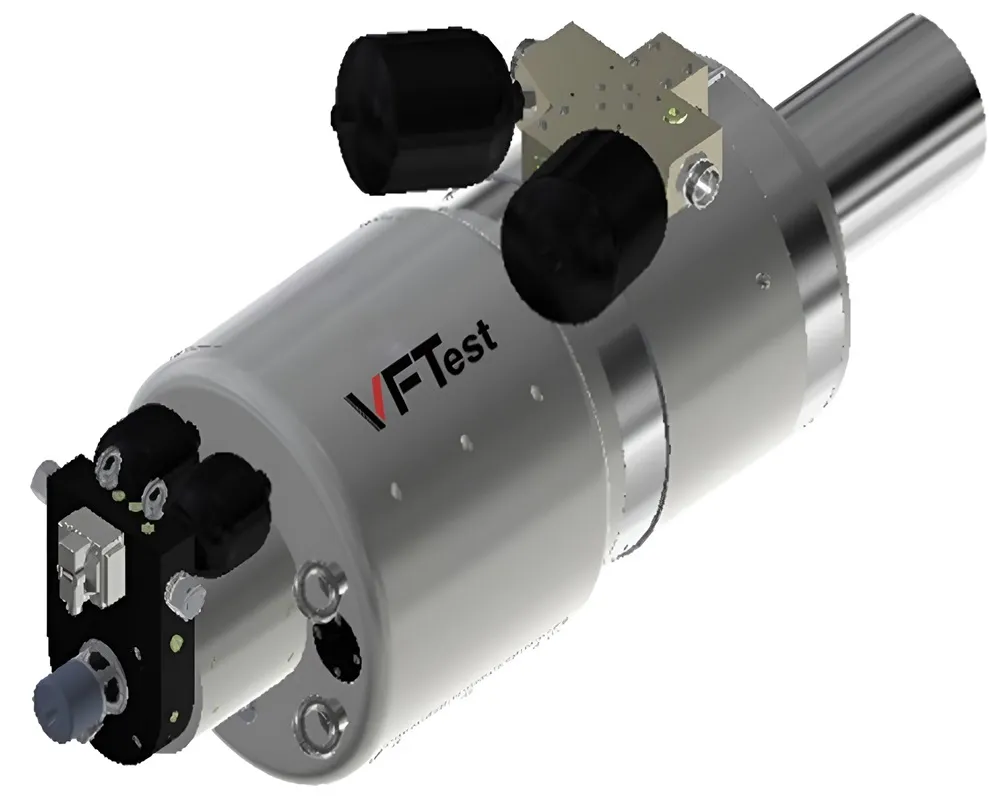

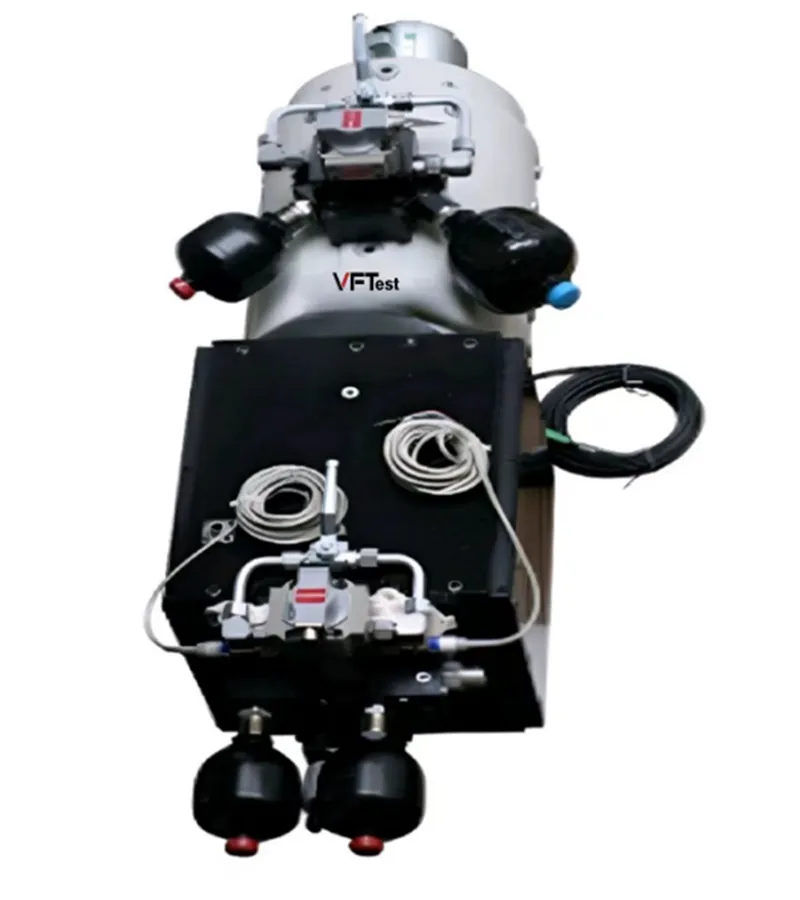

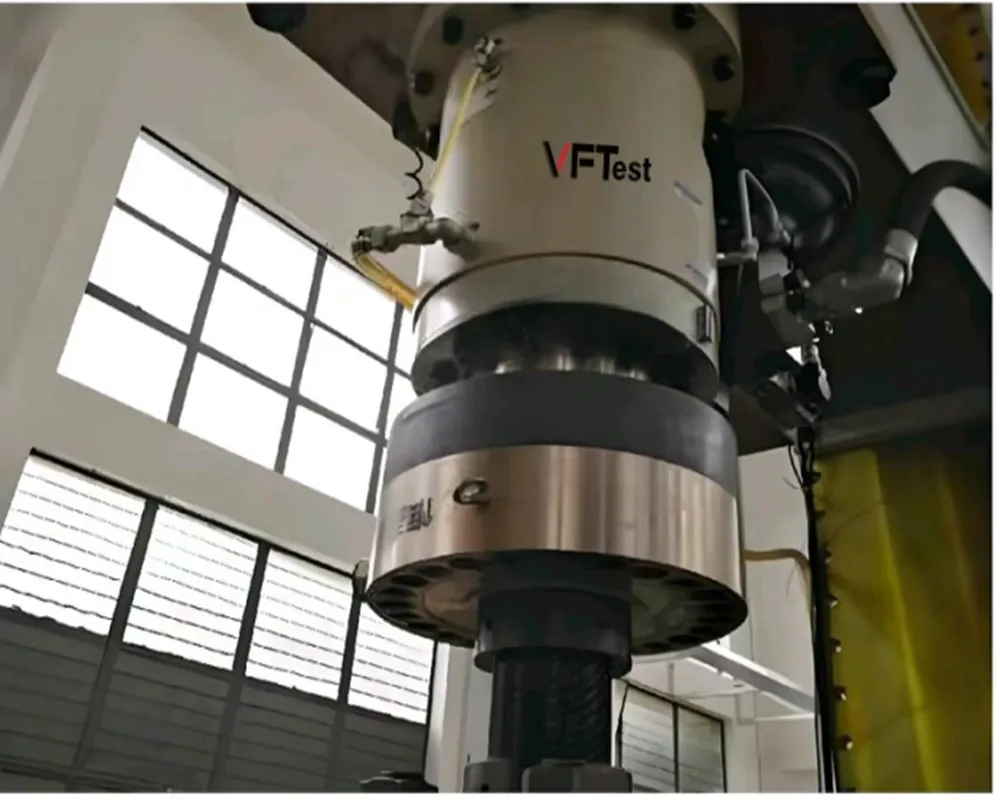

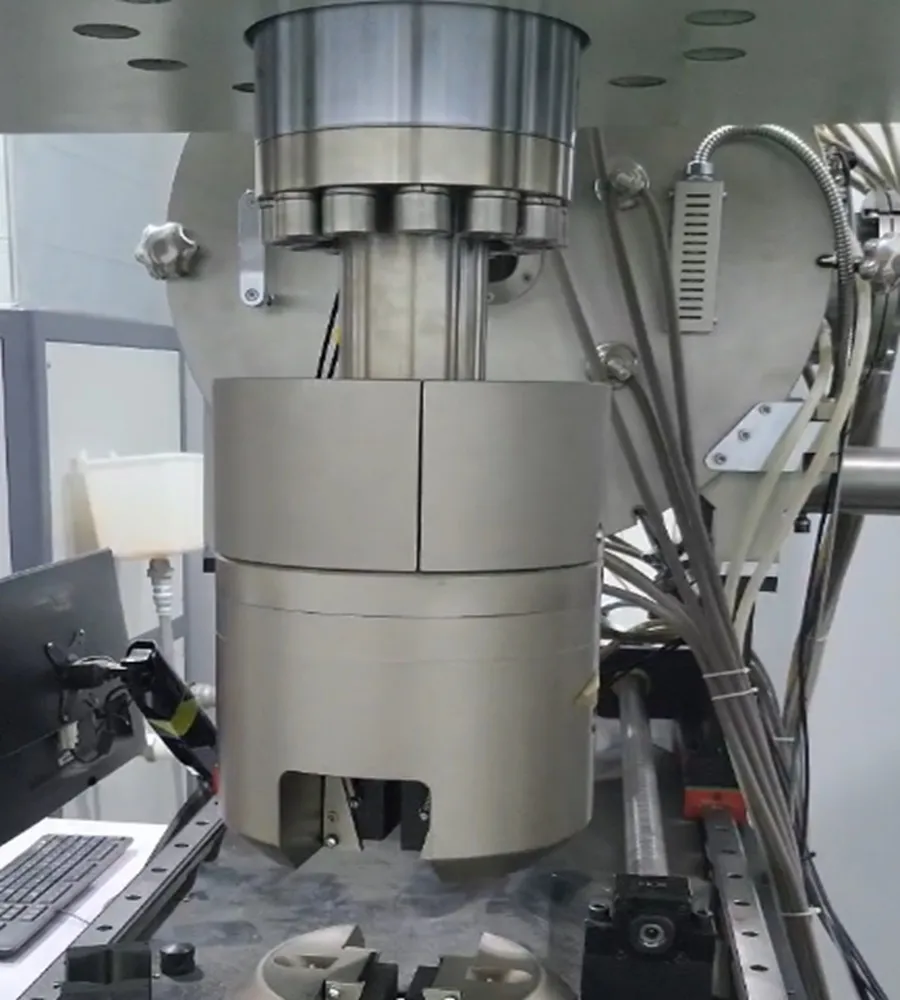

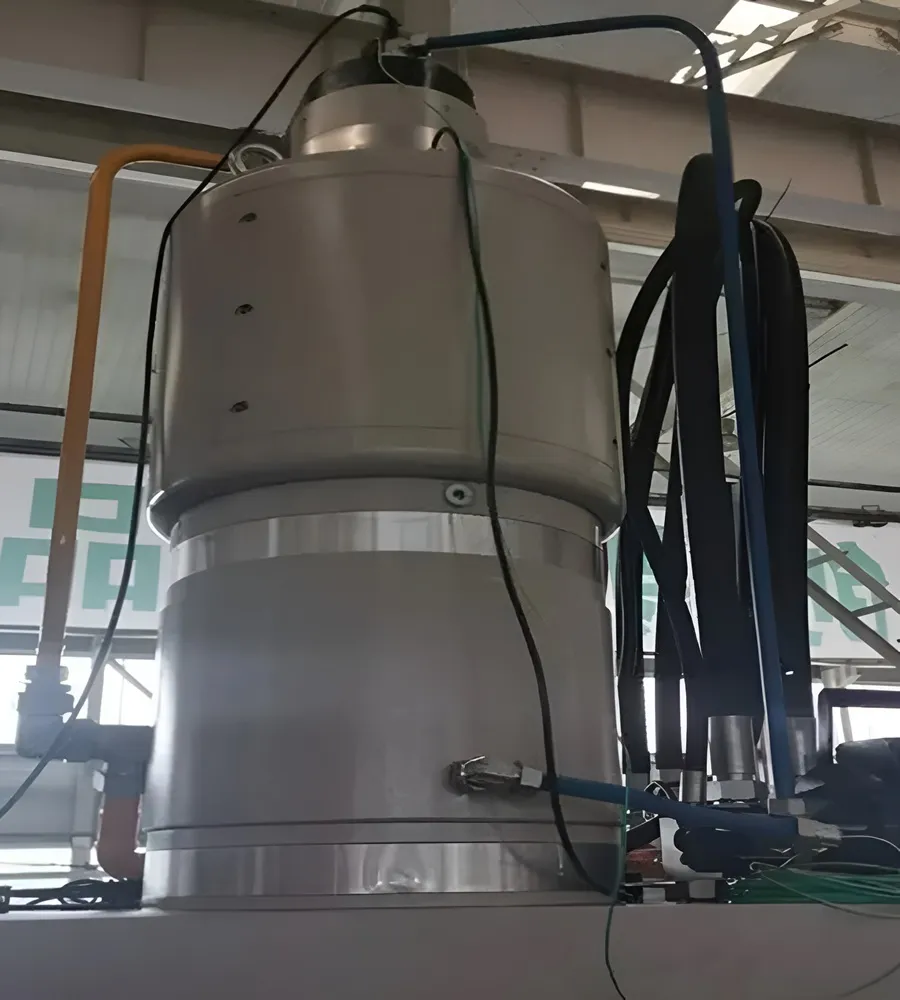

Product Visuals
Frequently Asked Questions
What are the primary applications for this servo actuator?
It is primarily used for dynamic, static, and fatigue testing where simultaneous tensile and torsional loading is required.
What is the maximum static tensile force capacity?
The unit supports a maximum static tensile force of up to 300kN.
Can the torsion angle be adjusted?
Yes, it features a total torsion angle of 100° with an effective working torsion angle of 90°.
What control system does the equipment use?
The system utilizes advanced computer control for high-precision closed-loop performance.
What is the working frequency range for linear operations?
The linear servo actuator can operate independently at frequencies ranging from 0.01Hz up to 100Hz.
What power source is required for operation?
The equipment requires a standard AC380V power supply and operates at a working pressure of 21MPa.
