Basic Information
Product Description
Machine Usage & Working Conditions:

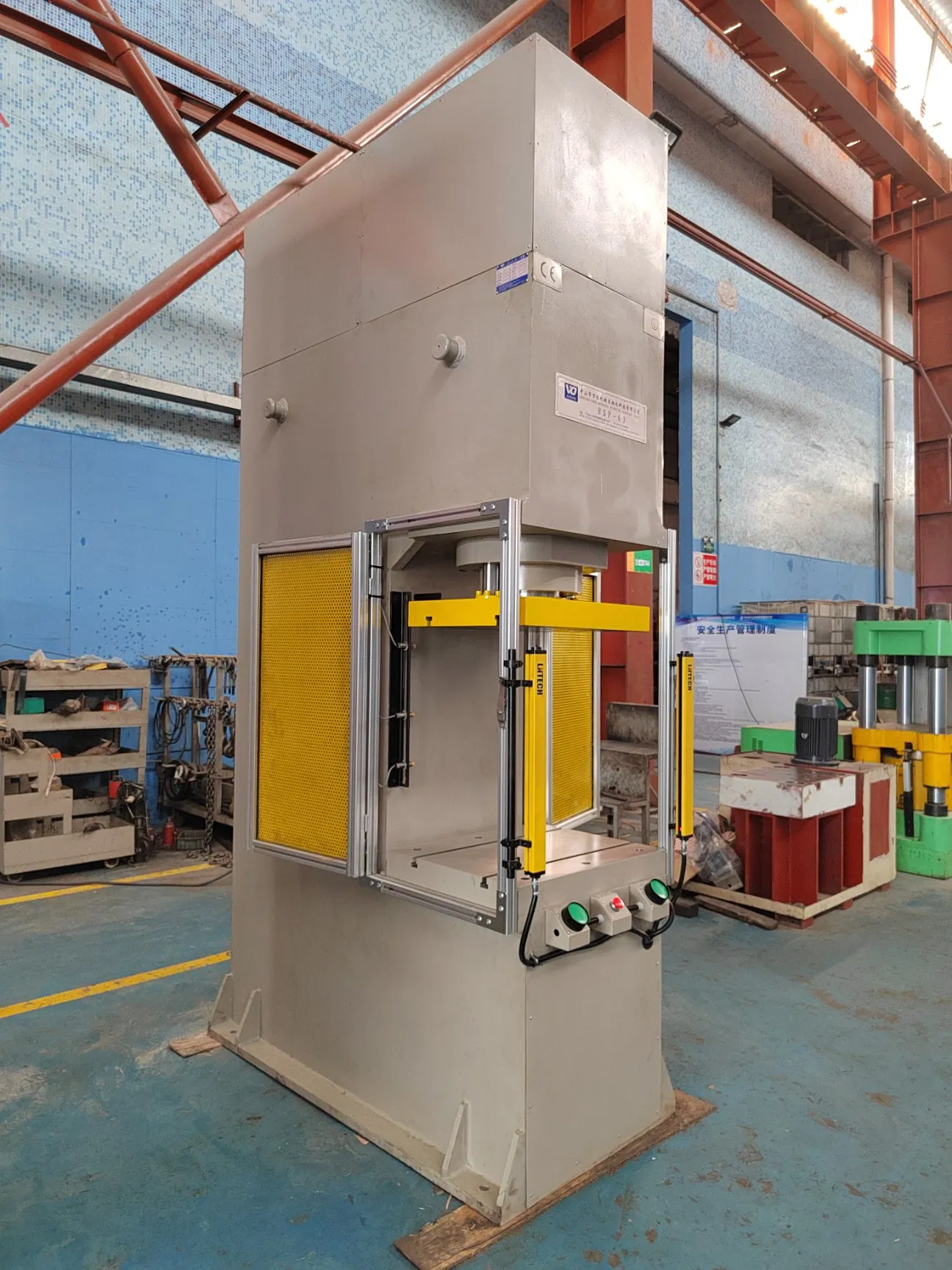

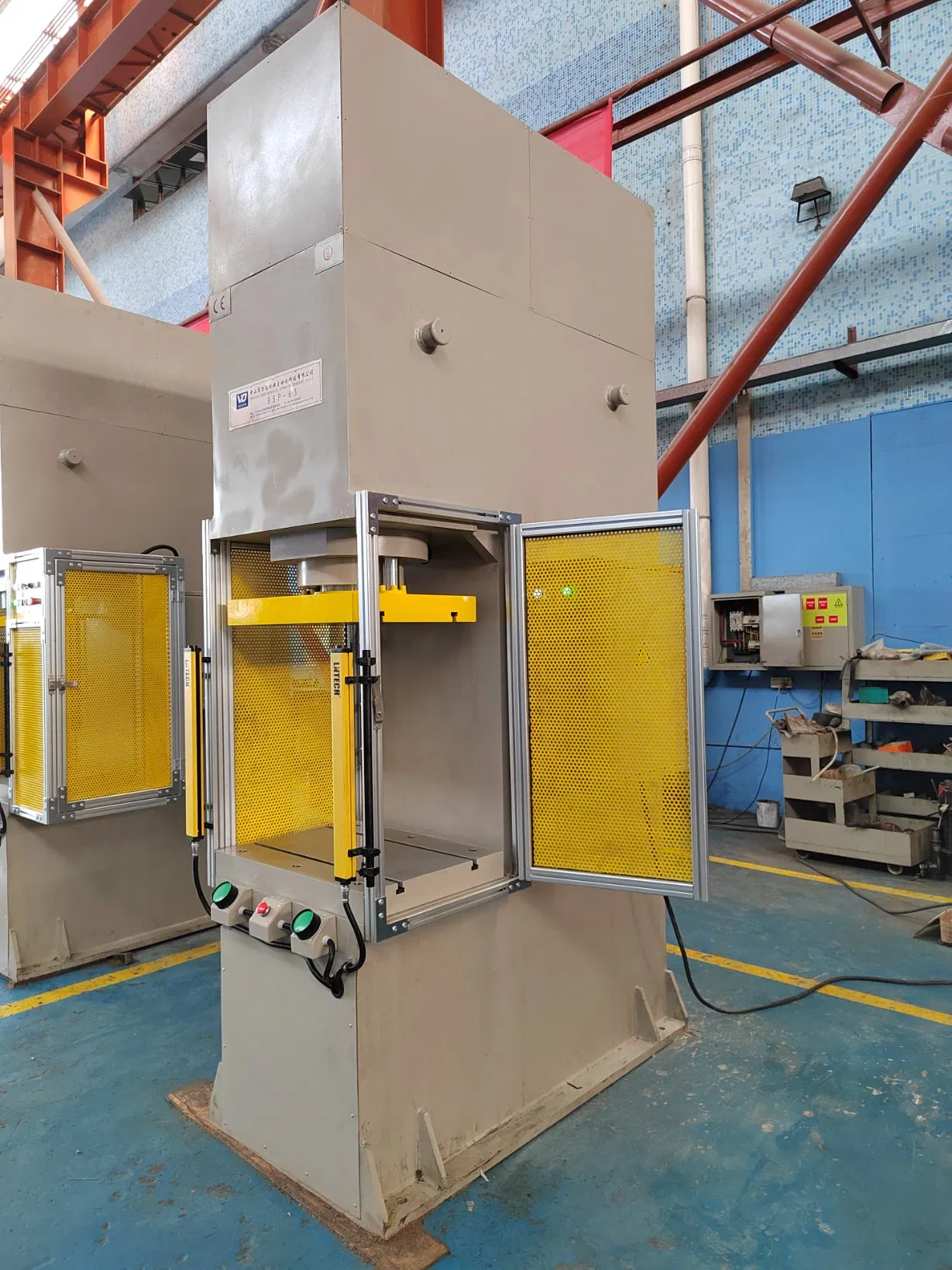

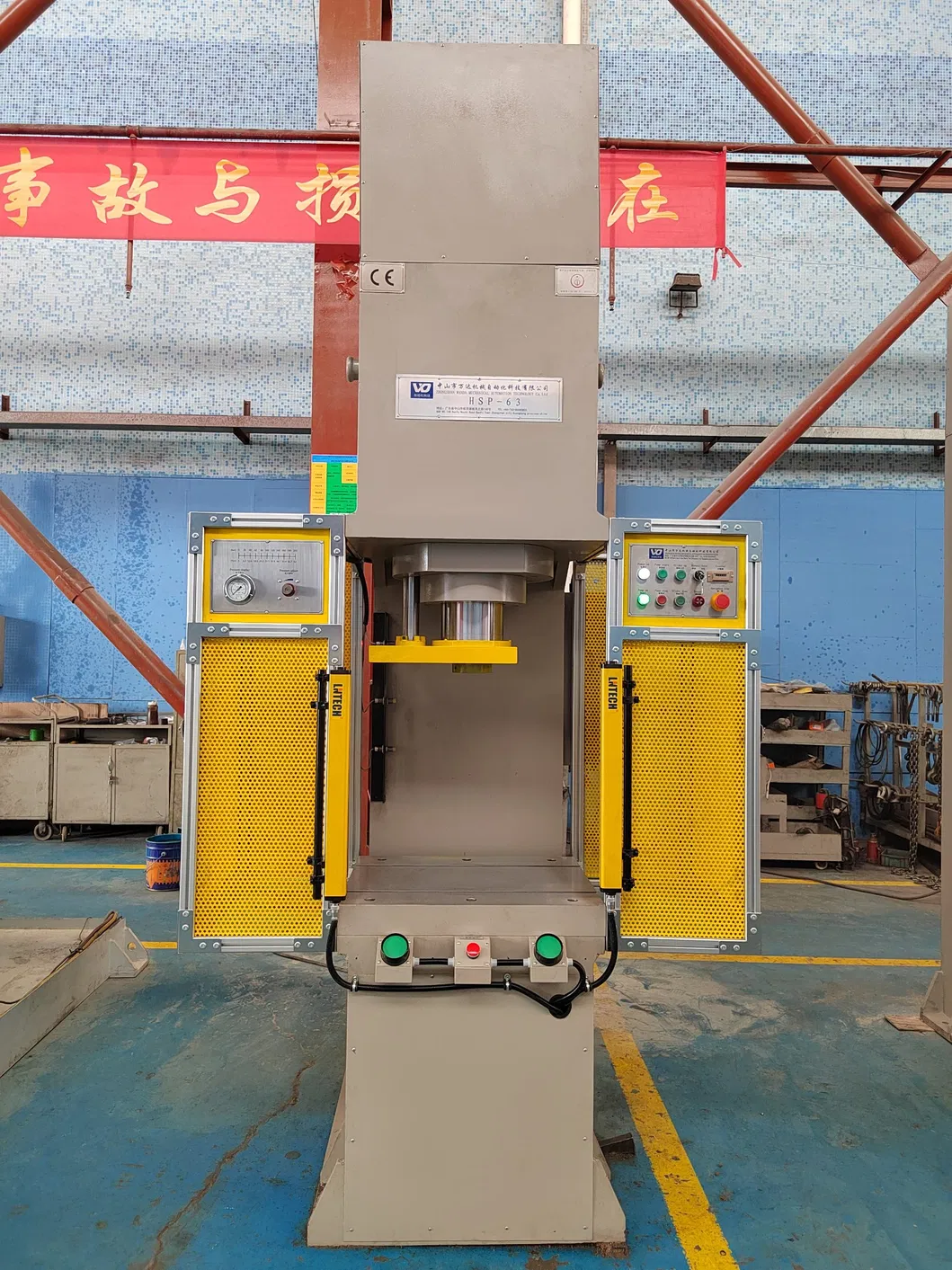

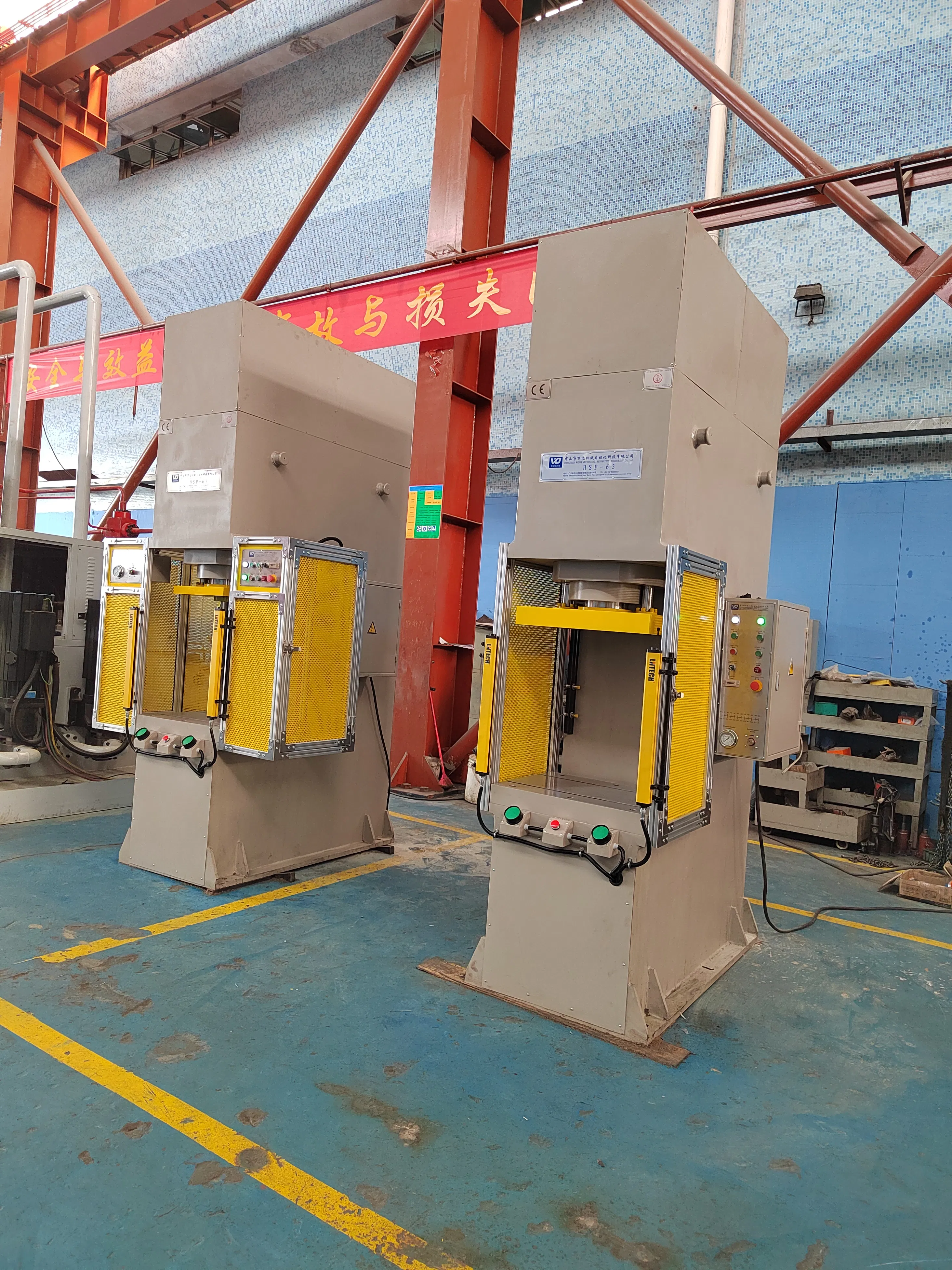

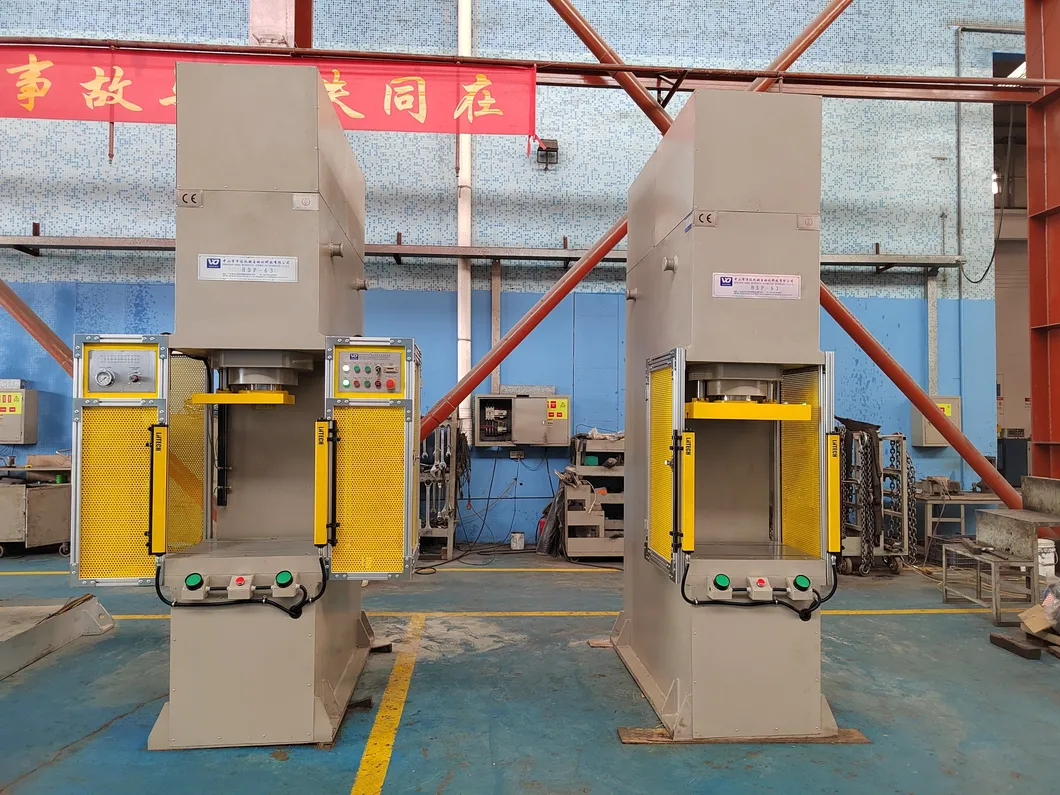

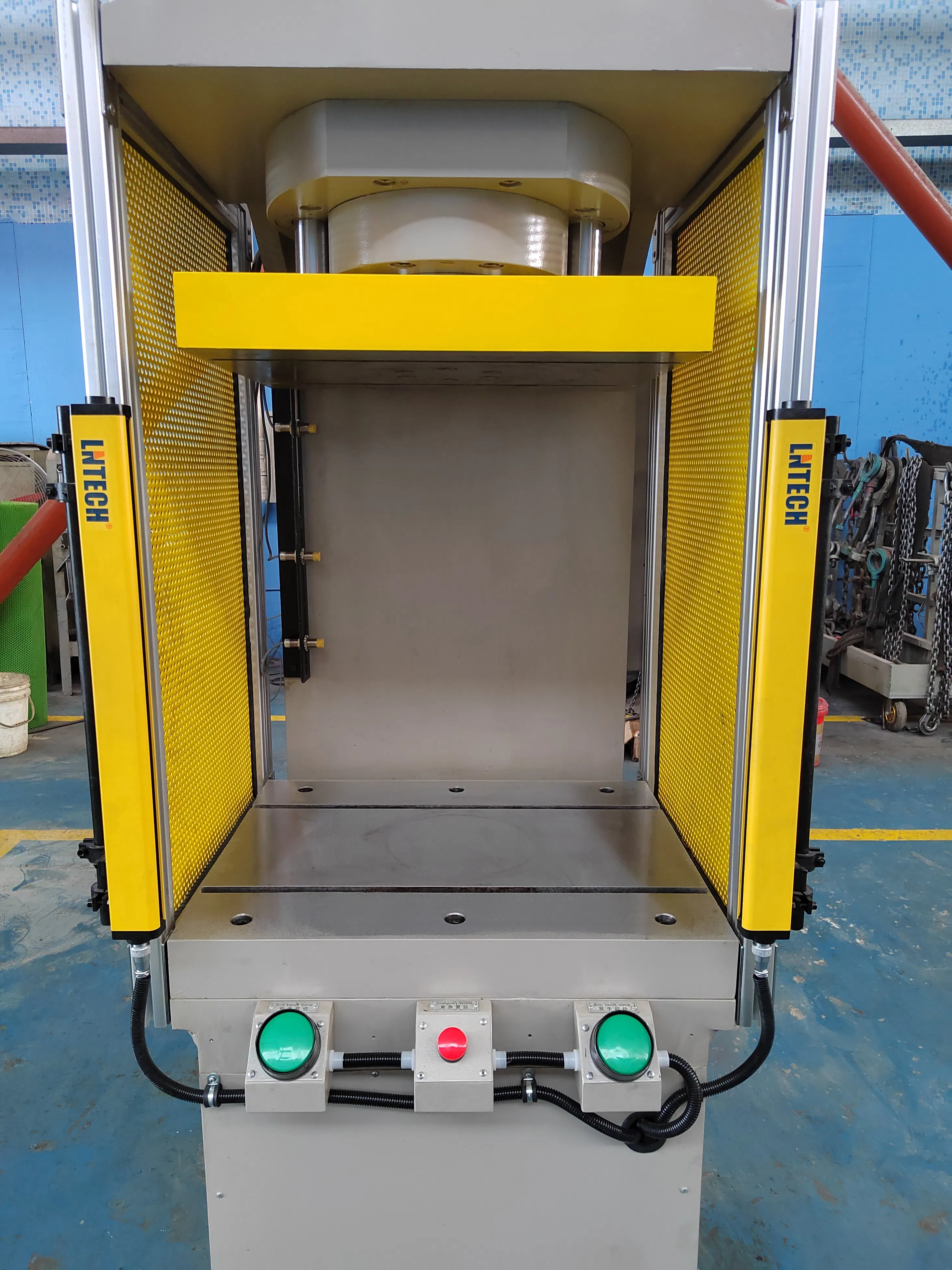

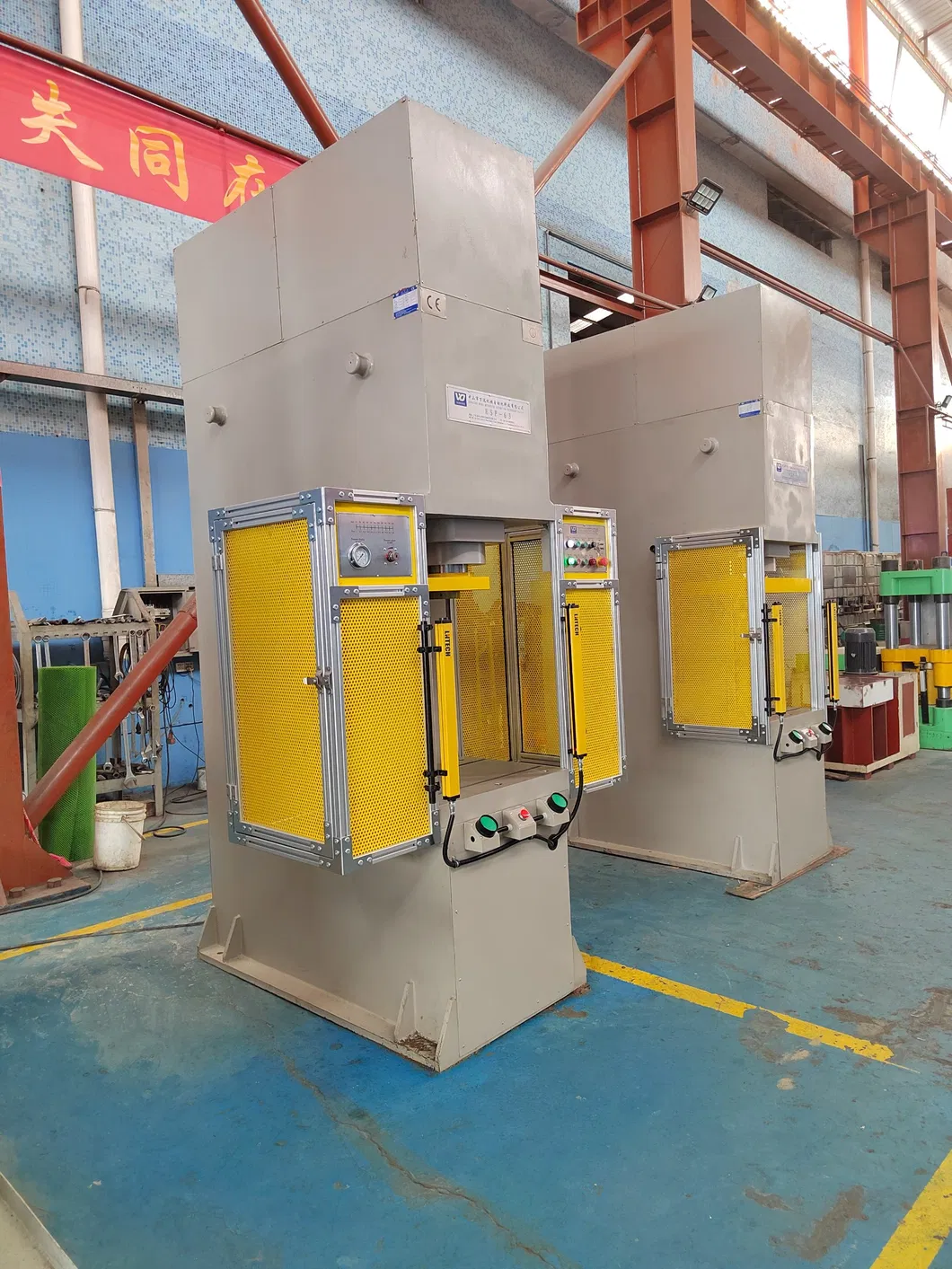

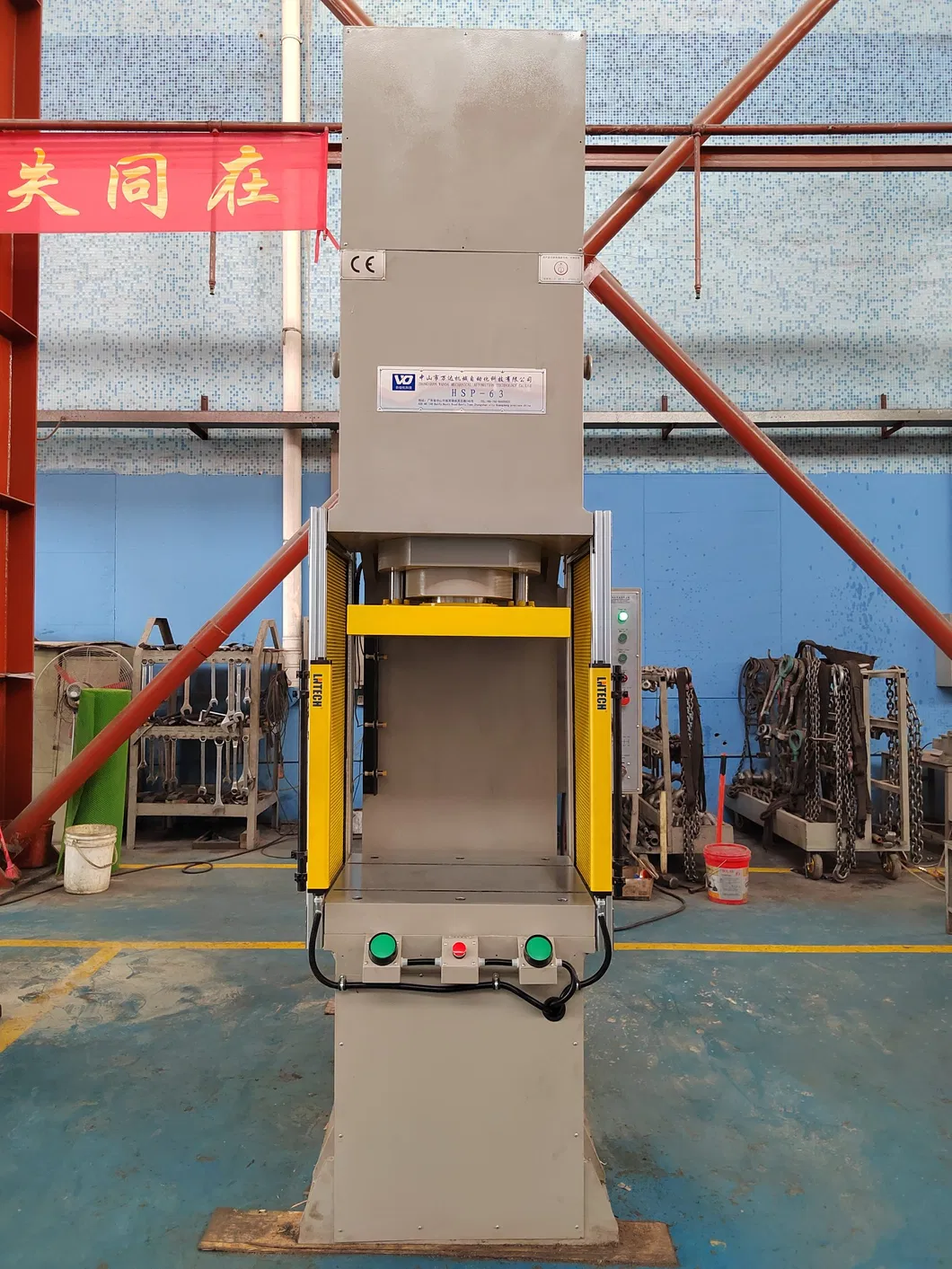

The HSP series hydraulic punching machine is a versatile marvel, perfectly suited for processes such as rolling, stamping, forming, bearing pressing, and shallow stretching of metal sheets. Equipped with independent hydraulic and electrical systems, it features advanced PLC centralized control.| Item | Unit | HSP-63 Specification |
|---|---|---|
| Nominal force of master cylinder | KN | 630 |
| Maximum working pressure of liquid | Mpa | 20.3 |
| Maximum stroke of the slider | mm | 500 |
| Height of workbench from floor | mm | About 920 |
| Opening height | mm | 710 |
| Throat depth | mm | 320 |
| Quick down speed | mm/s | 260 |
| Work progress speed | mm/s | 25 |
| Returning speed | mm/s | 260 |
| Fixed table size (L.R x F.B) | mm | 710 x 560 |
| Movable table size (L.R x F.B) | mm | 600 x 500 |
| Motor power | KW | 15 |
| Weight | ton | About 6 tons |
Operating ambient temperature: 10-40ºC | Relative humidity: no more than 85%
About Us

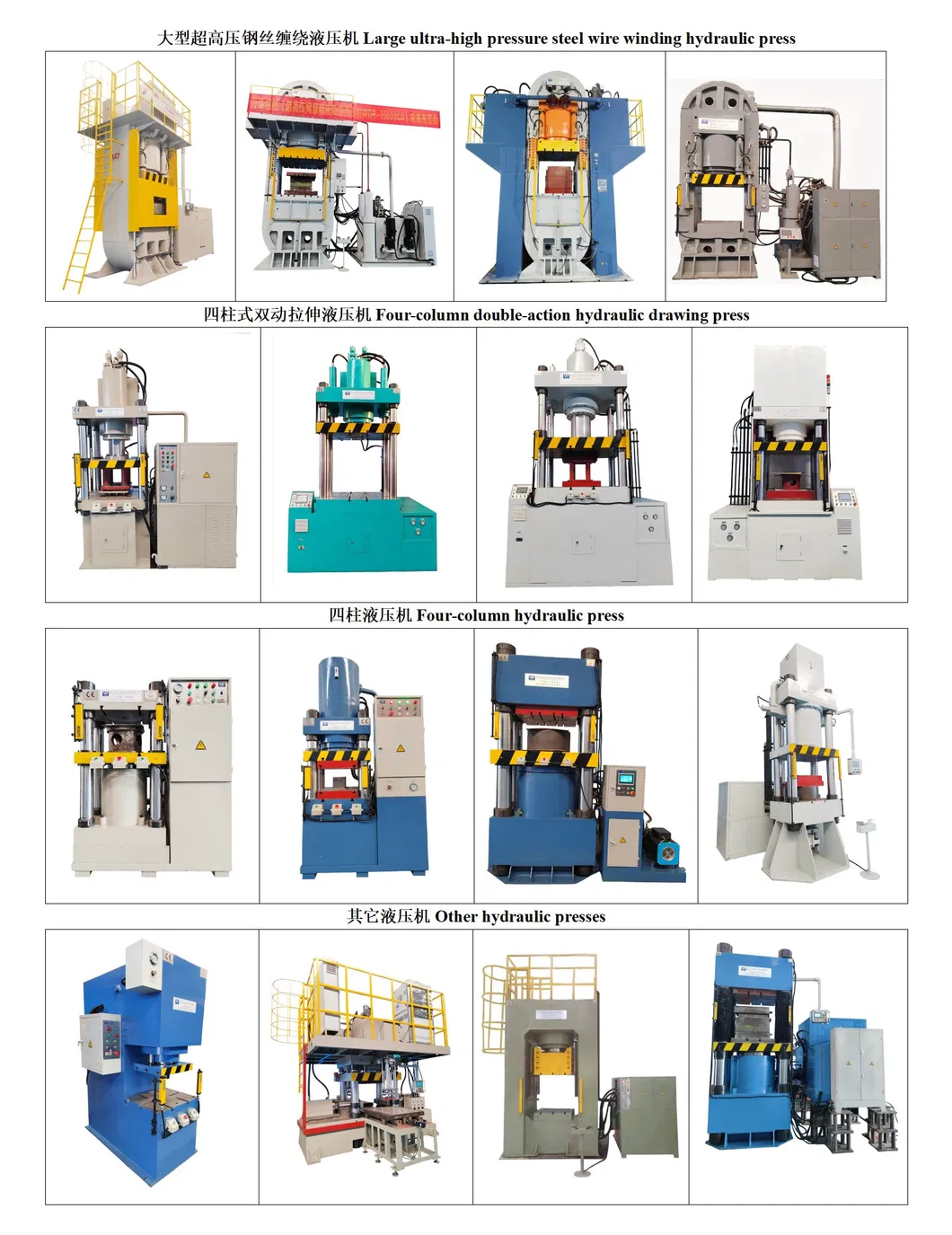

Our company specializes in the production of various high-end hydraulic presses. With extensive experience in the production, design, and R&D of high-end, multifunctional hydraulic presses, we boast a design and production capacity of 50,000 tons. Our product range includes ultra-high-pressure wire winding hydraulic presses, four-column hydraulic presses, frame-type hydraulic presses, double-action tensile presses, fine-blanking presses, and fully automatic powder forming hydraulic presses.
Package and Shipping

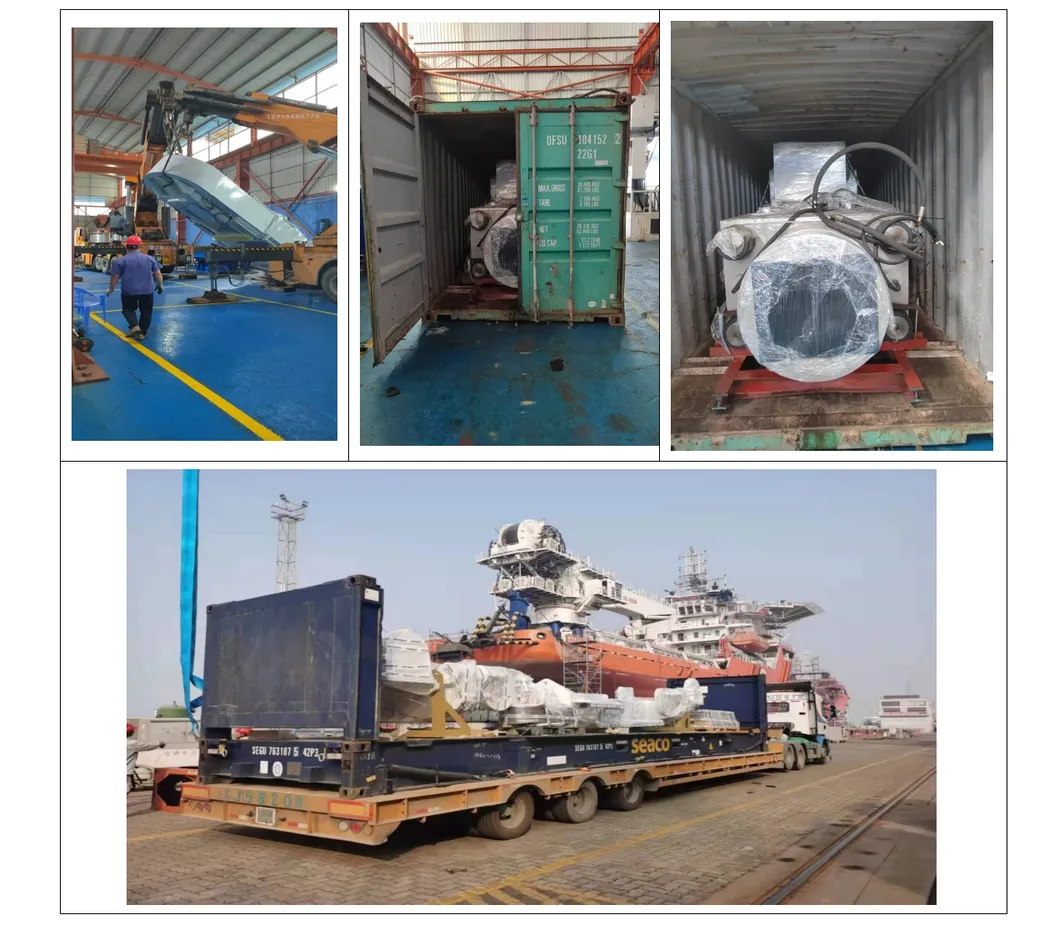

Standard Protection: Packed with iron trays, sealed with plastic film, and treated with anti-corrosion and anti-rust treatment to ensure safe global transit.
