Customization: Available
After-sales Service: Yes
Warranty: 1
Send Inquiry

Product Description

Basic Specifications
Model NO.
VLN
Max Diameter
<500mm
Mass Scope
<900kg
Max Capacity
>1000KN
Accuracy Grade
0.5
Load Way
Mechanical Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
500-1000Kg
Power Source
AC380V
Working Pressure
21MPa
Effective Torsion
90°
Origin
China
HS Code
8412210090
Production Capacity
20 pieces/Year
Product Description

The tension and torsion combined static bearing servo actuator is a precision device designed to output tensile force and torsional force within electro-hydraulic servo systems. As a key component of dynamic loading, it is primarily utilized in dynamic, static, and fatigue testing applications. The system integrates a servo linear cylinder, servo swing cylinder, displacement sensors, and angle sensors to achieve sophisticated closed-loop control.

Technical Specifications
✓ Working pressure: 21Mpa
✓ Maximum static tensile force: 300kN / Dynamic force: 240kN
✓ Piston rod diameter: Φ125mm
✓ Total tension stroke: 160mm (Effective: 150mm)
✓ Maximum torsional static force: 1000Nm / Dynamic force: 800Nm
✓ Total torsion Angle: 100° (Effective: 90°)
✓ Linear working frequency: 0.01Hz-100Hz
✓ Oscillating working frequency: 0.01Hz-50Hz
✓ Compound working frequency: 0.01Hz-10Hz
Product Visuals

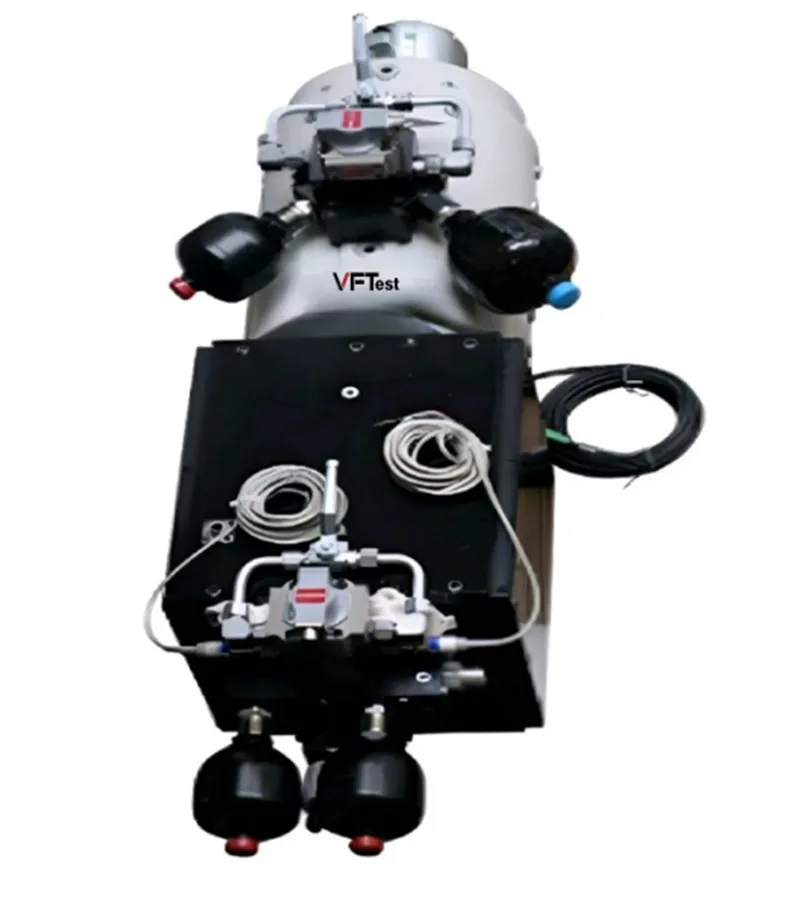

Servo Actuator Test Parts 1

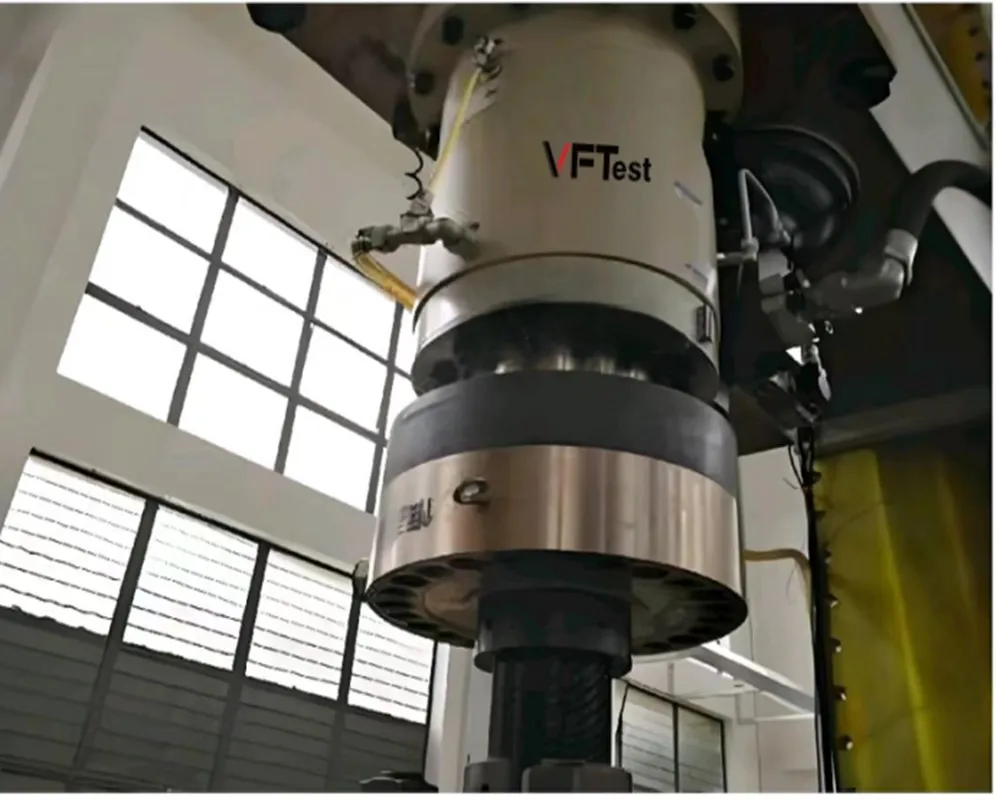

Servo Actuator Test Parts 2

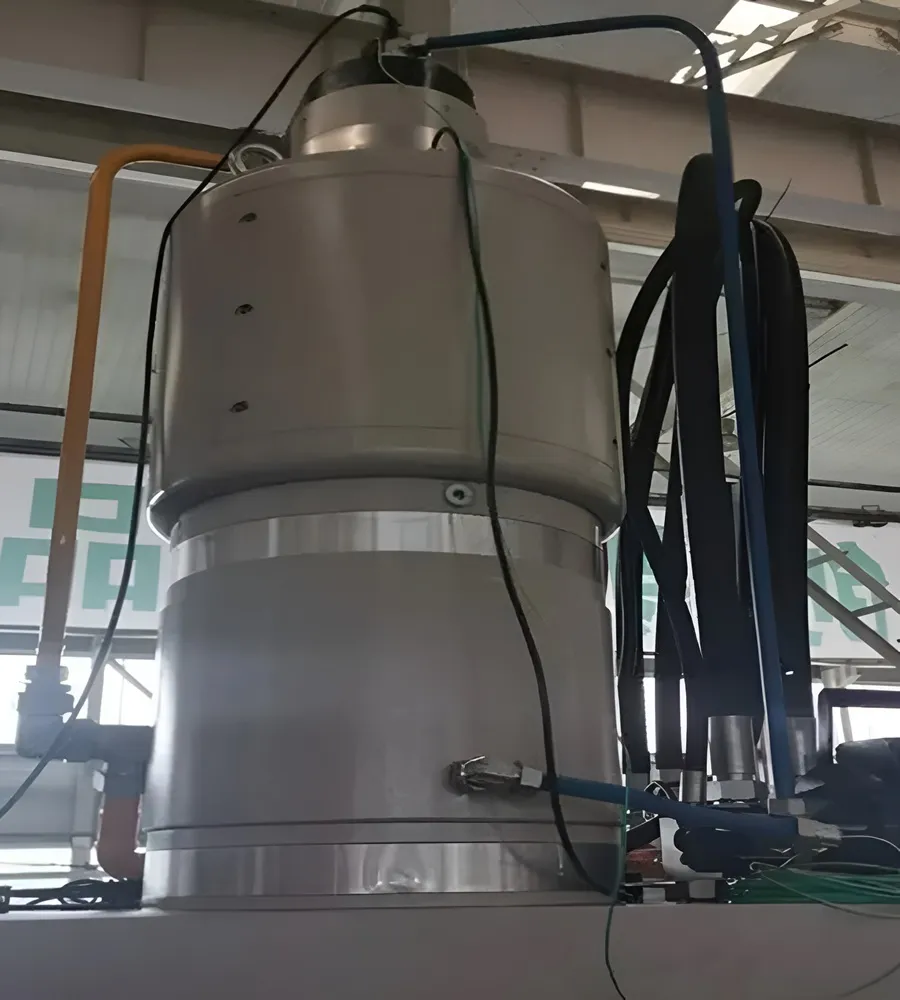

Servo Actuator Test Parts 3
Servo Actuator Test Parts 4
Servo Actuator Test Parts 5
Frequently Asked Questions
What is the main application of this combined servo actuator?
It is primarily used for dynamic, static, and fatigue testing in electro-hydraulic servo systems where both tensile and torsional forces are required.
What is the maximum frequency for linear and oscillating operations?
The linear servo actuator operates between 0.01Hz and 100Hz, while the oscillating servo actuator handles 0.01Hz to 50Hz.
Can the specifications be customized for specific requirements?
Yes, factors such as dimensions and oil cylinder positions can be customized based on specific user needs.
What are the load capacities for this equipment?
The equipment supports a maximum static tensile force of 300kN and a maximum torsional static force of 1000Nm.
What control system does this equipment use?
The system utilizes advanced computer control for digital display and closed-loop management of displacement and angles.
What type of packaging is used for transport?
The product is securely packed in a wooden box to ensure safety during international shipping.
