| Model NO. | M7N |
| Speed | Ultra-High-Speed Mechanical Seal |
| Temperature | High Temperature Mechanical Seal |
| Standard | Standard / En12756 |
| Balance | Balanced |
| Spring Type | Super-Sinus-Spring |
| Rotation | Any Direction |

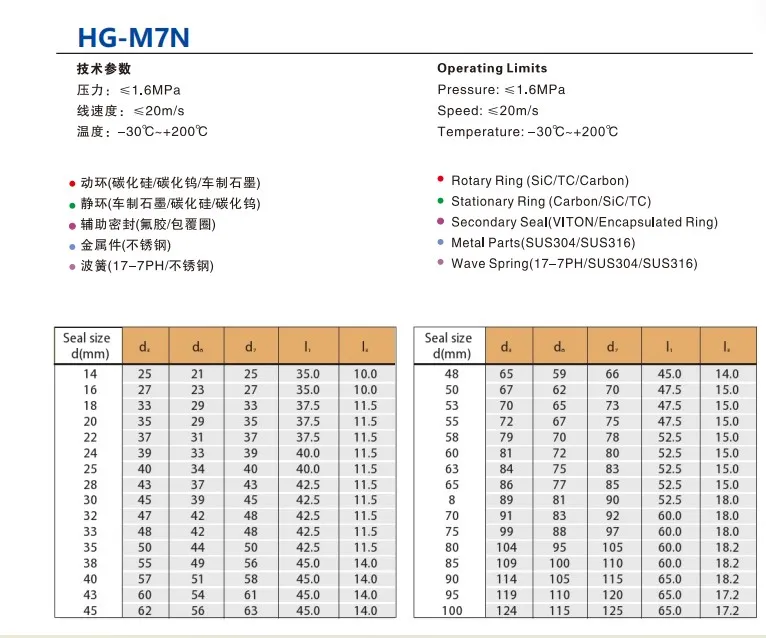

| Shaft Diameter | 14 mm ~ 200 mm |
| Cavity Pressure | ≤ 1.6 MPa ~ ≤ 3.0 MPa |
| Medium Temp | -50℃ ~ +220℃ |
| Linear Velocity | ≤ 20 M/S |
| Applicable Media | Clean Water, Sewage, Oils etc. |
| Origin | China |
| Package Size | 10.00cm * 20.00cm * 15.00cm |
| Gross Weight | 1.000kg |

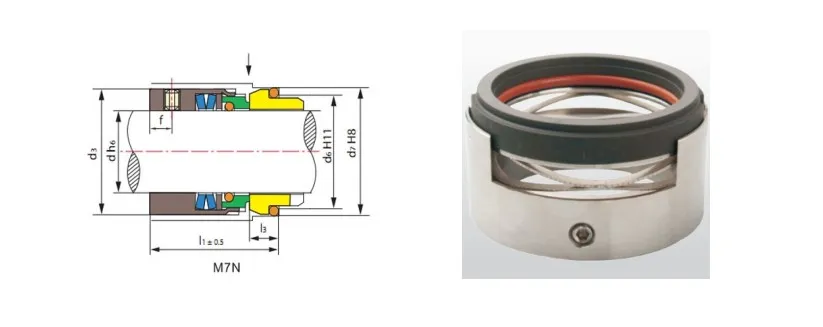

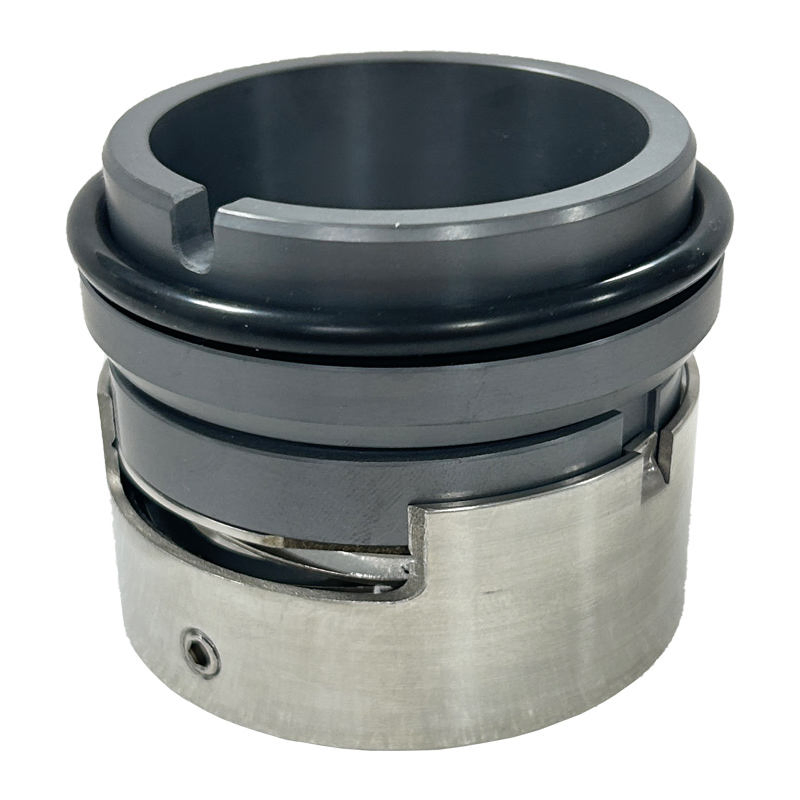

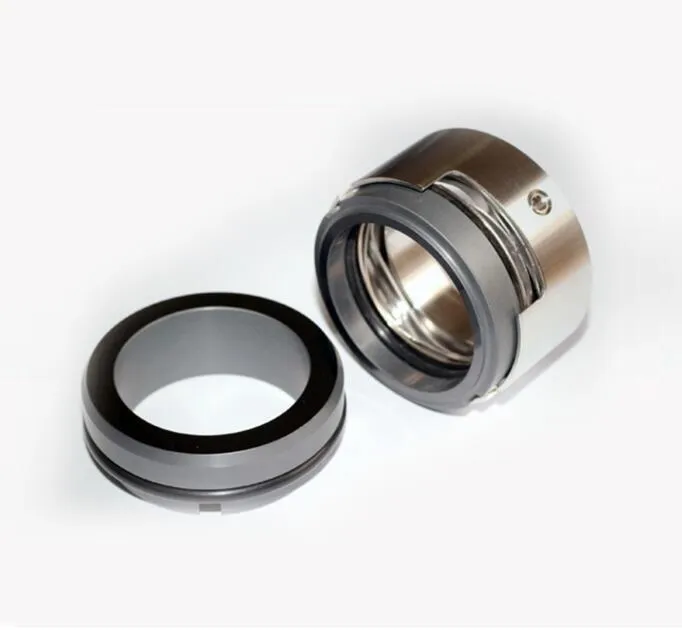

The core design of the M7N adheres to German DIN24960 and international EN12756 standards, giving it excellent versatility and interchangeability. It is a single-end, unbalanced, wave-spring-loaded mechanical seal capable of arbitrary rotation. It is well-designed to adapt to a variety of common operating conditions, and installation is very convenient as it does not require differentiation of the pump's rotation direction.
| Product Name | Factory Custom Industrial Pump Mechanical Seals M7N Silicon Carbide Mechanical Seals |
| Materials | Alloy, silicon carbide, graphite, FKM (Customizable) |
| Scope | Chemical plants, pumping plants, sewage plants |
To adapt to different media, the materials of the M7N seal can be flexibly combined:
Anti-detachment design: The push ring features a transmission catch that effectively prevents the spring from falling off.
Wear limiting protection: The stationary ring restricts the spring's travel, preventing excessive wear on the sealing face.
Floating stationary ring: Better compensates for radial runout and vibration of the pump shaft.
Pump types: Centrifugal pumps, chemical pumps, pipeline pumps, sewage pumps, pulp pumps, circulating pumps, and slurry pumps.
Industries: Water treatment, petrochemicals, papermaking, fertilizers, pharmaceuticals, and food industries.
