Customization:	Available
Structure:	Single End
Pressure:	Medium Pressure Mechanical Seals

Send Inquiry

Product Description

Basic Specifications

Model NO.

SSM37

Speed

High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Temperature

Standard

Standard, Nonstandard, OEM

Type

HBM1

Balance

Unbalanced

Package

Wooden Box or Carton Box

Specification

CE; RoHS

Production Capacity

50,000 sets/Year

Product Description

Structure Description

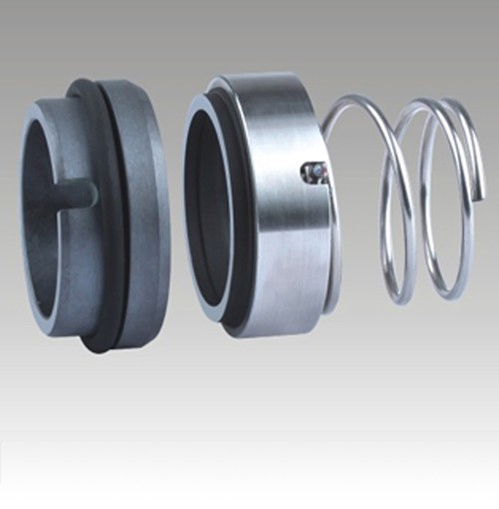

• Equivalent to M37 & M37G seal
• Conical spring design

Operating Limits

• Temperature: -20 to 180ºC
• Speed: 15m/s
• Pressure: 10bar
• Standard Size: 10-80mm

Material Construction

• Seal ring: Car, Sic, Ssic, TC
• Secondary seal: NBR, FKM, EPDM etc.
• Spring & metal parts: 304, 316, HAST.C

Product Model Description	Size (mm)
M32N24/55 spring right-G6	55
M32N24/38-00-R	38mm
M32N24/45-00-R	45mm
M32N24/32-00-R--G6	32mm
M32N24/43-00-R--G6	43mm
M32N24/55-00-R G6 (Rotating: Spring right)	55mm
M32N24--G6	18mm
M3N-G6 spring Right rotation	43
M3N-G6	43
M32N24-G6	18
M32N24-G6	24
M32N24-G6	28
M32N24-G6	43
M32-G9-Right	38
M32-G9-Left	38
M32N69-G60	28
M32N69-G60	38
M32N69-G60	48
M32N24-G6	32
M32N24-G6	45
M32N24-G6	55
M32N24-G6	70
M32N69-G60	48
M32N-G6	70
M32N24-24mm-G6	24
M37G-G9	43
M32-G9	45
M32-G6	55
M32-G9	22
M32-G9-right hand	35
M32-G9-left hand	35
M37G-G9	43
M32N69-38-00R-AQ1VGG (M32-G60)	38
M32N69-48-00-R	48

Mechanical Seal BGM M37 and M37G

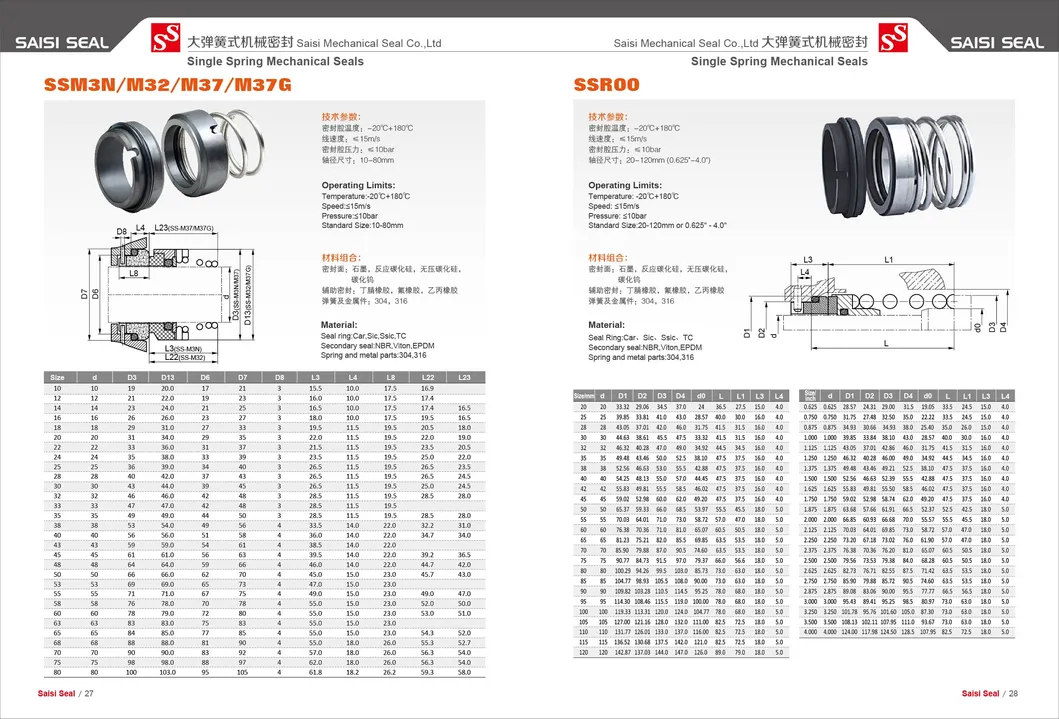

Note: L31 valid for M37; L3 valid for M37G.

Frequently Asked Questions (FAQ)

What are the temperature limits for the SSM37 mechanical seal?

The SSM37 mechanical seal is designed to operate within a temperature range of -20ºC to 180ºC.

Which standard models is this seal equivalent to?

This conical spring design is equivalent to the M37 and M37G series seals.

What materials are available for the seal rings?

We offer multiple material options for seal rings, including Car, Sic, Ssic, and TC (Tungsten Carbide).

Can this seal handle high-pressure environments?

The SSM37 is rated for operating pressures up to 10 bar.

What is the production capacity for these seals?

The facility maintains a production capacity of approximately 50,000 sets per year to ensure stable supply.

Does the product comply with international standards?

Yes, our seals meet CE and RoHS specifications, and we provide Standard, Nonstandard, and OEM options.
