Product Description

Basic Specifications

Model NO.

TS 960

Warranty

12 Months

Usage

Power Station, Gas, Sewage Treatment, Chemical, etc.

Sample

Available

Seal Type

Spring Seal / Mechanical Seal

HS Code

84842000

Origin

China

Capacity

1,000,000

★

Product Description

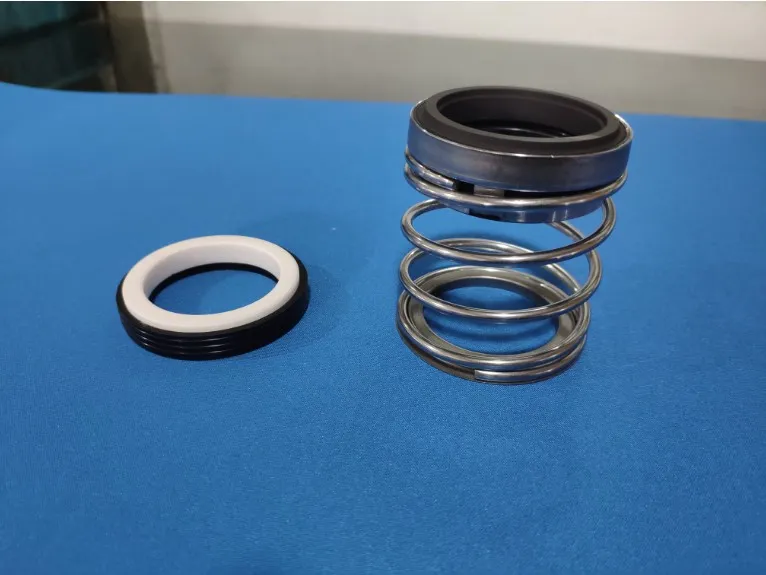

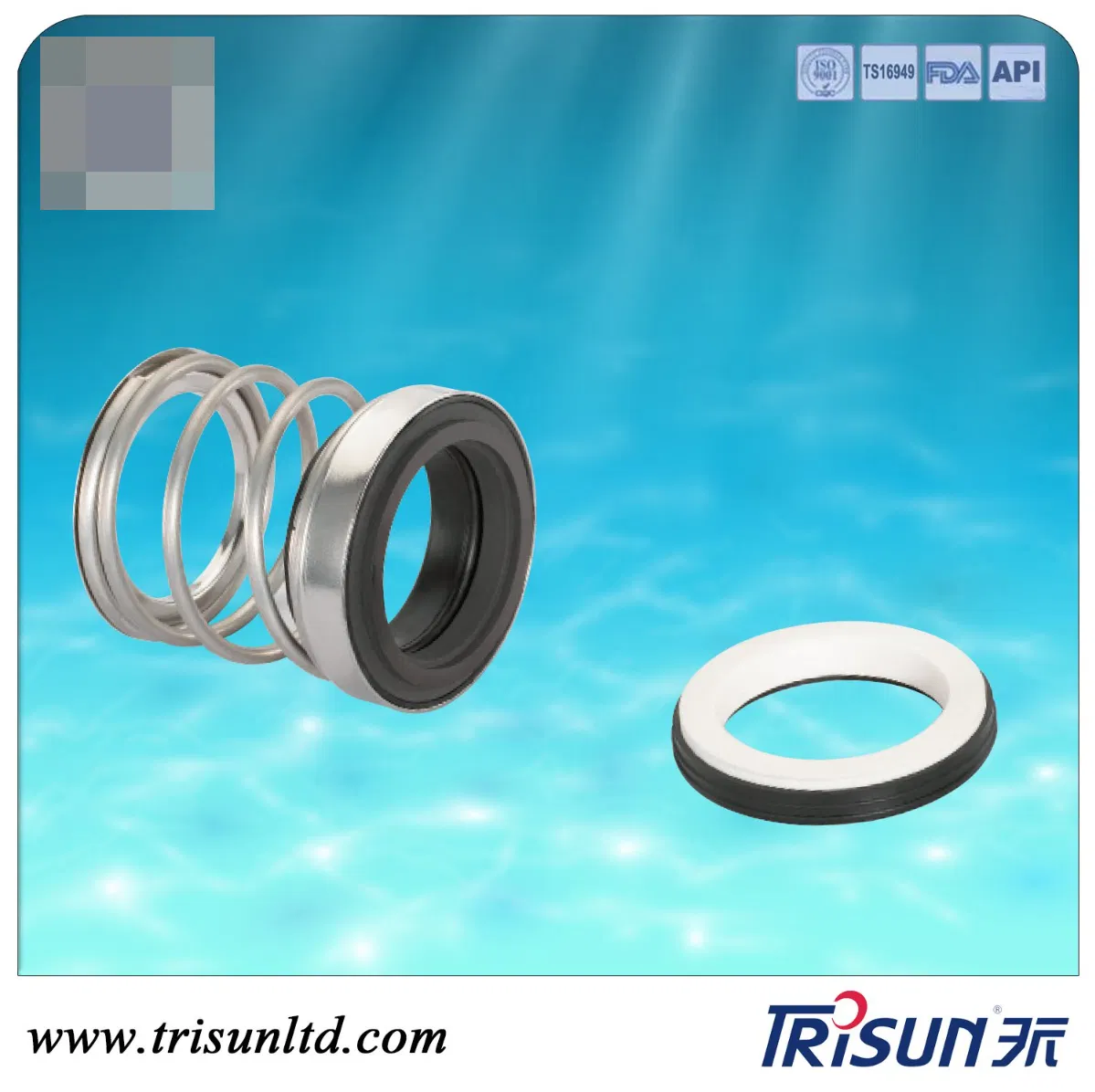

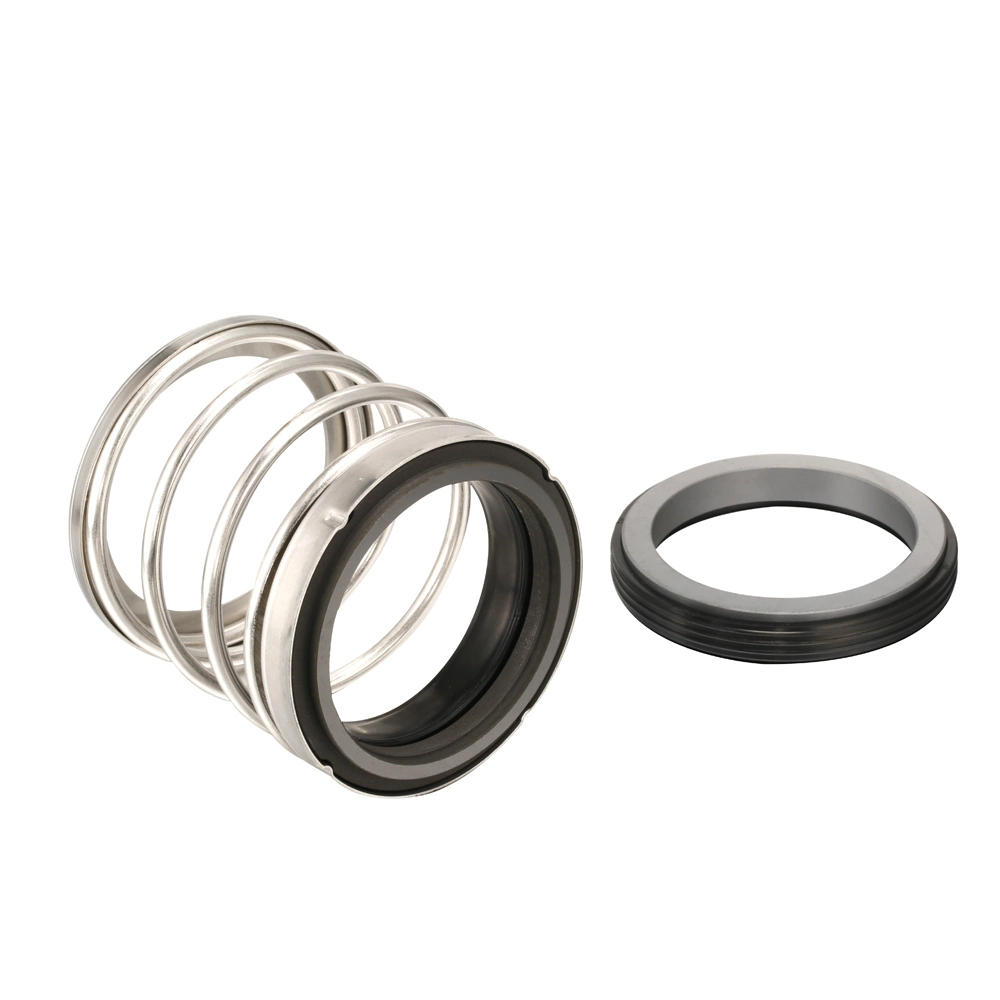

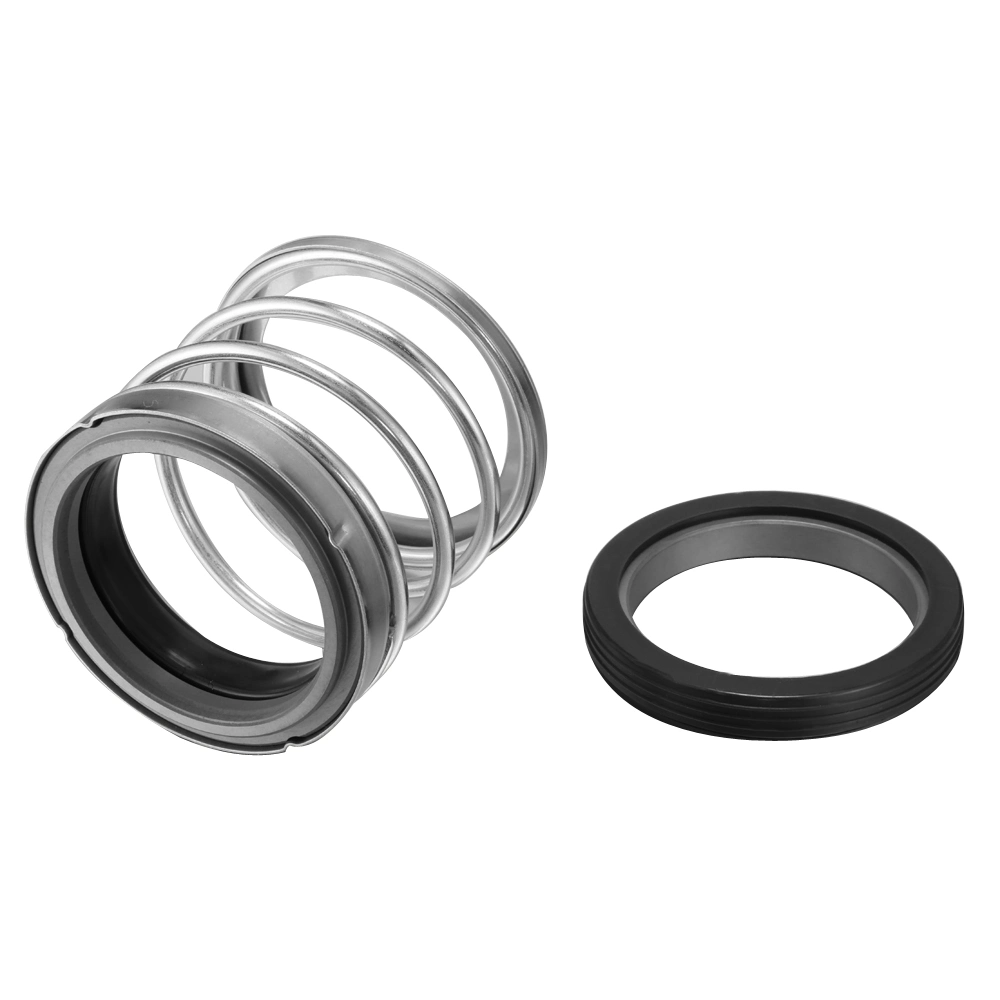

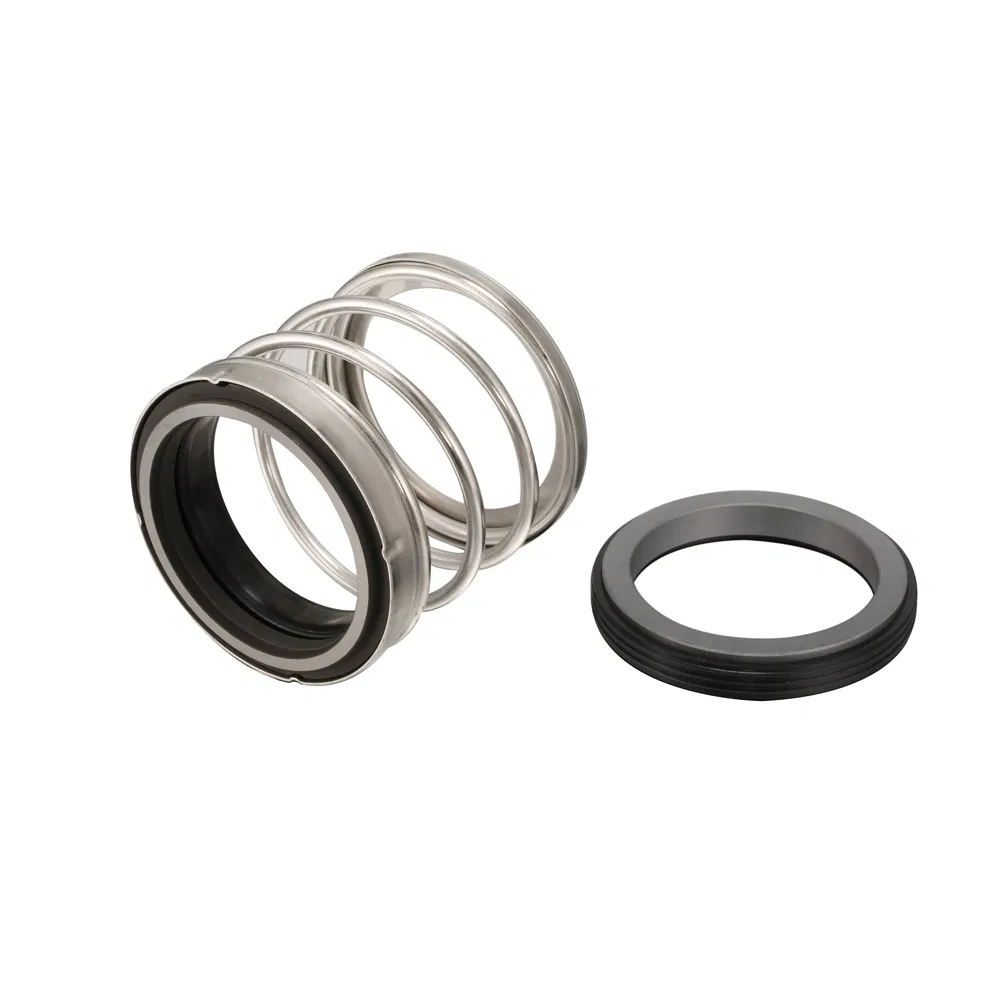

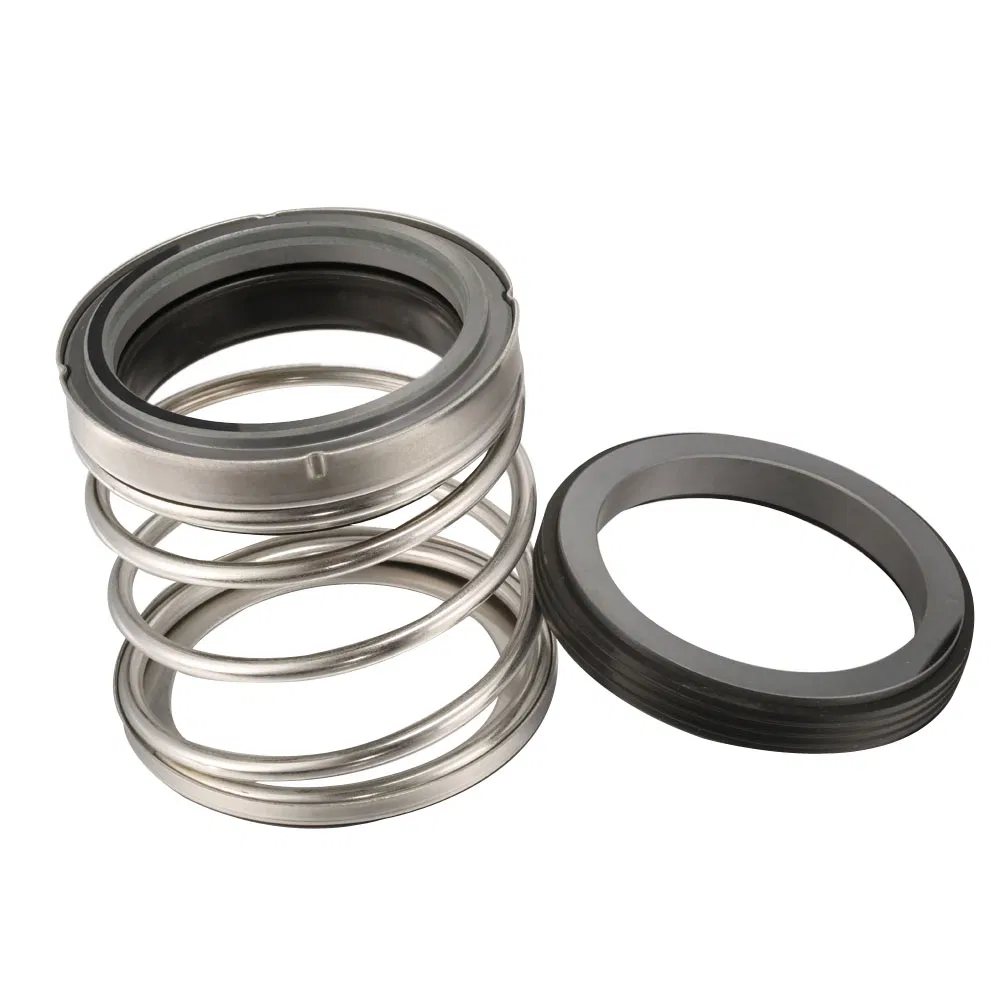

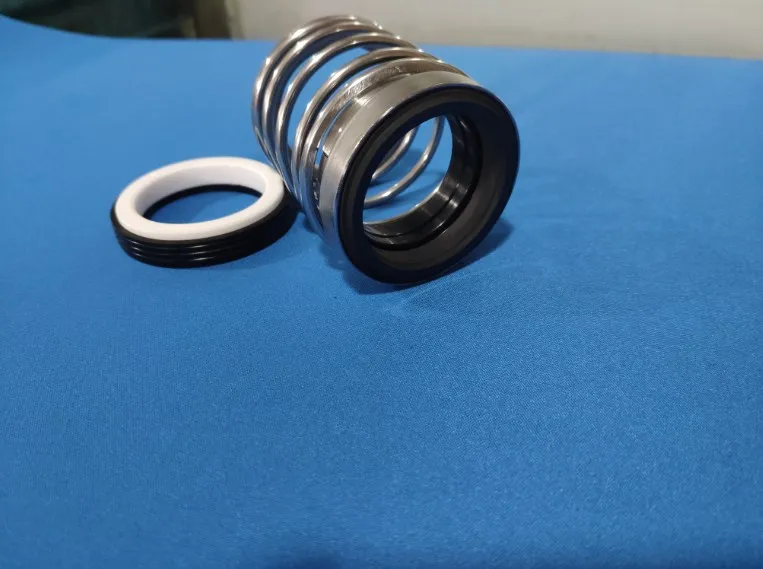

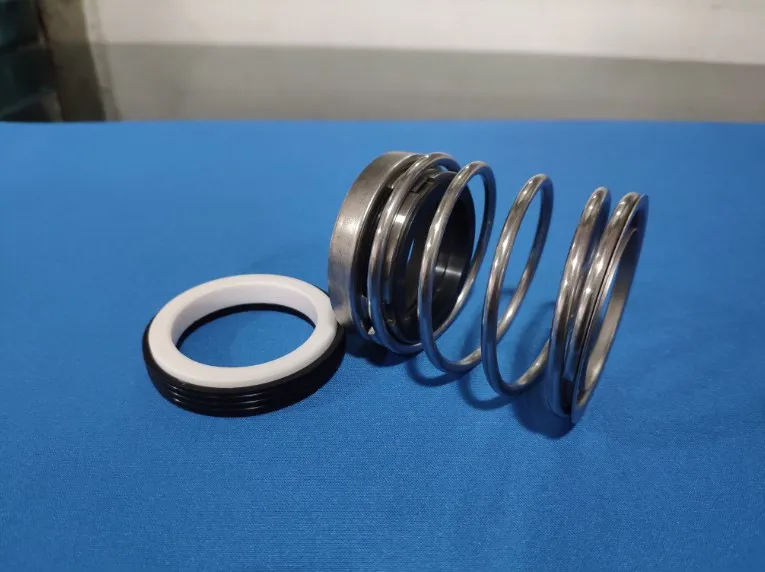

Mechanical seal model TS 960 is engineered for high performance in water pump applications. It features a robust design with material combinations such as Hot pressed carbon/Ceramics/NBR/ss304 and resin carbon/SIC/NBR/ss304. Customizations are available to meet specific client requirements.

Main Applications: Blower pumps, diving pumps, and circulating pump seals.

⚙

Technical Parameters

Operational Conditions
Temperature:	-50ºC to +200ºC
Pressure:	≤ 1.2Mpa
Speed:	≤ 20m/s
Material Selection
Stationary Ring:	Silicon Carbide, Reaction bonded, Resin Impregnate Carbon Graphite, Ni-binder Tungsten Carbide
Rotary Ring:	Ni-binder Tungsten Carbide (shrunk-in), Silicon Carbide, Reaction bonded (shrunk-in)
Secondary Seal:	NBR, EPDM, CR, Viton, Aflas
Spring & Metal:	F, G
Suitable Media:	Clean water, sewage water, oil, and moderately corrosive fluids

♦

Design Features

Single face and balanced design for enhanced stability.
Fully conforms to DIN24960 and GB6556 international standards.
Interchangeable with major industry brands for versatile maintenance.

Frequently Asked Questions

What are the primary applications for the TS 960 mechanical seal?

The TS 960 is primarily used for water pumps, including blower pumps, diving pumps, and circulating pumps. It is also suitable for sewage treatment and chemical processing.

What temperature range can this seal handle?

The TS 960 is designed to operate efficiently within a temperature range of -50ºC to +200ºC.

Is the TS 960 seal compliant with international standards?

Yes, the design conforms to both DIN24960 and GB6556 standards, ensuring global compatibility.

What materials are available for the secondary seal?

We offer a variety of materials for secondary seals, including NBR, EPDM, CR, Viton, and Aflas, depending on your medium requirements.

Can this seal be used for corrosive fluids?

Yes, the TS 960 is suitable for oil and other moderately corrosive fluids, as well as clean and sewage water.

What is the maximum operational pressure for this model?

The TS 960 mechanical seal can handle operational pressures of up to 1.2Mpa.
