Working Conditions:
Pumps: Water, oil, acids, alkali with low corrosion, etc.
Materials:
• Stationary Ring: Sic / TC
• Rotary Ring: Carbon / Sic / TC
• Secondary Seal: NBR / EPDM / Viton
• Spring and Metal Part: Stainless Steel

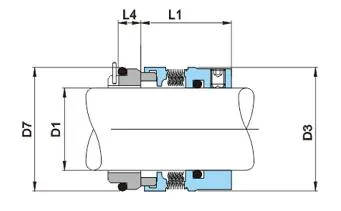

| Size/Metric D1(mm) | Size Code | D3 | L1 | D7 | L4 |
|---|---|---|---|---|---|
| 16 | 0160 | 30.0 | 32.7 | 27.0 | 10.0 |
| 18 | 0180 | 32.0 | 30.7 | 33.0 | 7.0 |
| 20 | 0200 | 33.5 | 30.7 | 35.0 | 7.0 |
| 22 | 0220 | 36.5 | 30.7 | 37.0 | 7.0 |
| 24 | 0240 | 39.0 | 28.7 | 39.0 | 11.5 |
| 25 | 0250 | 39.6 | 28.7 | 40.0 | 11.5 |
| 30 | 0300 | 45.0 | 31.2 | 45.0 | 11.5 |
| 35 | 0350 | 49.2 | 31.2 | 50.0 | 11.5 |
| 40 | 0400 | 55.5 | 31.2 | 58.0 | 14.0 |
| 50 | 0500 | 65.0 | 32.7 | 70.0 | 15.0 |
| 60 | 0600 | 74.6 | 37.7 | 80.0 | 15.0 |
| 80 | 0800 | 98.4 | 42.0 | 105.0 | 18.2 |
| 100 | 1000 | 117.4 | 48.0 | 125.0 | 17.2 |
