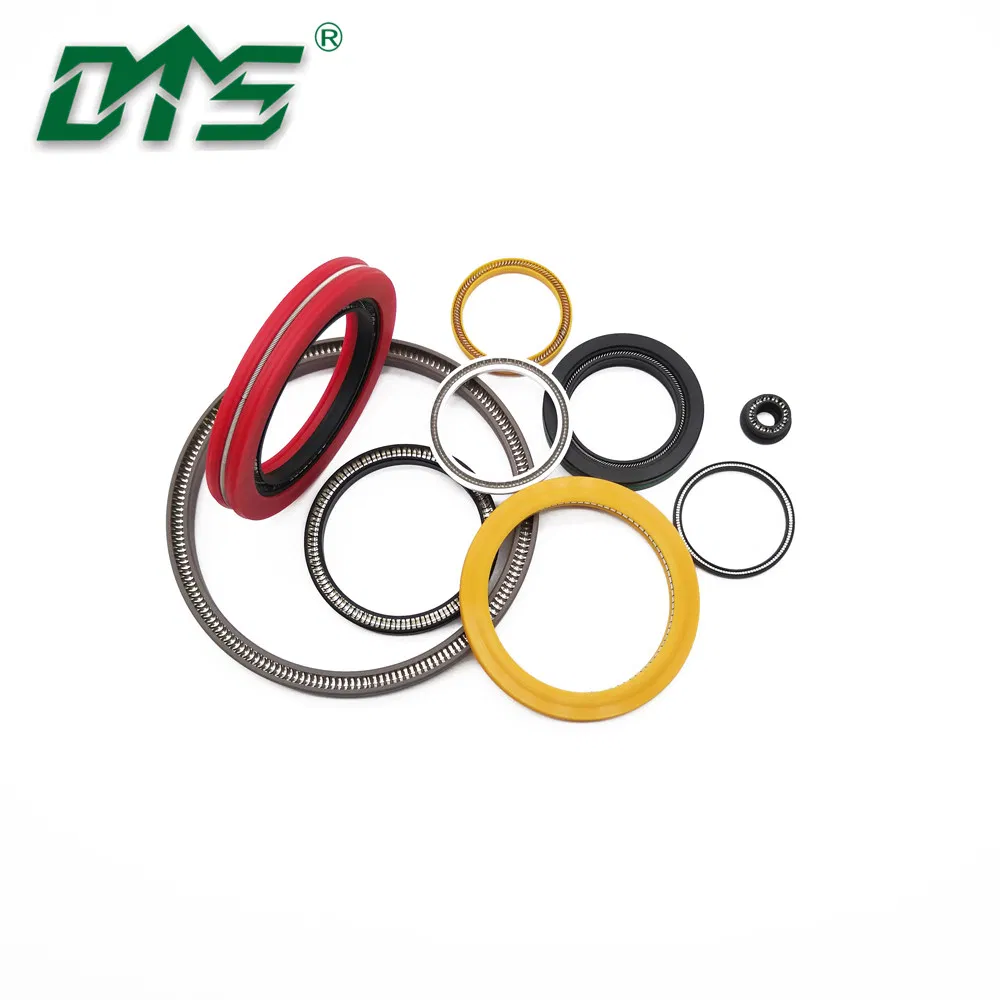

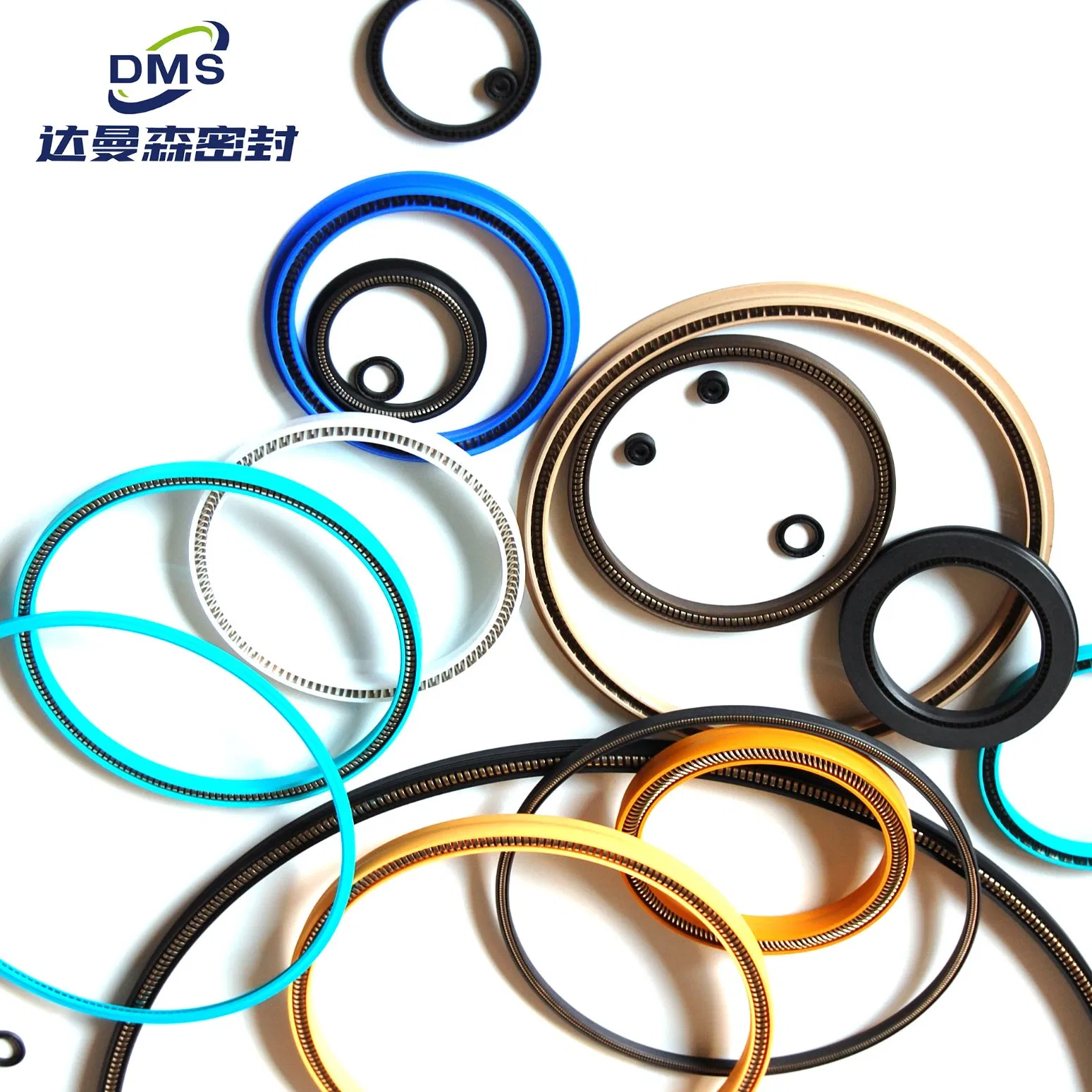

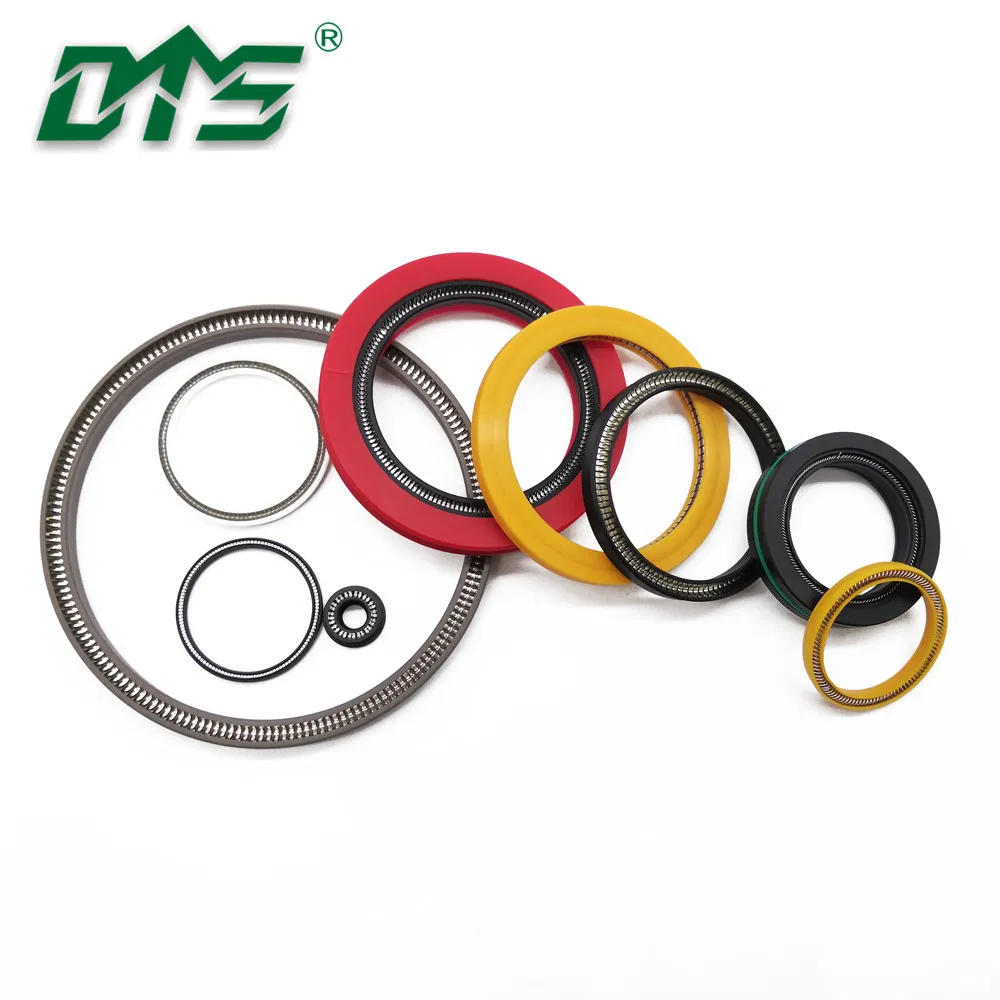

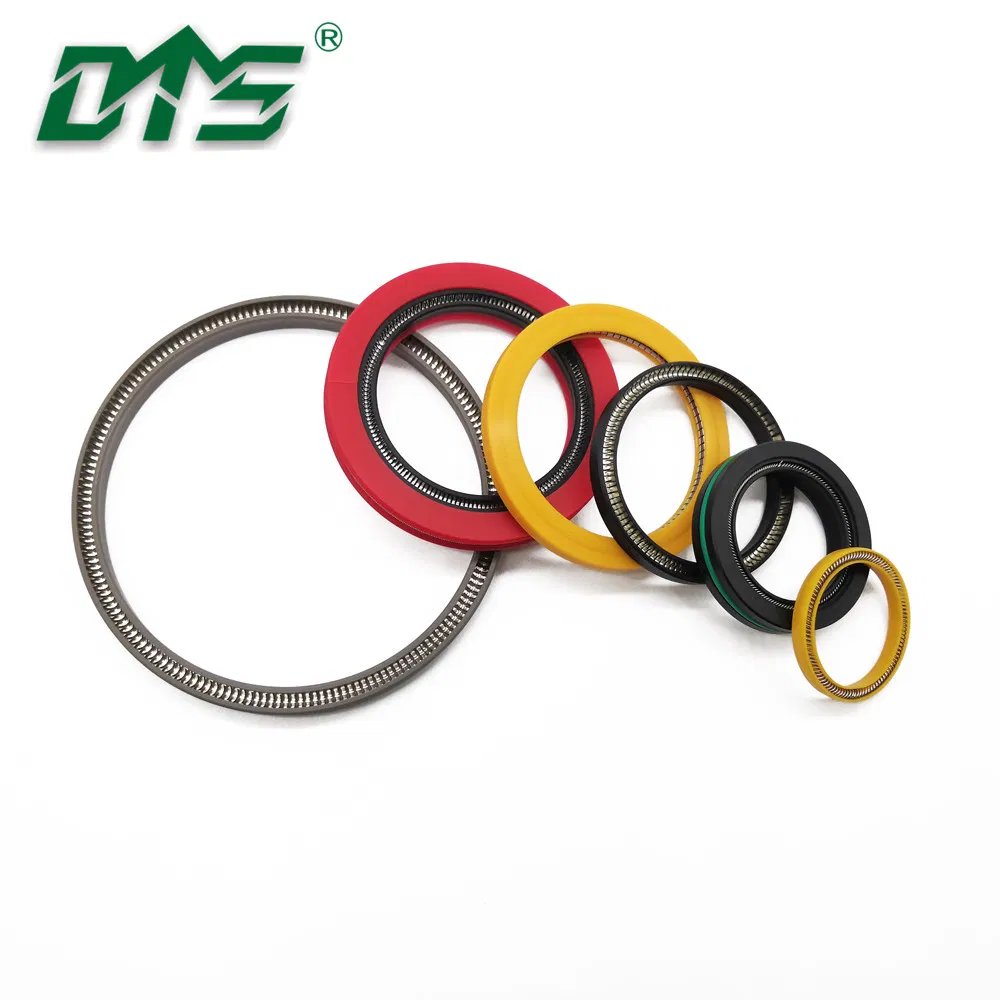

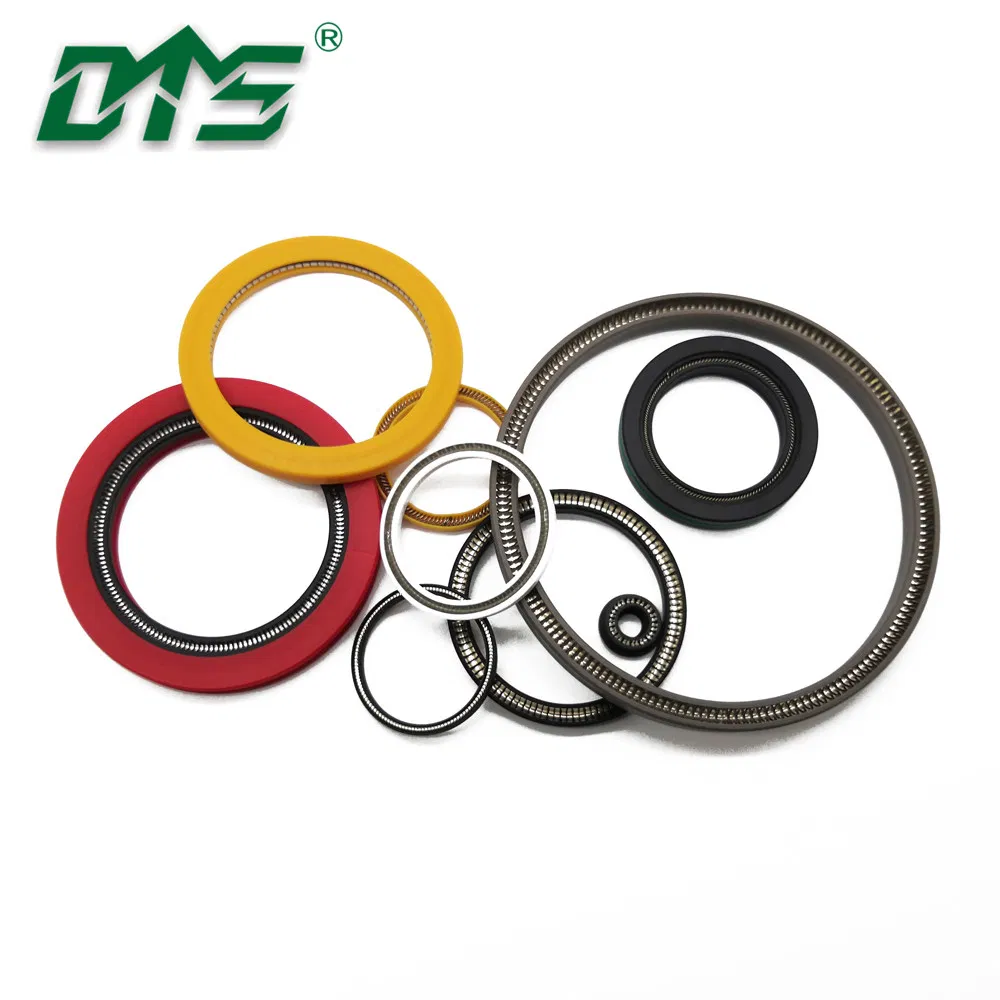

Hydraulic Mechanical Pump Valve Variseal Customized PTFE Carbon Praphite Peek Double Lip Piston Rod Rotary Oil Spring Energized Seal

1 / 5

Hydraulic Mechanical Pump Valve Variseal Customized PTFE Carbon Praphite Peek Double Lip Piston Rod Rotary Oil Spring Energized Seal

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Product Name

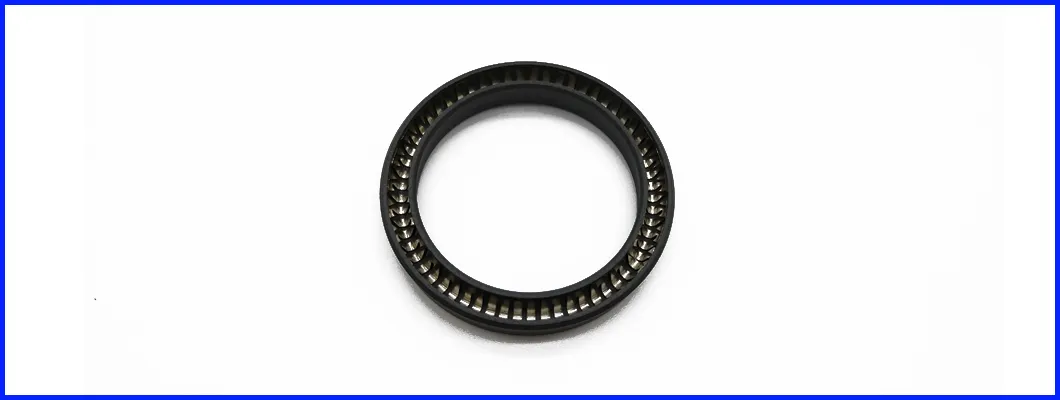

Hydraulic Seals / Spring Energized Seal

Material

Bronze PTFE, NBR, FKM

Temperature

-45~200 Degrees

Pressure

0~60MPa

Speed

15m/S

Specification

3~1600mm

Certification

ISO, IATF

Process

CNC Machined

Product Display

Technical Specifications

Item	Specifications
Product Category	Hydraulic seals, Oil seals, O-Rings
Available Materials	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Standard Types	GSJ, GSF, SPGO, KZT, GSZ, GRS, GNS, WR, BRT, GST, TDI, DDKK, DAQ, SPGW, TPM, TC, VA, HBY, DHS, UNS, UHS, DFI, DFA, DFAI etc.
Properties	High/low temperature resistance, high/low pressure resistance, friction resistance
Medium	Hydraulic oil, anti-fire fluid, water, gas etc.
Applications	Excavators, loaders, graders, dump trucks, forklifts, bulldozers, mining trucks, cranes, agricultural machinery.

Production & Quality

Packaging & Logistics

Package Size: 30.00cm * 50.00cm * 20.00cm

Gross Weight: 15.000kg

Capacity: 100,000 PCS/Day

Frequently Asked Questions

What materials are available for these hydraulic seals?

We offer a wide range of materials including PTFE (with Bronze, Carbon, Glass, or MOS2 fillers), PU, NBR, FKM, PEEK, and specialized polymers like FFKM and UPE to suit different environment requirements.

What is the temperature and pressure range for these seals?

Our seals are designed to operate in temperatures ranging from -45 to 200 Degrees Celsius and can withstand pressures from 0 up to 60MPa.

Are these seals suitable for high-speed applications?

Yes, these seals are engineered for high performance with a maximum speed capacity of 15m/s, making them ideal for rotary and reciprocating hydraulic cylinders.

In which industries can these seals be applied?

They are widely used in heavy machinery including excavators, loaders, dump trucks, forklifts, cranes, mining equipment, and various agricultural machinery.

What certifications do your products hold?

Our production process and products are certified under ISO and IATF standards, ensuring consistent quality and reliability for industrial use.

Can you provide custom sizes for specific equipment?

Yes, while we offer standard sizes ranging from 3mm to 1600mm, we also utilize CNC processing to provide customized dimensions based on your specific technical requirements.
