Product Description

Basic Product Information

Model NO.MG1

TemperatureHigh Temperature

PerformanceHigh Pressure

StandardStandard

TypeHU1

BalanceUnbalanced

MaterialSic/Sic/V

Use forWater Pump

HS Code84842000

Production Capacity100,000,000 PCS/Year

Packaging & Delivery

Package Size8.00cm * 8.00cm * 10.00cm

Gross Weight0.200kg

Transport PackageCartons

Product Description

Product Shows

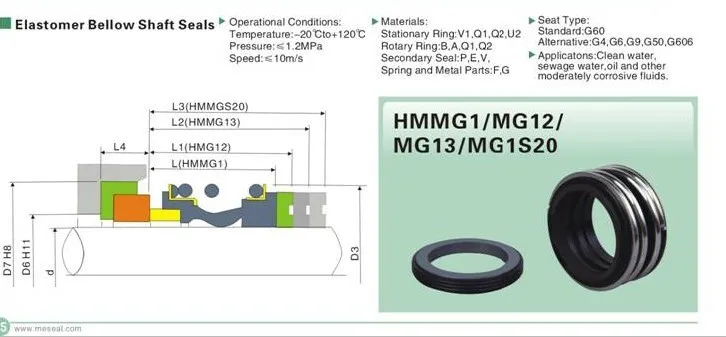

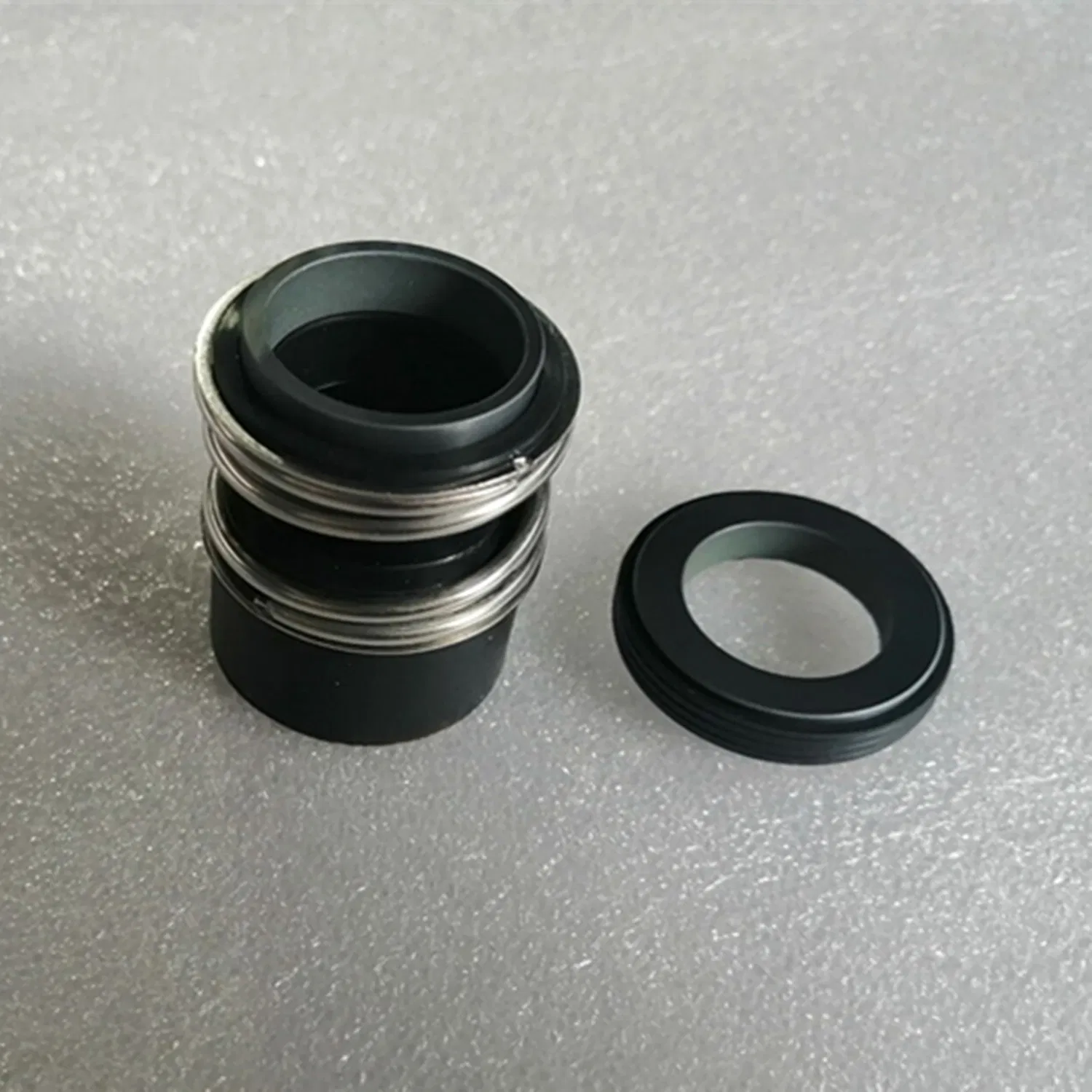

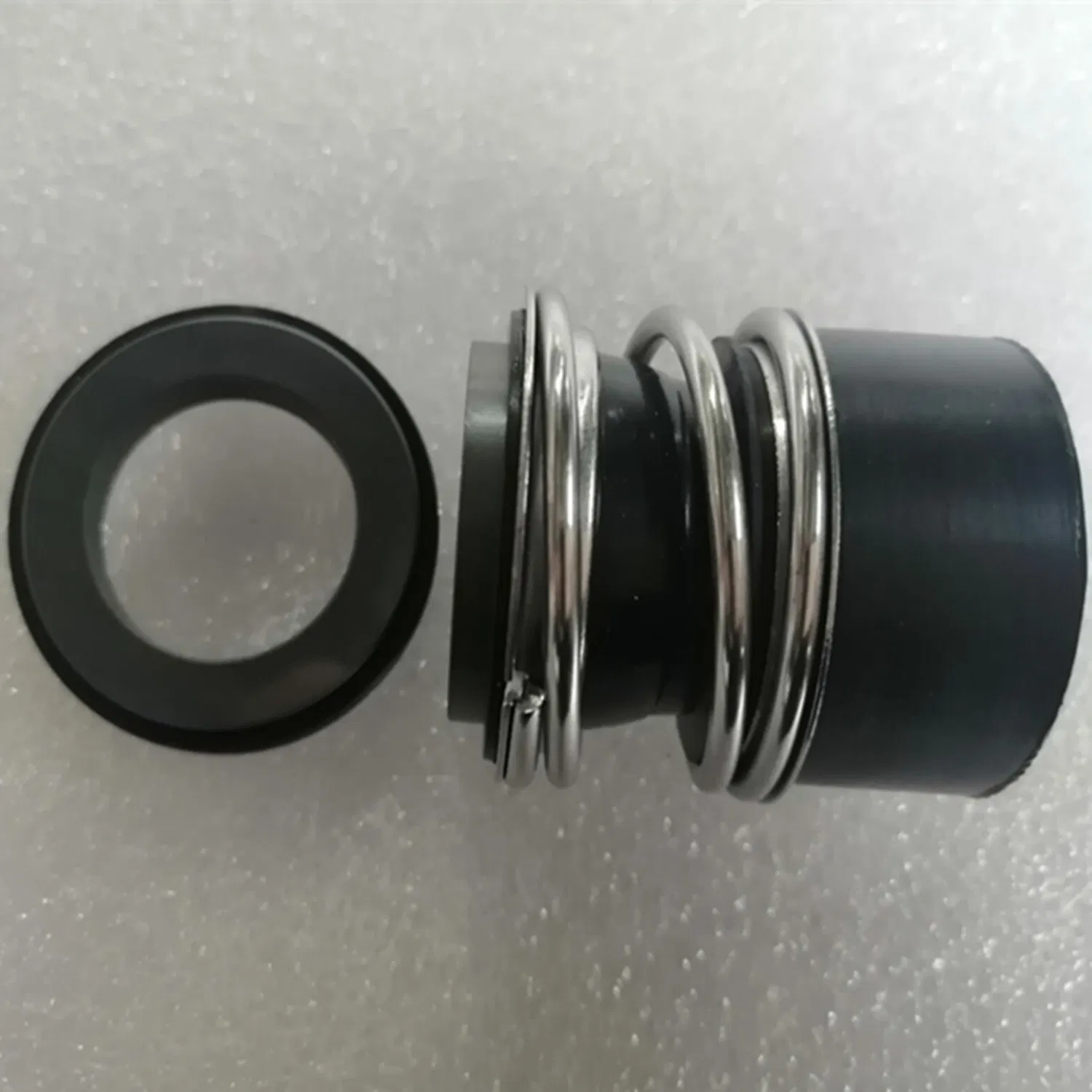

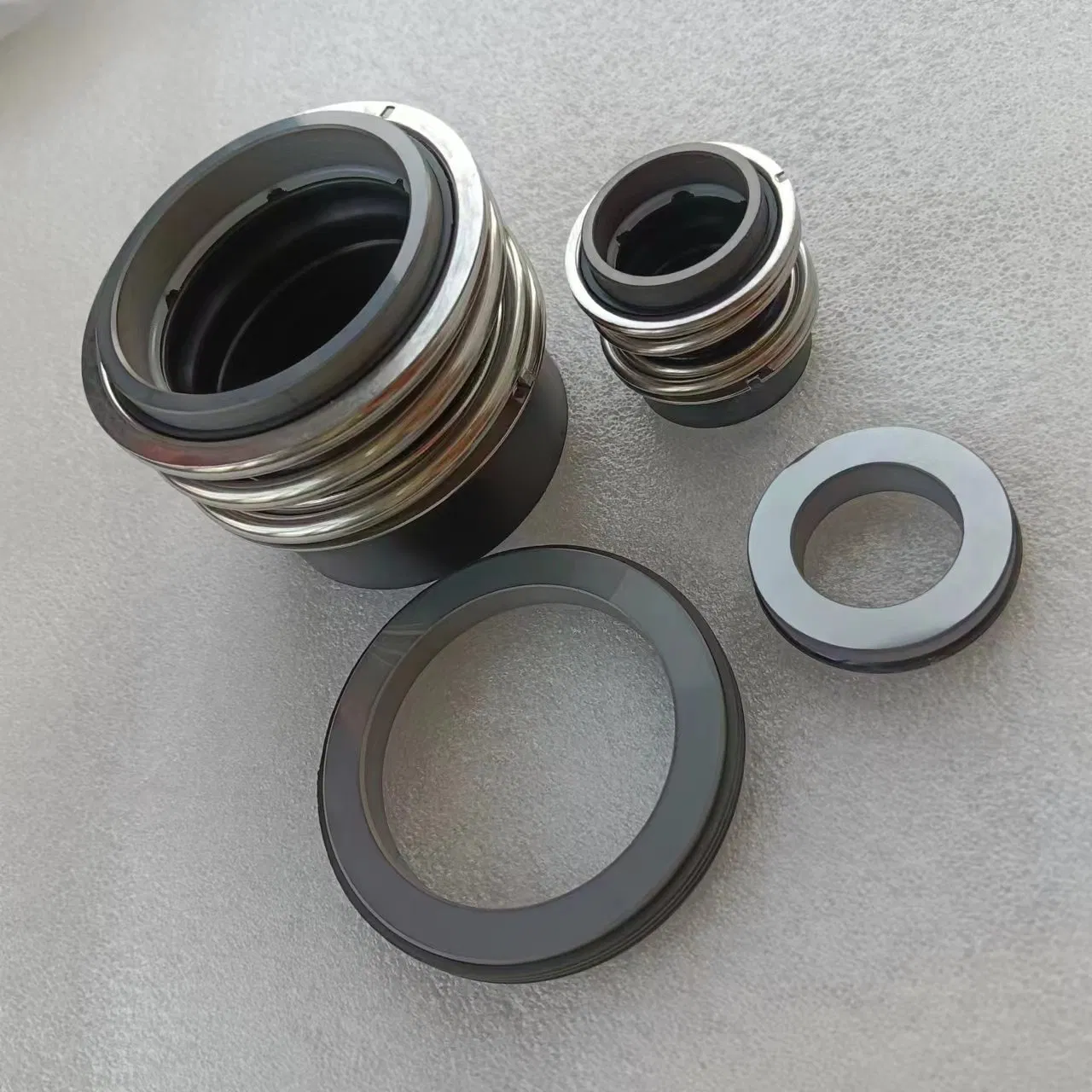

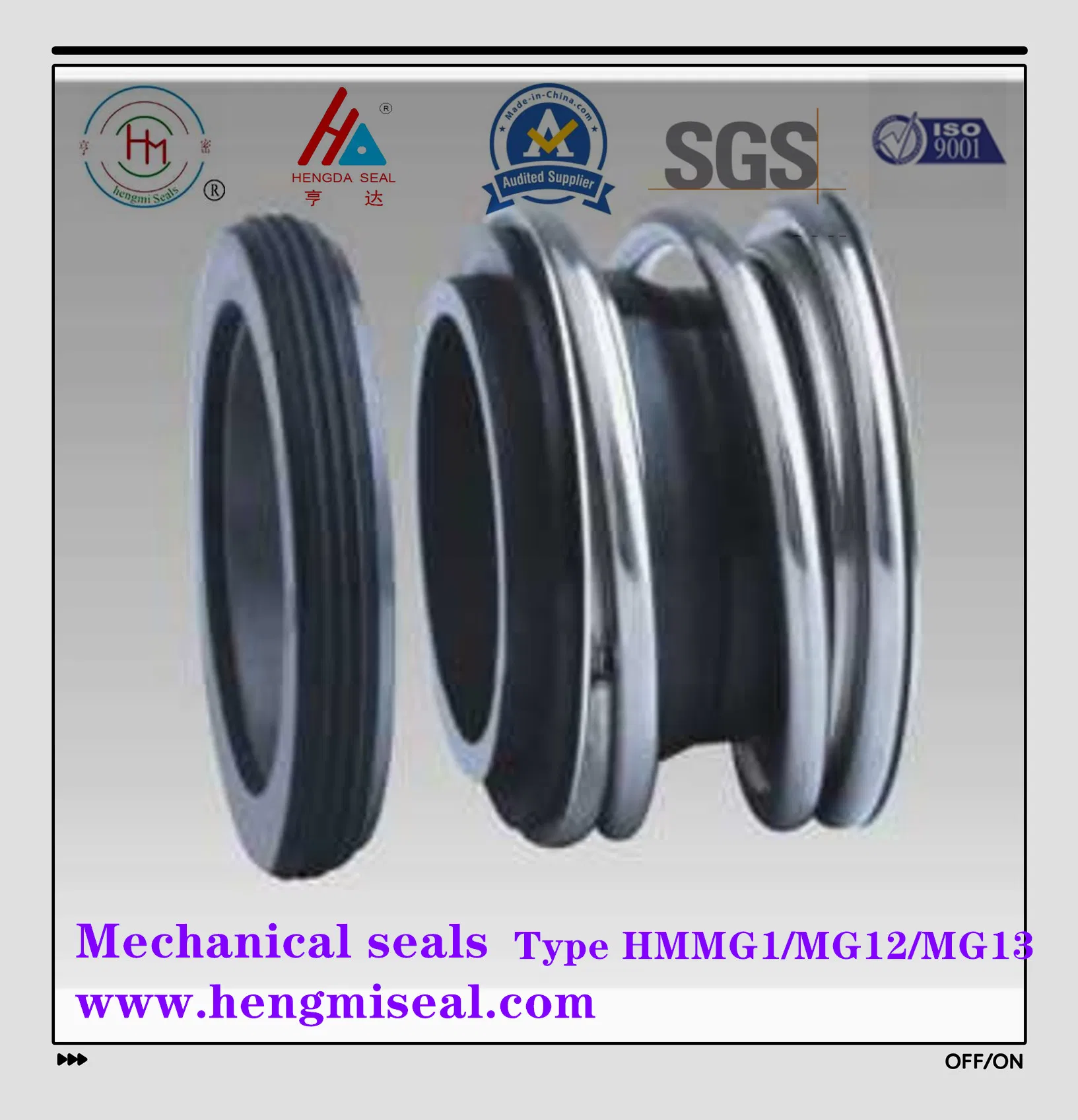

Rubber Bellow seal / R21 for pumps, equals to MG1 water pump mechanical seal
Our seals can replace the original seals efficiently.
We always keep balance both on Price and Quality.

Performance Capabilities

Temperature	-30ºC to 200ºC (dependent on the elastomer)
Pressure	Up to 12 bar
Speed	Up to 12 m/s
Axial Float Allowance	±0.1mm

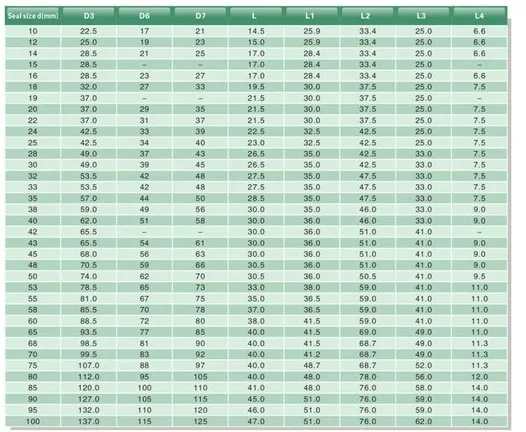

Sizes	10mm to 100mm

Materials Combination

Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
Bellow: NBR, EPDM, FKM etc.
Spring: SS304, SS316
Metal parts: SS304, SS316

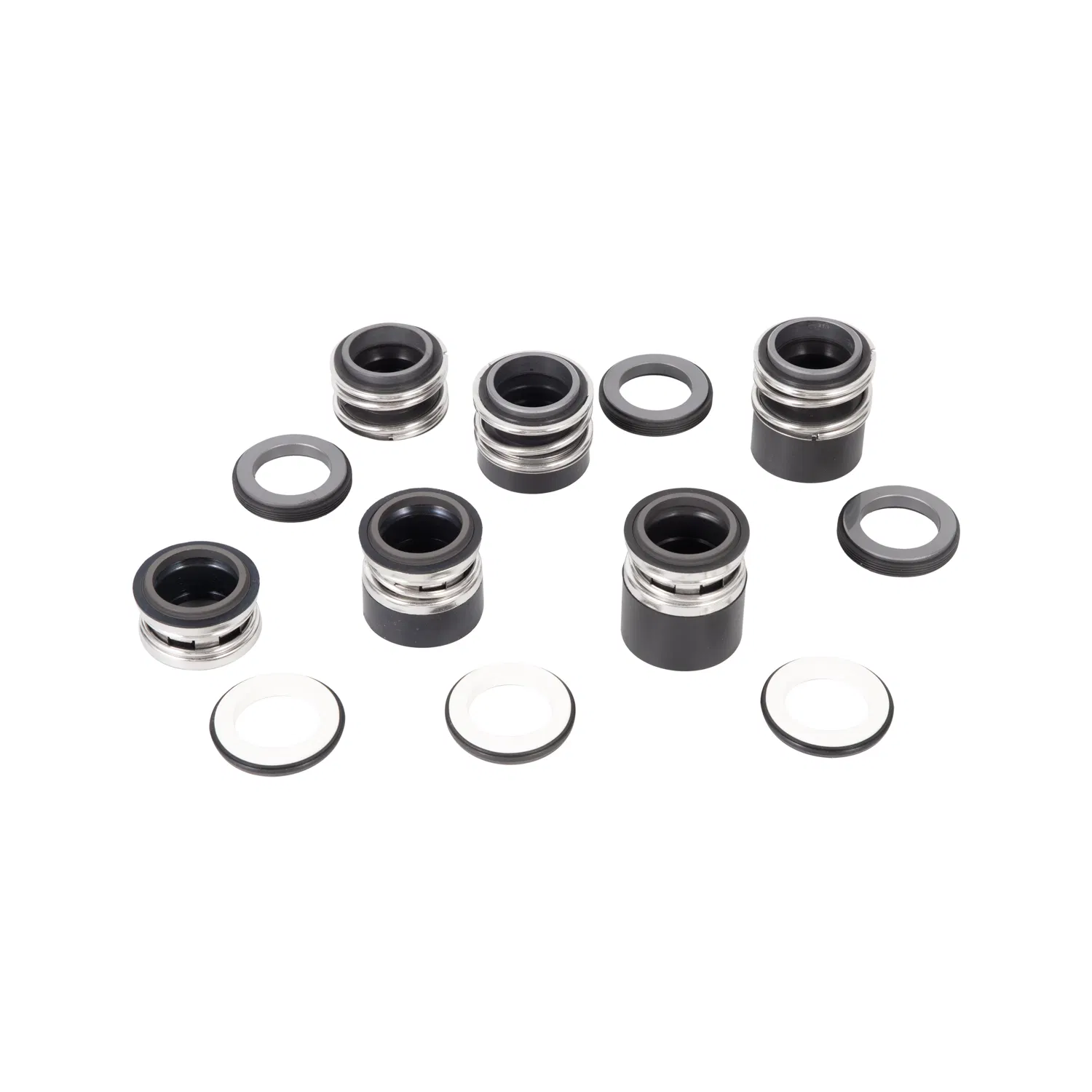

Note: This product is in stock; we can ship immediately once payment is verified. We also provide MG12, MG13, EMG1, EMG12, EMG13 mechanical seals.

Major standard mechanical seals for pump supported:

Z1, Z2, Z3, Z4, 7D, 8, 8D, 12D, M2N, M2NT, 1527, 58U, 59U, 58B, 59B, W01, W02, HJ92N, 891, M7N, M74, H7N, M74D, H74D, 104U, 103U, 113, HOM2, 155, 155C, MG1/MG12/MG13/MG1S20, 502, T03D, BT-RN UN AES T03D Vulcan 12DIN Roten UNITEN 2 Flowserve 42D LATTY T900D, M58K, CHL16, MG9, MG912, MG913, MG910, MG920, T01FS, MG921, M37G, M377, M3N, M2N, M2NT, FBD, 580, CDLC, GLF, 139, 8B1, 8BT, HRN, 126, B092U, 204, 5610, 5610Q, 5611Q, 2100/2102/2103, MG9, 1, 1A, FBD, 560, 560C, 301, 166, 560D, HQQE, BQQE.

Frequently Asked Questions

Q1: What are the main applications for the MG1 mechanical seal?

The MG1 is a rubber bellow seal primarily used for water pumps. It is equivalent to R21 and is designed for high-performance fluid sealing.

Q2: What temperature and pressure ranges can this seal handle?

It can operate in temperatures ranging from -30ºC to 200ºC (depending on the elastomer material) and can handle pressures up to 12 bar.

Q3: Are these seals compatible with original equipment manufacturer (OEM) parts?

Yes, our seals are designed to be high-quality replacements for original seals, maintaining a strict balance between price and performance.

Q4: What materials are used in the construction of the MG1 seal?

The faces and seats are typically made of Carbon, SiC, or TC. Bellows are available in NBR, EPDM, or FKM, while metal parts and springs are made of SS304 or SS316 stainless steel.

Q5: What quality standards do your products follow?

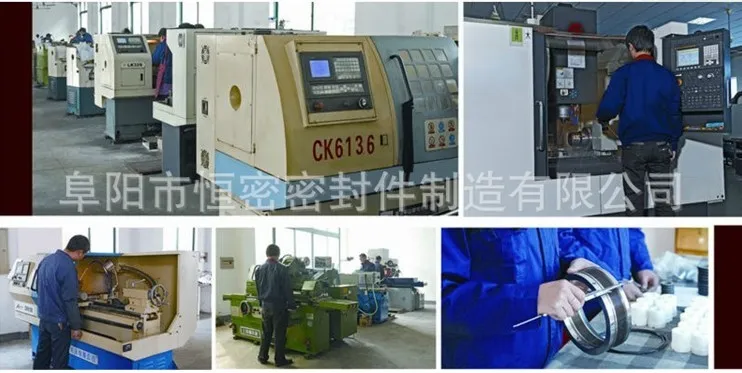

Quality is our priority. Our production processes adhere to strict quality control standards, and our facility has gained ISO9001 authentication.

Q6: What is the typical order process for these seals?

The process includes inquiry and specification alignment, quotation, payment via T/T or L/C, sample confirmation (if required), mass production, and final shipping by sea, air, or courier.
