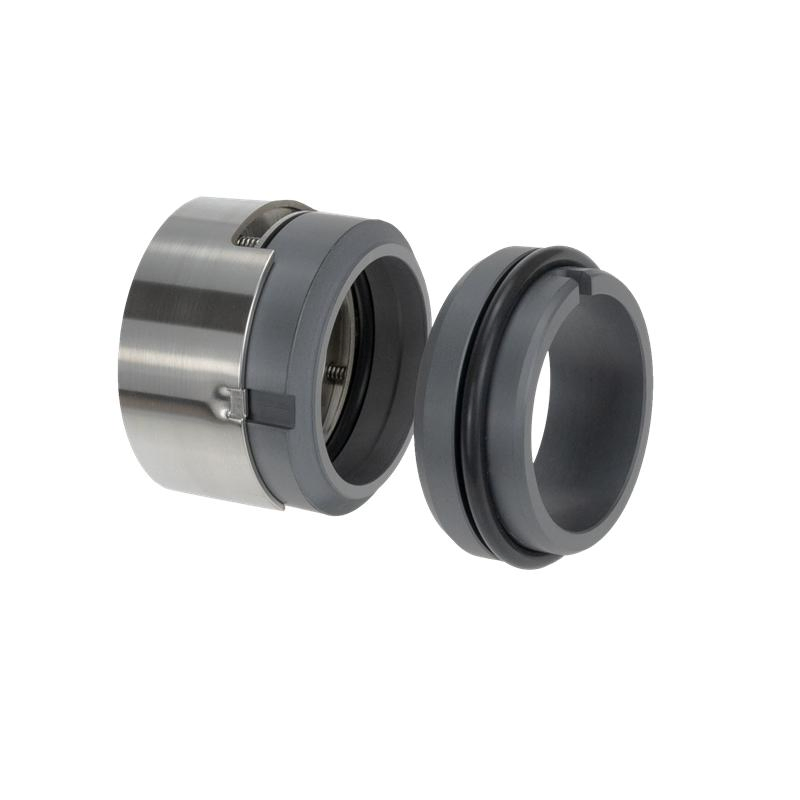

Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
1 / 5
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal
Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal

Mechanical Seal Tg71u|Pump Seal|Wave Spring Mechnaical Seal

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Overview & Basic Info
Model NO.
TG71U
Type
Tg71u
Balance
Unbalanced
Certification
ISO, FDA, Reach, RoHS
Delivery
Faster Delivery Time
OEM/ODM
Available
Applications
Sewage Pumps, Chemical Pumps, Process Pumps
Replacement
Wave Spring Mechanical Seal
Specification
14...100mm
Origin
China
🛠️ Product Description

TG71U and TG74U feature a mature sealing structure design, engineered for various media conditions through extended material options. Mass-produced in standard modular formats, they offer a low-cost, competitive solution for industrial pump applications.

🌟 Key Features
  • High-Performance Wave Spring
  • Bi-directional Rotation Capability
  • Strict EN 12756 Standards Compliance
  • Equivalent to M7N Sealing Systems
🧪 Combination Materials

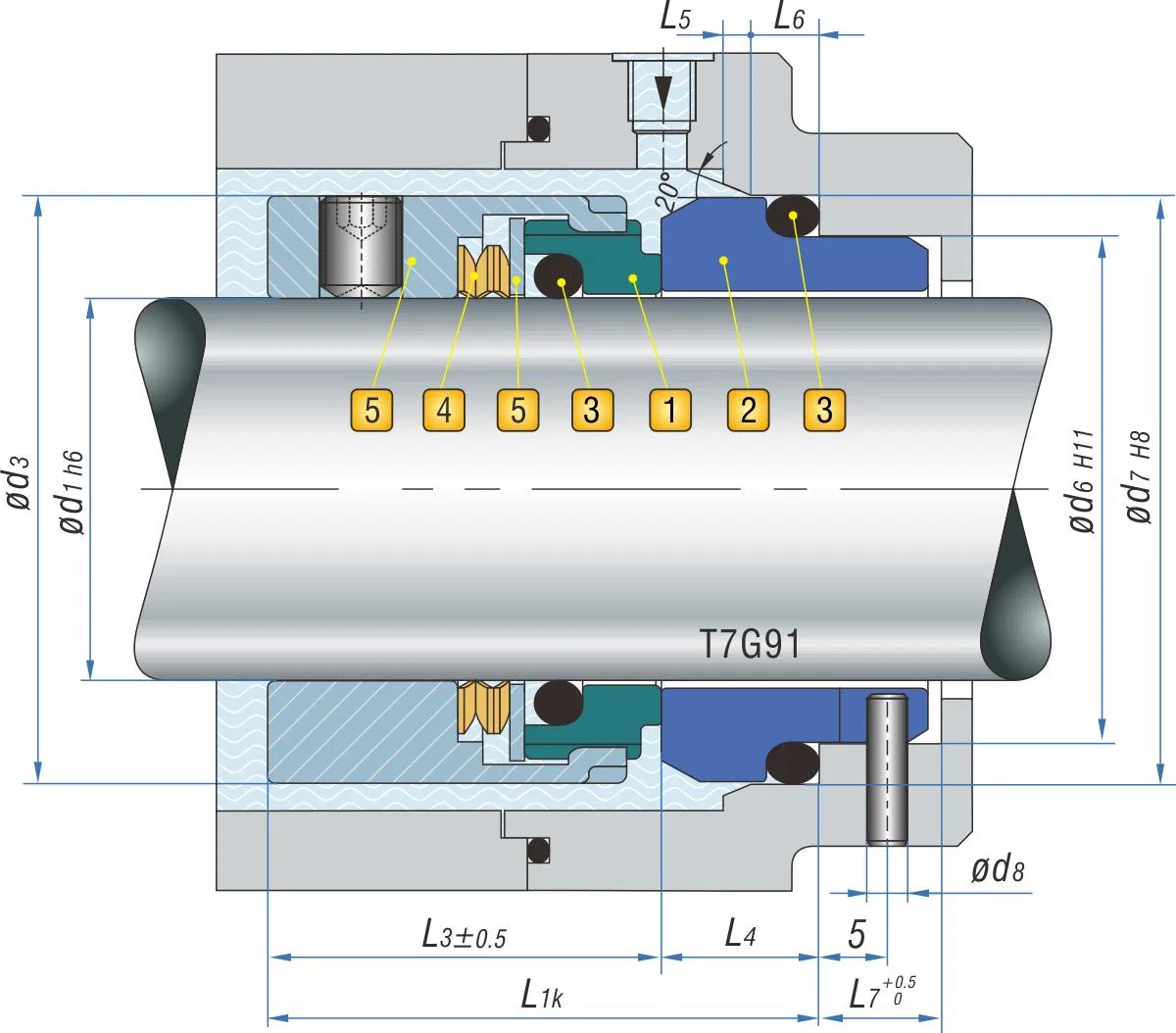

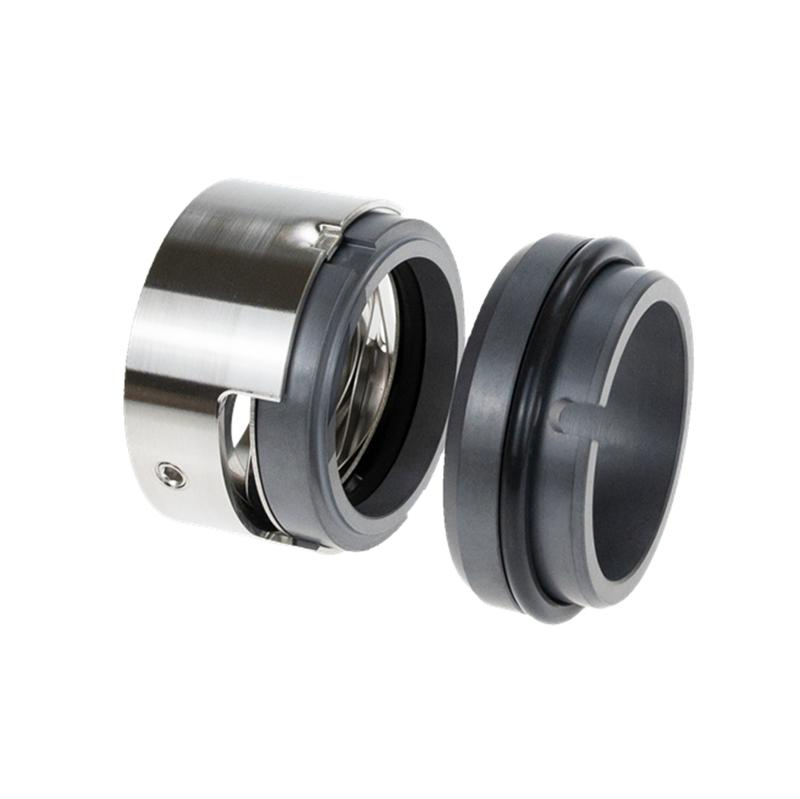

Mechanical Seal Structure
1. Rotary Face Reaction Bonded Sic (RBSIC), Sintered Silicon Carbide (SSlC), Tungsten Carbide, Cr-Steel.

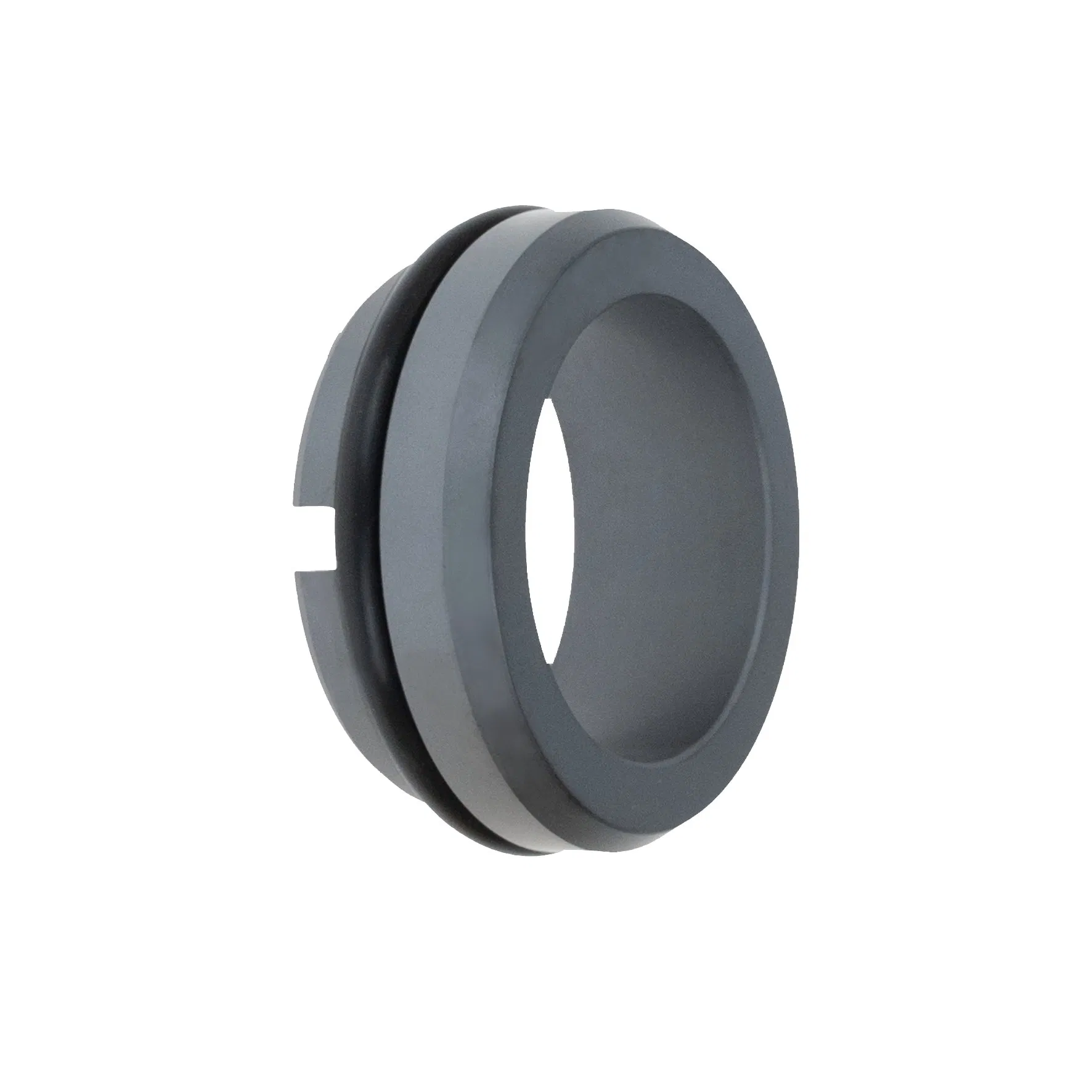

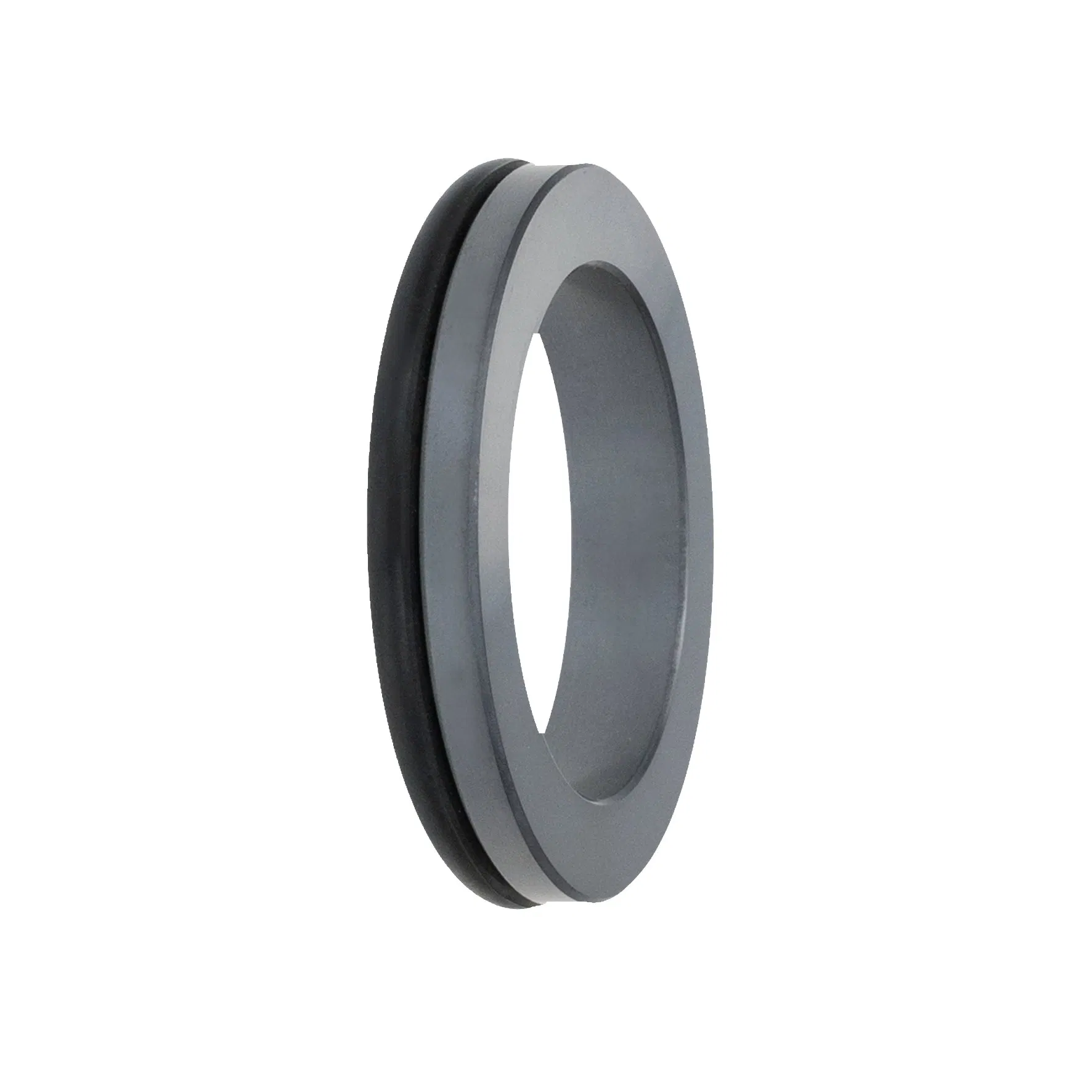

2. Stationary Seat Carbon graphite (Resin/Antimony impregnated), RBSIC, SSlC, Tungsten Carbide.
3. Auxiliary Seal FKM (Fluorocarbon Rubber), EPDM, FFKM (Perfluorocarbon Rubber).
4. Spring & Metal Parts AISI 304 (GrNi-Steel), AISI 316 (GrNiMo-Steel).
📸 Technical Drawings & Visuals
Technical Drawing 1
Technical Drawing 2
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
🔗 Related Products
Related Seal 1
Related Seal 2
Related Seal 3
Related Seal 4
Related Seal 5
Related Seal 6
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a factory manufacturing mechanical seals and parts. We provide comprehensive OEM and after-sale services, exporting to over 108 countries.
Can you provide videos of the products in operation?
Certainly, we have videos of every standard unit and can send them via email or your preferred communication channel.
What payment methods do you accept?
We accept T/T, Paypal, and various online payment platforms for your convenience.
What quality certifications do your seals hold?
Our products have passed ISO9001:2008, FDA, REACH, and ROHS. We also hold EC1935 2004 Certification.
How long has the manufacturing facility been established?
The production and seal manufacturing expertise dates back to 1982.
Is technical support available for installation?
Yes, we provide technical guidance and support for all our wave spring mechanical seals to ensure proper installation and performance.
