| Model NO. | GSMA |
| Speed | General Speed Mechanical Seal |
| Temperature | Temperature Mechanical Seal |
| Performance | High Pressure |
| Standard | Standard |
| Balance | Balanced |
| Style | Mechanical Seal |
| Features | Replace 5610, Cssn Cartex-Asqn |
| Specification | 25-70mm / 1.00"-2.75" |
| Origin | China |
| HS Code | 8484200090 |

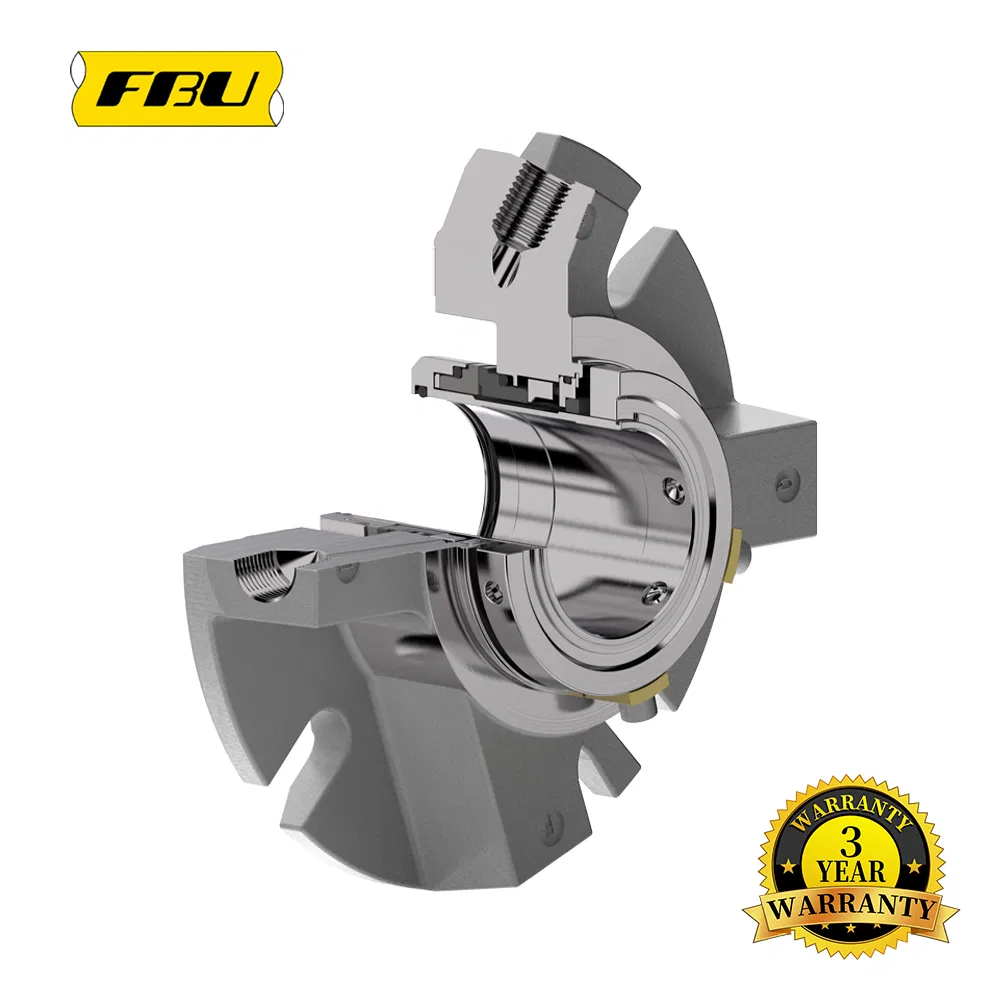

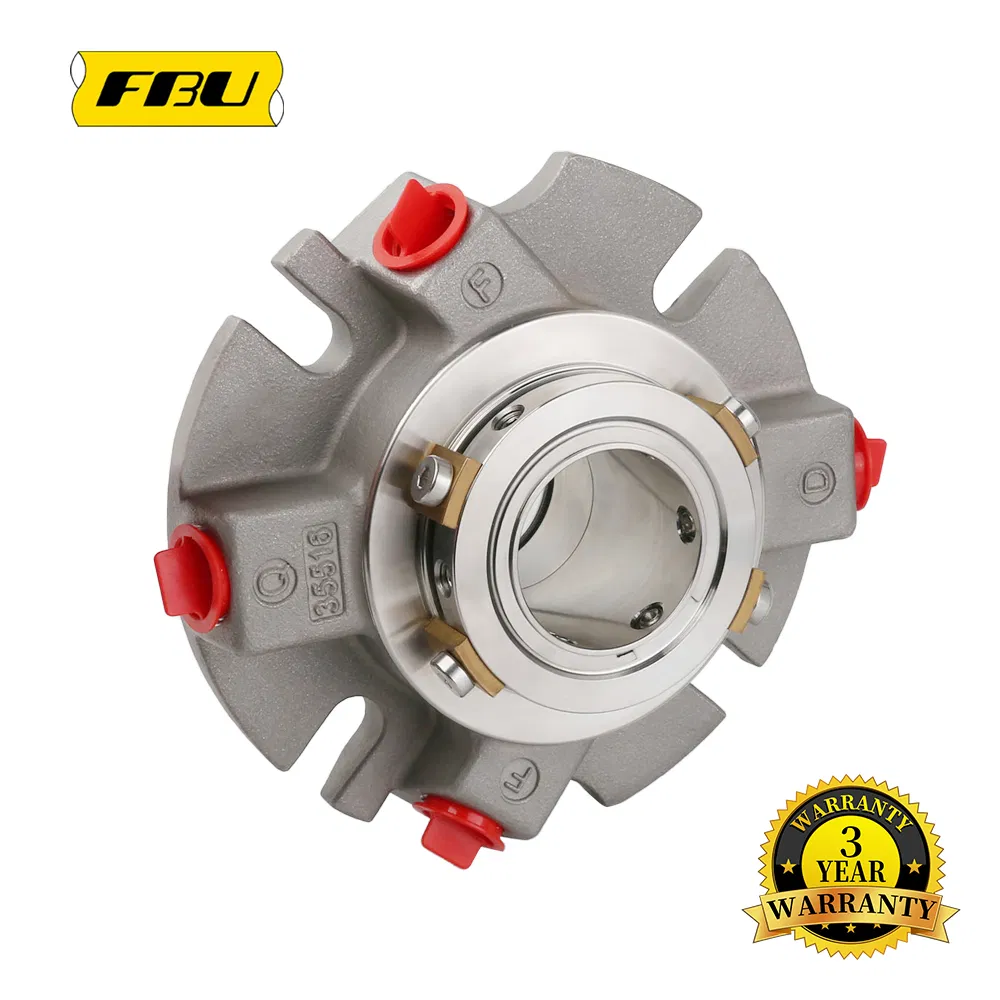

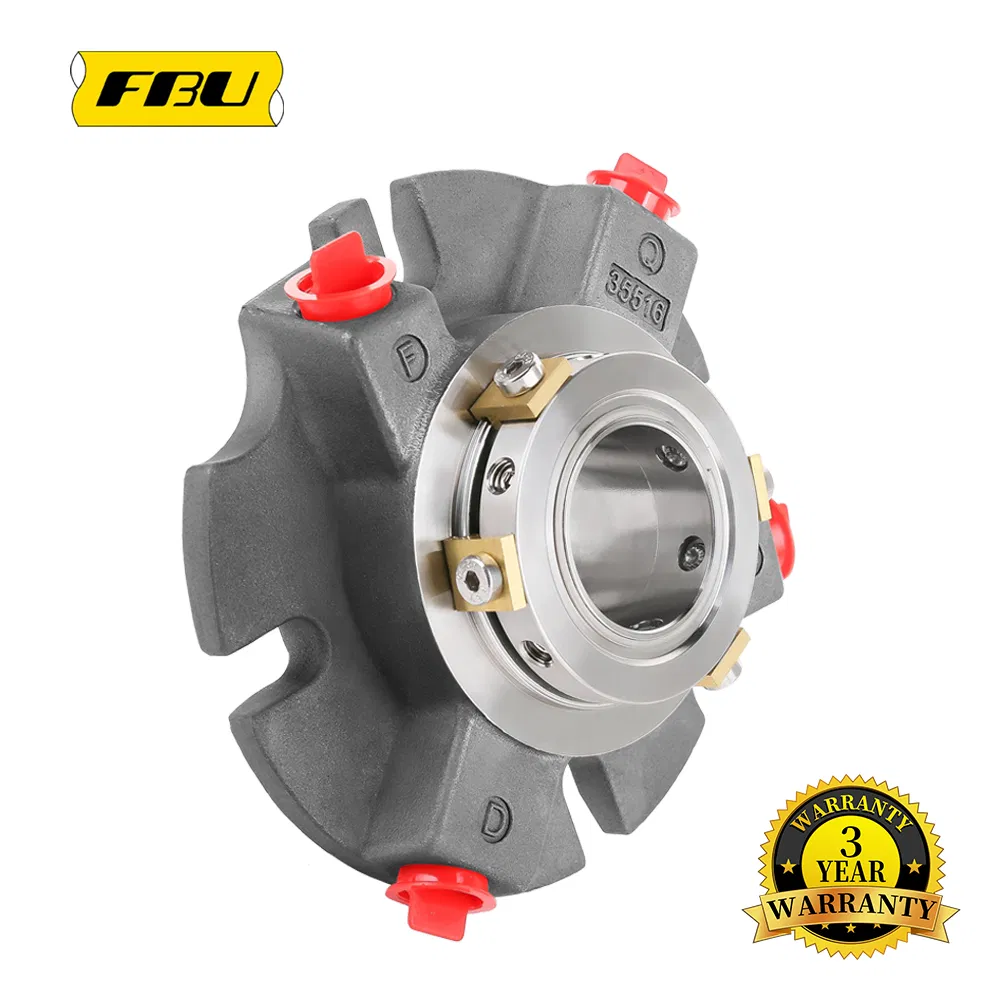

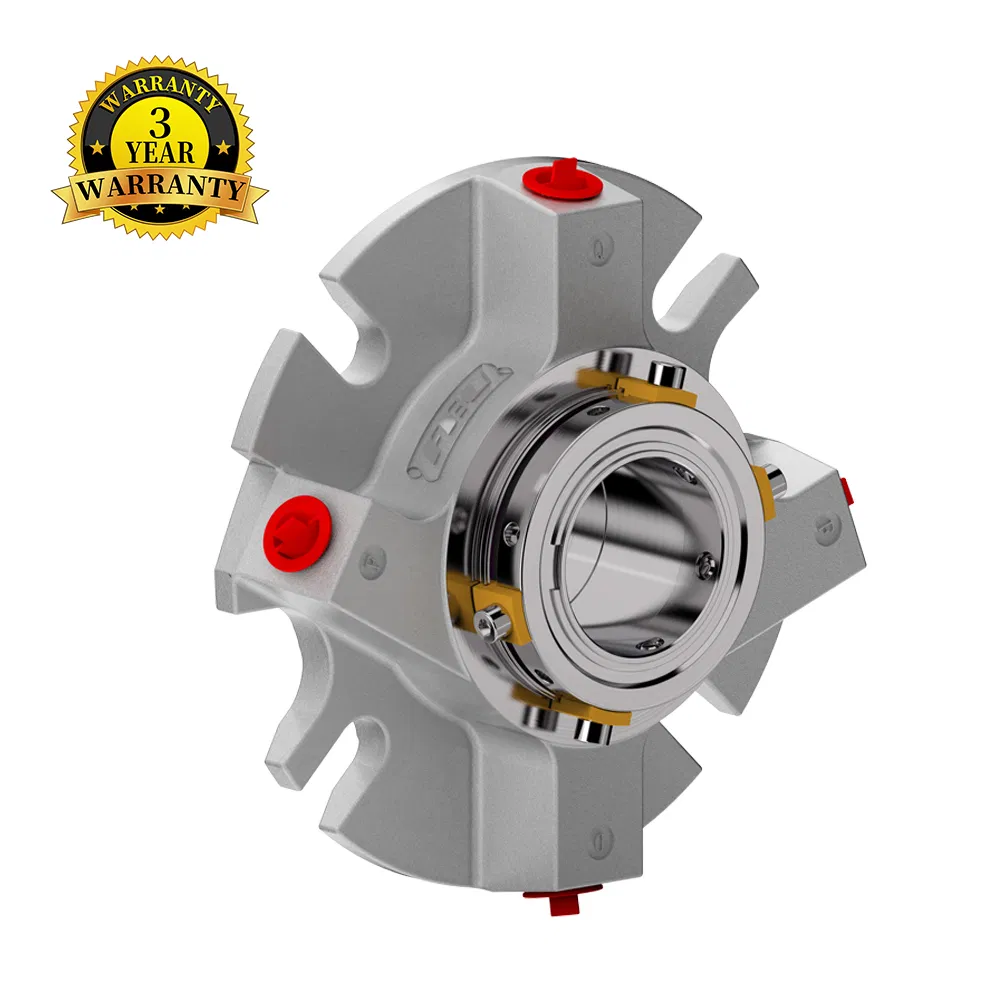

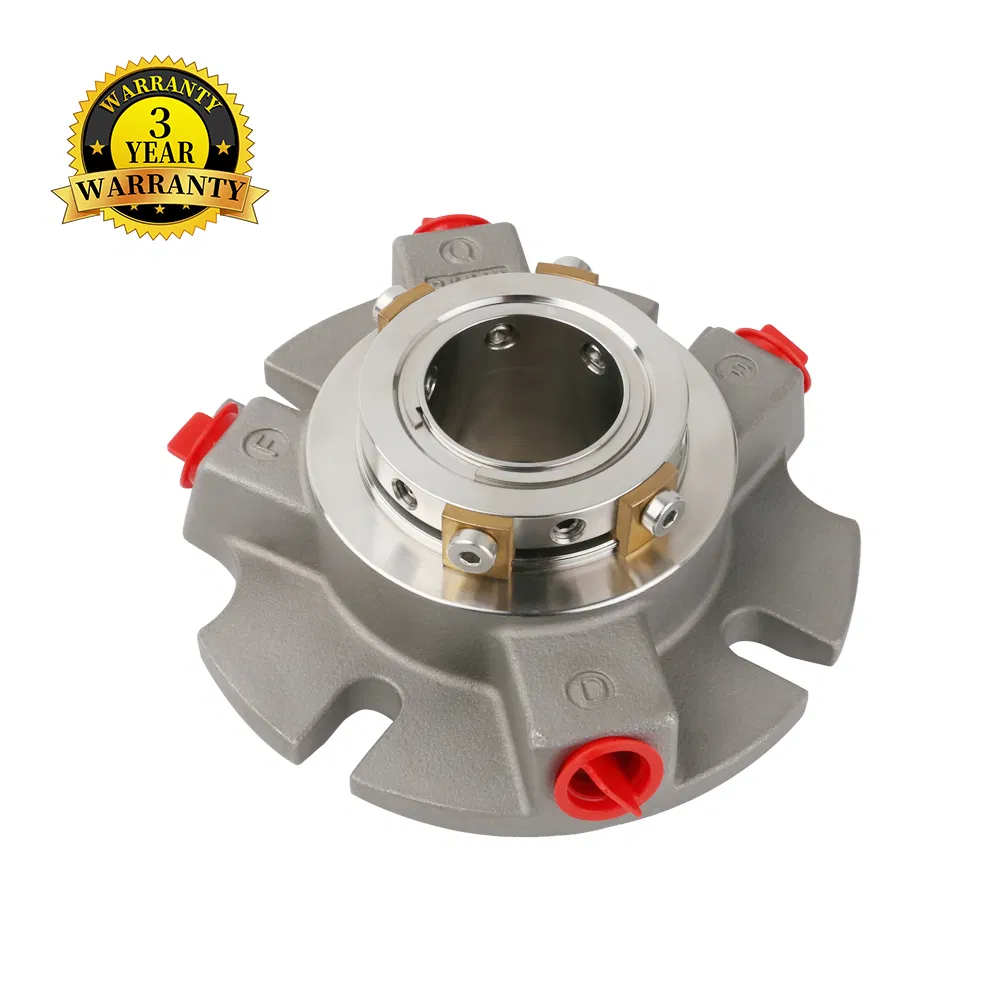

GSMA Standard Cartridge Mechanical Seal
Specifically designed for ANSI B73.1 Pumps, offering high performance and universal compatibility.
| Seal Face Materials | SSIC / TC / CARBON |
| Rubber Components | EPDM / FKM / Aflas / Kalrez |
| Springs | ALLOY 276 |
| Metal Parts | 316SS / DUPLEX / ALLOY 276 / 904L |
| Temperature Range | -20°C to +180°C |
| Pressure Limit | 0 - 25 Bar |
| Linear Speed | Up to 25 m/s |
| Media Compatibility | Acidic, alkaline, low percentage pulp, water, oil |
| NO. | Description | Material | NO. | Description | Material |
|---|---|---|---|---|---|
| 1 | Shaft Sleeve | 316SS | 9 | Spring Plate | 316SS |
| 2 | O-Ring | EPR/FKM/Kalrez | 10 | Clamp Ring | 316SS |
| 3 | Rotary Face | SSIC/TC | 11 | Spring | Alloy 276 |
| 4 | O-Ring | EPR/FKM/Kalrez | 12 | Drive Screw | 316SS |
| 5 | Stationary Face | Carbon/SSIC/TC | 13 | Gasket | AF1 |
| 6 | O-Ring | EPR/FKM/Kalrez | 14 | Setting Clip | Brass |

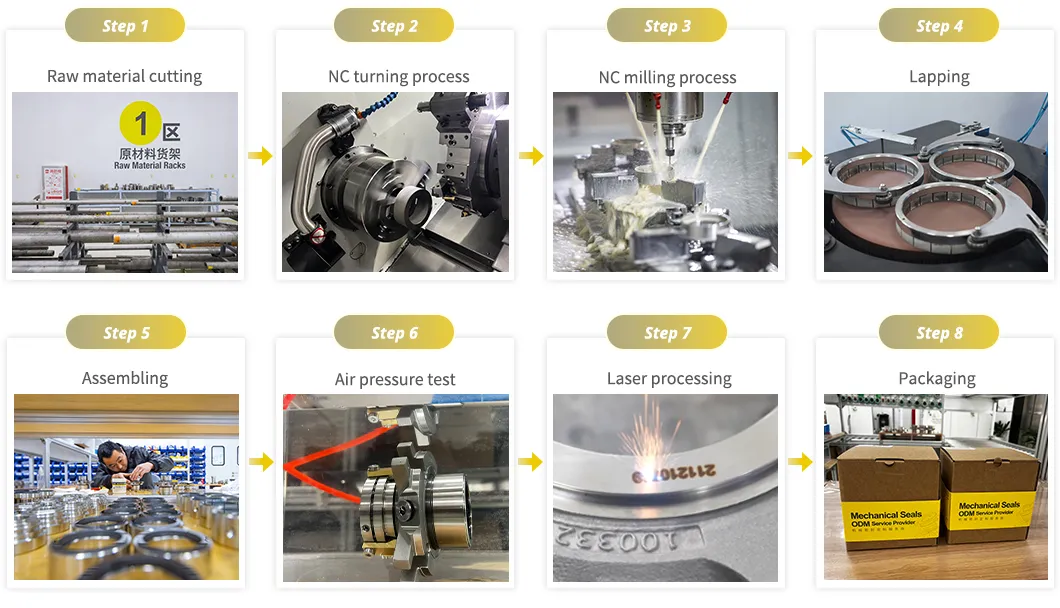

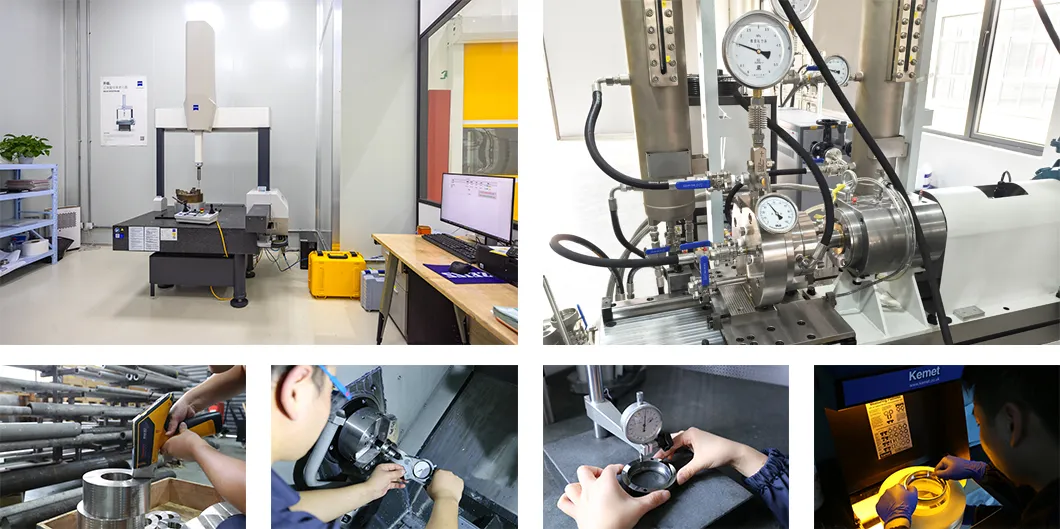

Our manufacturing facility utilizes advanced equipment to ensure precision and reliability for every seal produced. With high machining tolerances and automated processes, we deliver consistent quality for heavy-duty industrial applications.
Smart Factory Capabilities:
